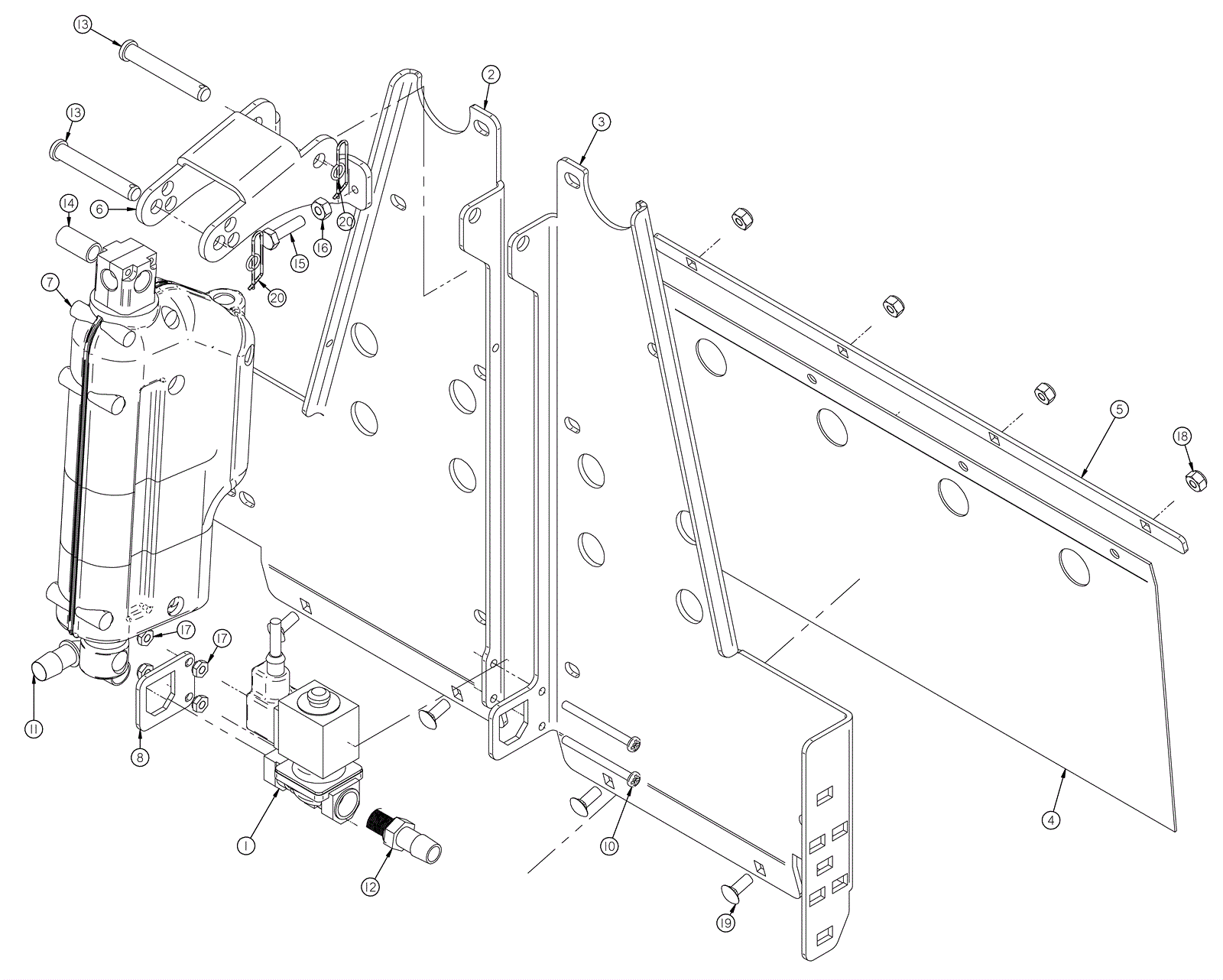

HERO Actuator and Frame Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6246 Solenoid,24V,3/8 inchNPTx3/8 inch $129.00 1 usually ships 3-11 days
2 202-6952 Bracket, Lift Arm Support, LH $89.70 1 usually ships 3-11 days
3 202-6953 Bracket, Lift Arm Support, RH $92.50 1 usually ships 3-11 days
4 202-6954 Curtain $25.60 1 usually ships 3-11 days
5 202-6955 Band, Curtain Frame $12.50 1 usually ships 3-11 days
6 202-6978 Arm, Actuator $50.60 1 usually ships 3-11 days
7 202-3376 24V actuator $300.10 1 usually ships 3-11 days
8 202-7049 Bracket, Valve $5.00 1 usually ships 3-11 days
N/S 202-5011 90 degree hose barb Call for price 1 usually ships 3-11 days
10 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel $1.67 2 ships same day
11 202-3236 Threaded barb $5.00 1 usually ships 3-11 days
12 202-3236 Threaded barb $5.00 1 usually ships 3-11 days
13 202-5193 Clevis pin 3/8 x 2 $5.00 2 usually ships 3-11 days
14 202-1951 Sleeve $5.00 1 usually ships 3-11 days
15 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 2 ships same day
16 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
17 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
19 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.00 4 usually ships 3-11 days
20 202-2036 Cotter pin $7.50 2 usually ships 3-11 days
