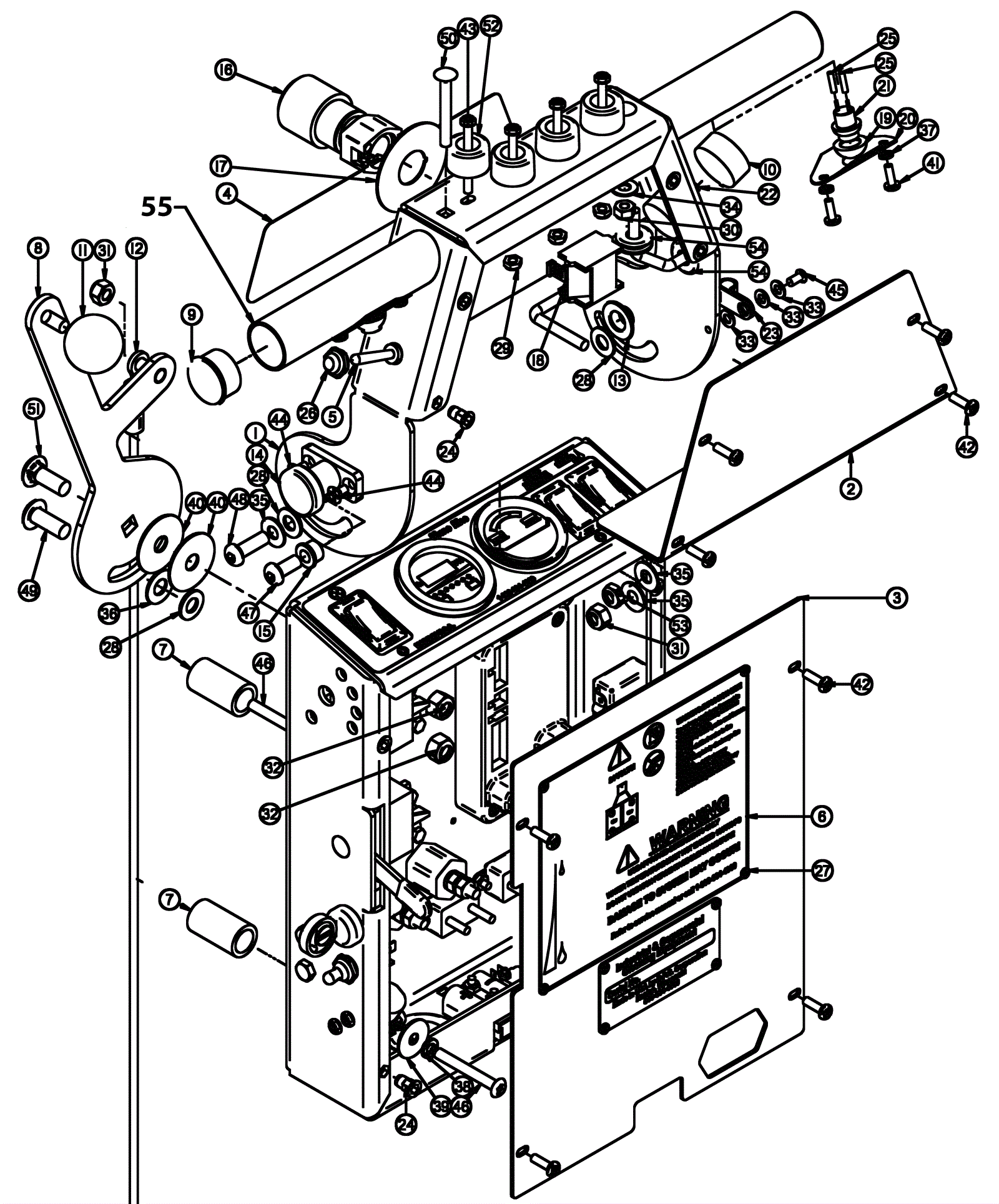

MINI Handlebar and Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5392 Adjustable handle bar holder $121.11 1 usually ships 1-5 days
2 202-5393 Handlebar cover $28.05 1 usually ships 1-5 days
3 202-5394 Control panel cover $46.20 1 usually ships 1-5 days
4 202-5395 Traction decal $10.78 1 usually ships 3-11 days
5 202-5396 Toggle switch $49.50 1 usually ships 3-11 days
6 202-5397 24V battery warning plate $13.09 1 usually ships 1-5 days
7 202-3468 Spacer $5.50 4 usually ships 3-11 days
8 202-4164 Squeegee lifting lever $55.33 1 usually ships 1-5 days
9 202-2252 End cap $5.50 1 usually ships 3-11 days
10 202-0989 Control knob with washer (red) $11.66 1 usually ships 3-11 days
11 202-0515 Solution flow control knob $14.63 1 usually ships 3-11 days
12 202-5398 Squeegee lift cable $34.54 1 usually ships 3-11 days
13 202-1181 Washer 1/2 flat bronze $5.50 2 usually ships 3-11 days
14 202-0719 Index plunger $70.07 1 usually ships 3-11 days
15 202-3312 Flanged bearing $7.04 2 usually ships 3-11 days
16 202-0826 Emergency shut-off switch $173.47 1 usually ships 3-11 days
17 202-0827 Emergency legend plate $43.34 1 usually ships 1-5 days
18 202-0825 Emergency contact $44.77 1 usually ships 3-11 days
19 202-3427 Button cover $17.27 2 usually ships 3-11 days
20 202-0869 Switch cover $21.56 2 usually ships 3-11 days
21 202-0879 Push button switch $51.15 2 usually ships 3-11 days
22 202-0535 Speed control potentiometer $89.76 1 usually ships 3-11 days
23 202-2431 P clamp $5.50 1 usually ships 1-5 days
24 202-2589 Nut 10-32 crimp hex $5.50 8 usually ships 1-5 days
25 202-2254 Heat shrink $6.71 4 usually ships 3-11 days
26 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 3-11 days
27 202-3315 Blind rivet $5.50 8 usually ships 1-5 days
28 202-2210 Washer 3/8 x 3/4 flat nylon $5.50 5 usually ships 3-11 days
29 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
30 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
31 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
32 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 2 ships same day
33 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
34 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
35 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
36 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
37 999-0150 Washer #8 medium split lock $0.99 4 ships same day
38 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
39 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
40 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 2 ships same day
41 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
42 202-2122 Screw 10-32 x 5/8 inch phillips pan head $5.50 5 usually ships 3-11 days
43 999-1818 Screw 10-32 x 2 pan head phillips stainless steel $1.80 4 ships same day
44 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel $0.99 2 ships same day
45 202-3197 Screw 10-32 x 3/8 inch button head socket stainless steel $5.50 1 usually ships 3-11 days
46 999-1852 Screw 1/4-20 x 2 button head socket stainless steel $1.66 4 ships same day
47 202-2372 Bolt 5/16-18 x 3/4 inch button head socket cap $5.50 2 usually ships 1-5 days
48 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 2 ships same day
49 999-1003 Bolt 3/8-16 x 1 button head socket cap stainless steel $2.06 1 ships same day
50 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 2 ships same day
51 202-2832 Bolt 3/8 - 16 x 1 carriage head stainless steel $5.50 1 usually ships 3-11 days
52 202-3275 Rubber bumper $5.50 4 usually ships 3-11 days
53 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 2 ships same day
54 202-3348 Rubber grommet $4.40 2 usually ships 3-11 days
55a 202-5447 Dual button handle bar $83.16 1 (traction drive) usually ships 1-5 days
55b 202-5448 No button assist handle bar $45.10 1 (pad assist) usually ships 1-5 days
