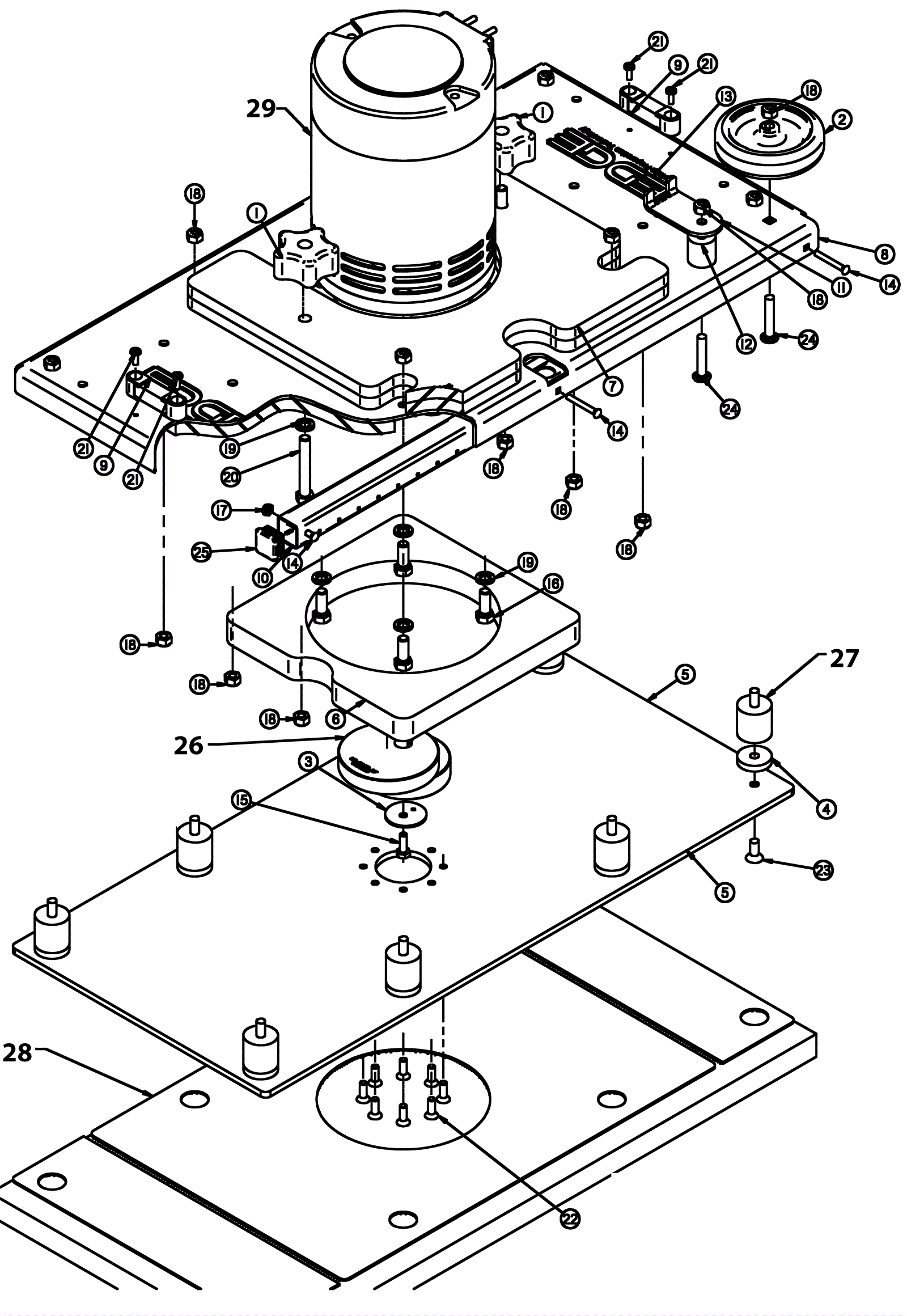

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-5078
|
Star knob |
$15.29
|
2 |
|
ships same day |
2a |
202-5079
|
4 inch wheel |
$10.23
|
2 |
(28 inch) (20 inch) |
usually ships 8-13 days |
2b |
202-5405
|
3 inch wheel |
$9.24
|
2 |
(24 inch) |
usually ships 8-13 days |
3 |
202-5084
|
Crush washer |
$7.37
|
1 |
|
usually ships 8-13 days |
4 |
202-5085
|
20 and 28 inch spacer |
$5.50
|
8 |
|
usually ships 8-13 days |
5a |
202-5087
|
28 inch aluminum pad driver |
$287.98
|
1 |
(28 inch) |
usually ships 8-13 days |
5b |
202-5528
|
24 inch aluminum pad driver |
$268.84
|
1 |
(24 inch) |
usually ships 8-13 days |
5c |
202-5194
|
20 inch aluminum pad driver |
$182.60
|
1 |
(20 inch) |
usually ships 8-13 days |
6 |
202-5202
|
1 inch bearing gasket |
$42.79
|
1 |
|
usually ships 8-13 days |
7 |
202-5095
|
15 pound top weight |
$343.53
|
2 |
|
usually ships 8-13 days |
8a |
202-5096
|
28 inch square scrub deck |
$733.18
|
1 |
(28 inch) |
usually ships 8-13 days |
8b |
202-5529
|
24 inch square deck |
$890.78
|
1 |
(24 inch) |
usually ships 8-13 days |
8c |
202-5526
|
20 inch square deck |
$257.51
|
1 |
(20 inch) |
usually ships 1-5 days |
9 |
202-5098
|
2 inch bolt on level |
$5.50
|
2 |
|
usually ships 8-13 days |
10a |
202-5093
|
28 inch solution feed tube |
$114.07
|
1 |
(28 inch) |
usually ships 8-13 days |
10b |
202-5530
|
24 inch feed tube kit |
$105.49
|
1 |
(24 inch) |
usually ships 8-13 days |
10c |
202-5527
|
20 inch feed tube kit |
$84.81
|
1 |
(20 inch) |
usually ships 8-13 days |
11 |
202-5203
|
Wheel bracket |
$13.09
|
2 |
|
usually ships 8-13 days |
12 |
202-0582
|
Stand-off |
$13.31
|
2 |
(28 inch) (24 inch) |
usually ships 8-13 days |
13 |
202-5204
|
5 inch EDGE decal |
$13.22
|
3 |
|
usually ships 8-13 days |
14 |
202-5205
|
Bolt #10-32 x 1 1/2 inch carriage stainless steel |
$5.50
|
3 |
|
usually ships 8-13 days |
15 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
1 |
|
usually ships 16-20 days |
16 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
4 |
|
ships same day |
17 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
3 |
|
ships same day |
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
18 |
|
ships same day |
19 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.39
|
6 |
|
ships same day |
21 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
$0.99
|
4 |
|
ships same day |
22 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
$0.99
|
8 |
|
ships same day |
23 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
$5.50
|
8 |
|
usually ships 8-13 days |
24 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
$5.50
|
4 |
|
usually ships 8-13 days |
25 |
202-5471
|
Square plug |
$5.50
|
2 |
(28 inch) (24 inch) |
usually ships 8-13 days |
26a |
202-5109
|
28 inch eccentric assembly |
$261.69
|
1 |
(28 inch) |
usually ships 8-13 days |
26b |
202-5444
|
20 and 24 inch isolator kit (pkg of 4) |
$116.82
|
1 |
(24 inch) (20 inch) |
usually ships 8-13 days |
27a |
202-5107
|
28 inch isolator kit (pkg of 8) |
$150.59
|
1 |
(28 inch) |
usually ships 8-13 days |
27b |
202-5108
|
20 inch eccentric assembly - SEE NOTE - NOT AVAILABLE |
$198.55
|
1 |
(24 inch) (20 inch) |
usually ships 8-13 days |
28 |
202-5089
|
Mighty-Lok II grip face pad holder set (brown) |
$160.60
|
1 |
|
ships same day |
29a |
202-5531
|
24V 1 HP motor |
$2,292.84
|
1 |
|
usually ships 8-13 days |
29b |
202-5354
|
24V 1.2 HP motor |
$2,239.05
|
1 |
(optional) |
usually ships 8-13 days |
