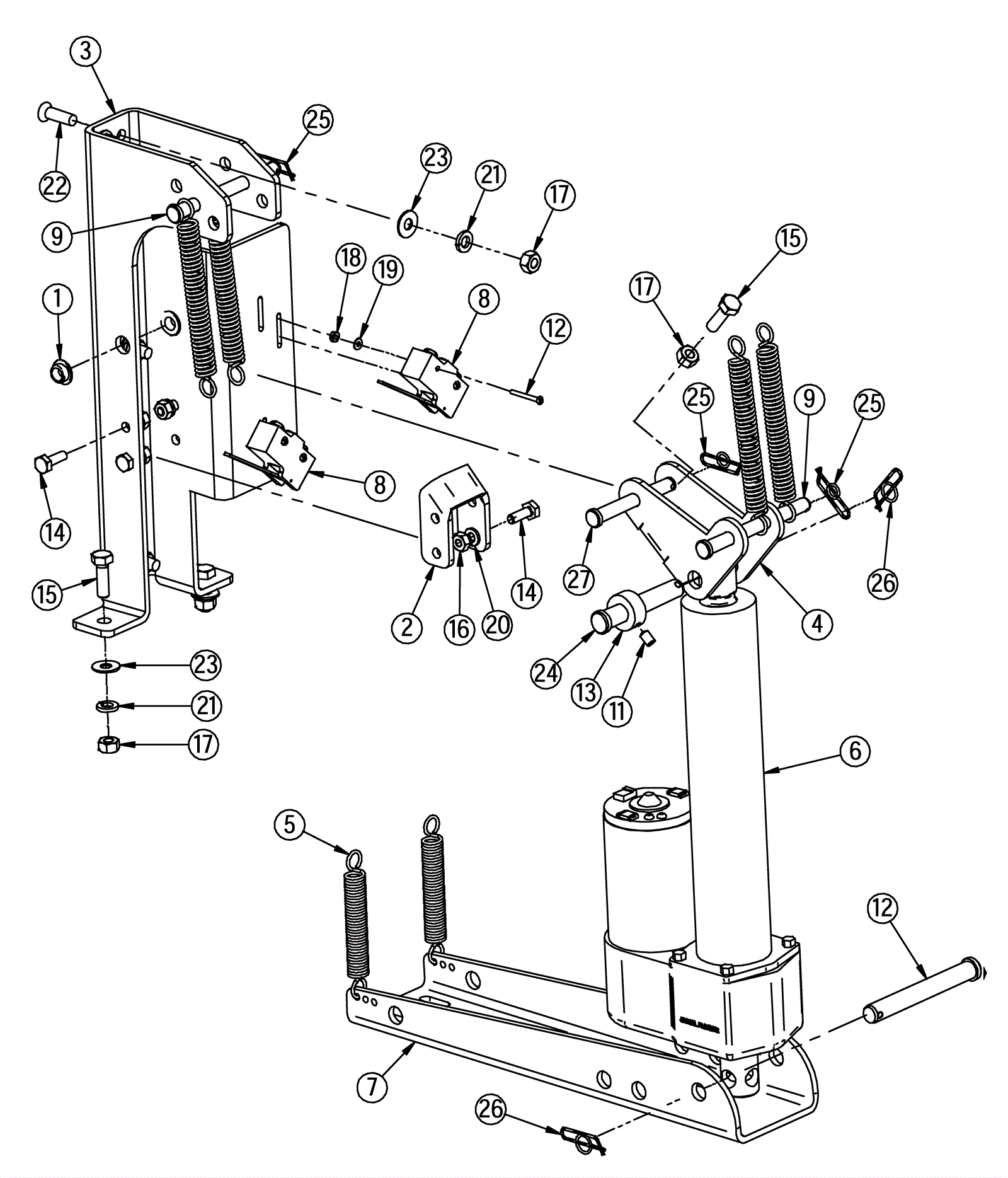

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1239
|
Flanged bearing |
2 |
|
|
2 |
202-4060
|
Actuator mounting bracket |
1 |
|
|
3 |
202-4061
|
Actuator anchor (OBSOLETE) |
1 |
|
|
4 |
202-4062
|
Actuator arm |
1 |
|
|
5 |
202-2208
|
Compression spring |
6 |
|
|
6 |
202-2320
|
Actuator long barrel (OBSOLETE) |
1 |
|
|
7 |
202-2497
|
Scrub deck lifting bracket |
1 |
|
|
8 |
202-0192
|
Lift limit switch |
2 |
|
|
9 |
202-4063
|
Clevis pin |
2 |
|
|
10 |
202-2432
|
Clevis pin |
1 |
|
|
11 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
12 |
999-0983
|
Screw 4-40 x 1 pan head phillips zinc plated |
4 |
|
|
13 |
202-3222
|
Shaft collar with set screw |
1 |
|
|
14 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
15 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
3 |
|
|
16 |
999-0609
|
Nut 1/4-20 hex stainless steel |
4 |
|
|
17 |
999-0593
|
Nut 5/16-18 hex stainless steel |
9 |
|
|
18 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
19 |
202-2461
|
Washer 4 x 5/16 flat stainless steel |
4 |
|
|
20 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
21 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
8 |
|
|
22 |
999-0734
|
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
6 |
|
|
23 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
8 |
|
|
24 |
202-5182
|
Clevis pin |
1 |
|
|
25 |
202-2036
|
Cotter pin |
4 |
|
|
26 |
202-2059
|
Cotter ring |
2 |
|
|
27 |
202-2572
|
Clevis pin |
1 |
|
|
