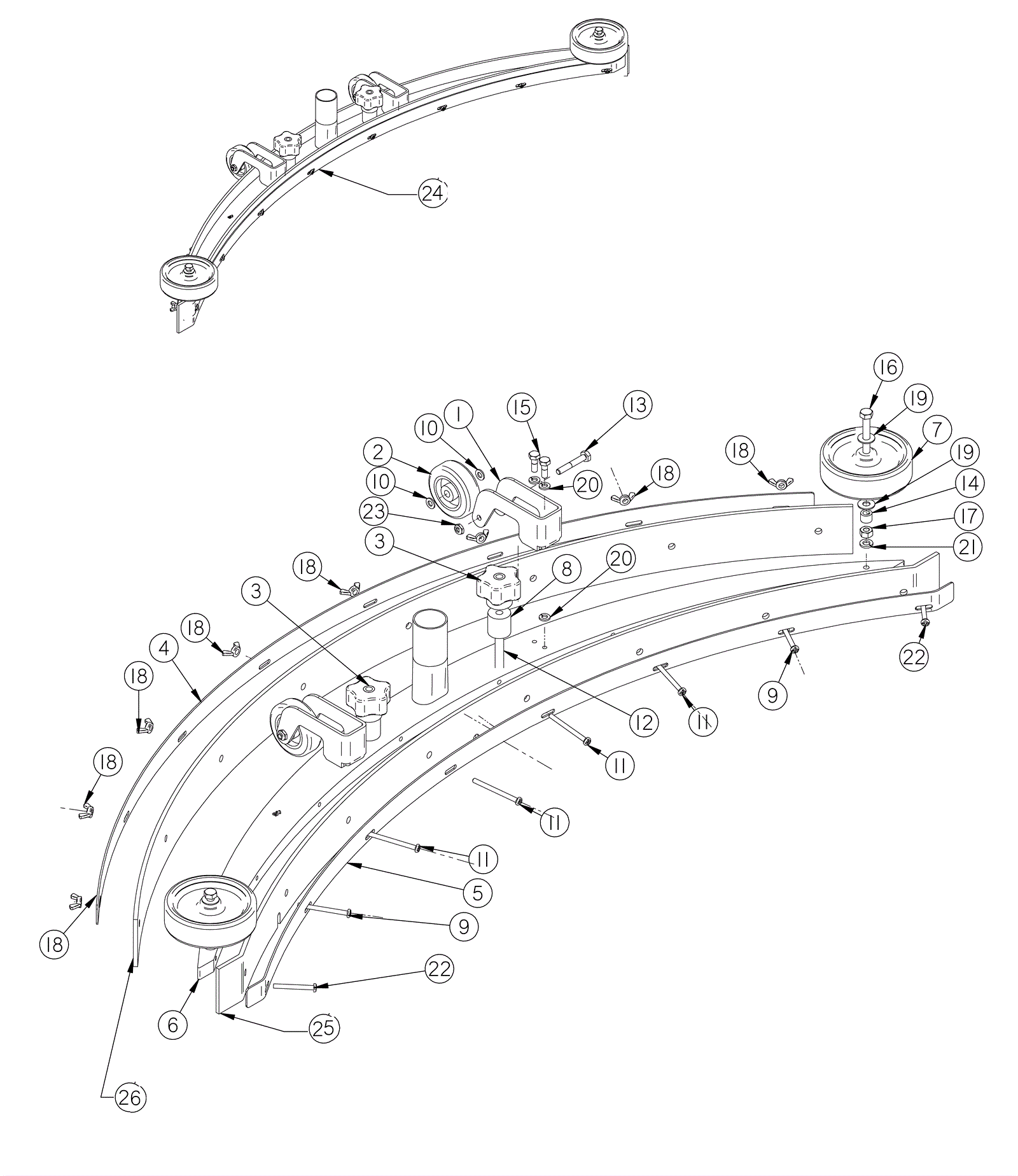

| # | Part | Description |
Req | Notes | Availability |
|---|
1b |
991-2412
|
Squeegee trail mounting bracket |
2 |
(NON-OEM) |
|
1a |
202-0581
|
Squeegee trail mount |
2 |
|
|
2 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
2 |
|
|
3 |
202-1999
|
Star knob |
2 |
|
|
4 |
202-1857
|
45 inch rear squeegee band |
1 |
|
|
5 |
202-1856
|
45 inch front squeegee band |
1 |
|
|
6 |
202-1855
|
45 inch squeegee weldment |
1 |
|
|
7 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
2 |
|
|
8 |
202-0582
|
Stand-off |
2 |
|
|
9 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
2 |
|
|
10 |
202-1197
|
Washer 17/64 x 1/2 x 5/8 flat nylon |
4 |
|
|
11 |
999-0860
|
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
4 |
|
|
12 |
202-0806
|
Stud |
2 |
|
|
13 |
999-0993
|
Screw 1/4-20 x 1 5/8 hex head stainless steel |
2 |
|
|
14 |
202-0807
|
Shaft collar |
2 |
|
|
15 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
16 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
|
17 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
18 |
999-0058
|
Nut 10-32 wing zinc plated |
8 |
|
|
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
20 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
21 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
22 |
999-0868
|
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
23 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
24 |
202-1876
|
45 inch squeegee assembly |
1 |
(includes 25a and 26a) |
|
25a |
202-2289
|
Squeegee blade 45 inch linatex front (red) |
1 |
|
|
25b |
202-1803
|
Squeegee blade 45 inch gum rubber front |
1 |
|
|
25c |
202-4194
|
Squeegee blade 45 inch urethane front |
1 |
|
|
26a |
202-2288
|
Squeegee blade 45 inch linatex rear (red) |
1 |
|
|
26b |
202-0002
|
Squeegee blade 45 inch gum rubber rear |
1 |
|
|
26c |
202-4195
|
Squeegee blade 45 inch urethane rear |
1 |
|
|
