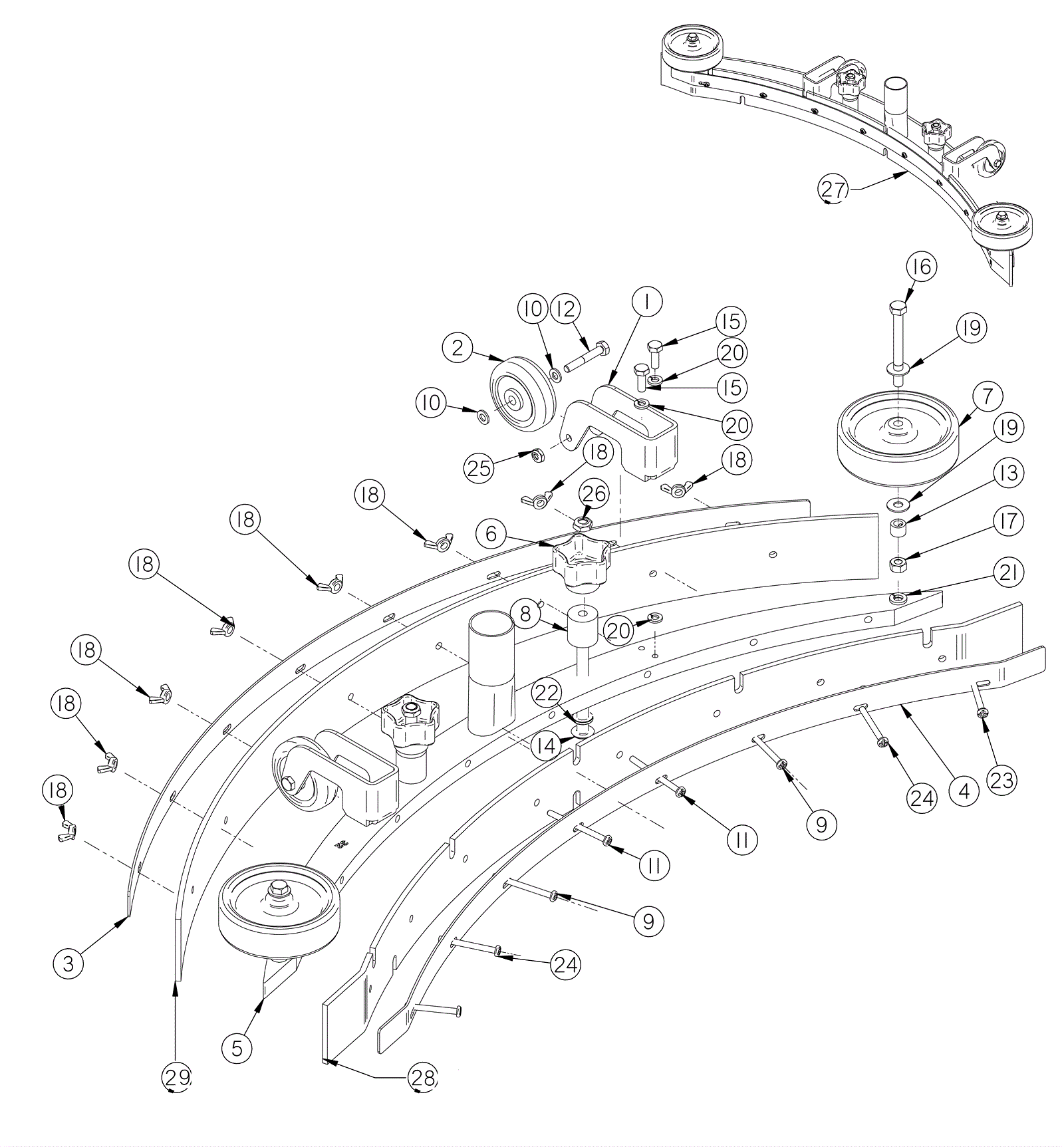

| # | Part | Description |
Req | Notes | Availability |
|---|
1b |
991-2412
|
Squeegee trail mounting bracket |
2 |
(NON-OEM) |
|
1a |
202-0581
|
Squeegee trail mount |
2 |
|
|
2 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
2 |
|
|
3 |
202-0802
|
32 inch rear squeegee band |
1 |
|
|
4 |
202-1742
|
32 inch front squeegee band |
1 |
|
|
5a |
202-1743
|
32 inch squeegee weldment |
1 |
|
|
5b |
202-0795
|
35 inch squeegee weldment |
1 |
|
|
6 |
202-1999
|
Star knob |
2 |
|
|
7 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
2 |
|
|
8 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
2 |
|
|
9 |
202-0582
|
Stand-off |
2 |
|
|
10 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
4 |
|
|
11 |
999-0860
|
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
2 |
|
|
12 |
999-0993
|
Screw 1/4-20 x 1 5/8 hex head stainless steel |
2 |
|
|
13 |
202-0807
|
Shaft collar |
2 |
|
|
14 |
999-1273
|
Screw 3/8-16 x 3 1/2 button head socket stainless steel |
2 |
|
|
15 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
16 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
|
17 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
18 |
999-0058
|
Nut 10-32 wing zinc plated |
8 |
|
|
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
20 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
21 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
22 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
23 |
999-0868
|
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
24 |
999-1818
|
Screw 10-32 x 2 pan head phillips stainless steel |
2 |
|
|
25 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
26 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
2 |
|
|
27a |
202-1297
|
32 inch squeegee assembly |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) (includes 28a and 29a) |
|
27b |
202-1359
|
35 inch squeegee assembly |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) (includes 28d and 29d) |
|
28a |
202-1714
|
Squeegee blade 32 inch linatex front |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) |
|
28b |
202-0796
|
Squeegee blade 32 inch gum rubber front |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) |
|
28c |
202-4192
|
Squeegee blade 32 inch urethane front |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) |
|
28d |
202-1792
|
Squeegee blade 35 inch linatex front |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
28e |
994-1006
|
Squeegee blade 35 inch gum rubber front |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
28f |
202-0797
|
Squeegee blade 35 inch gum rubber front |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
28g |
202-4170
|
Squeegee blade 35 inch front urethane (blue) |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
29a |
202-1712
|
Squeegee blade 32 inch linatex rear |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
29b |
202-0800
|
Squeegee blade 32 inch gum rubber rear |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
29c |
202-4193
|
Squeegee blade 32 inch urethane rear (blue) |
1 |
(27 inch CYLINDRICAL) (30 inch DISK) |
|
29d |
202-1790
|
Squeegee blade 35 inch linatex rear (red) |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) |
|
29e |
202-0801
|
Squeegee blade 35 inch gum rubber rear |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) |
|
29f |
202-4171
|
Squeegee blade 35 inch rear urethane |
1 |
(24 inch CYLINDRICAL) (26 inch DISK) |
|
