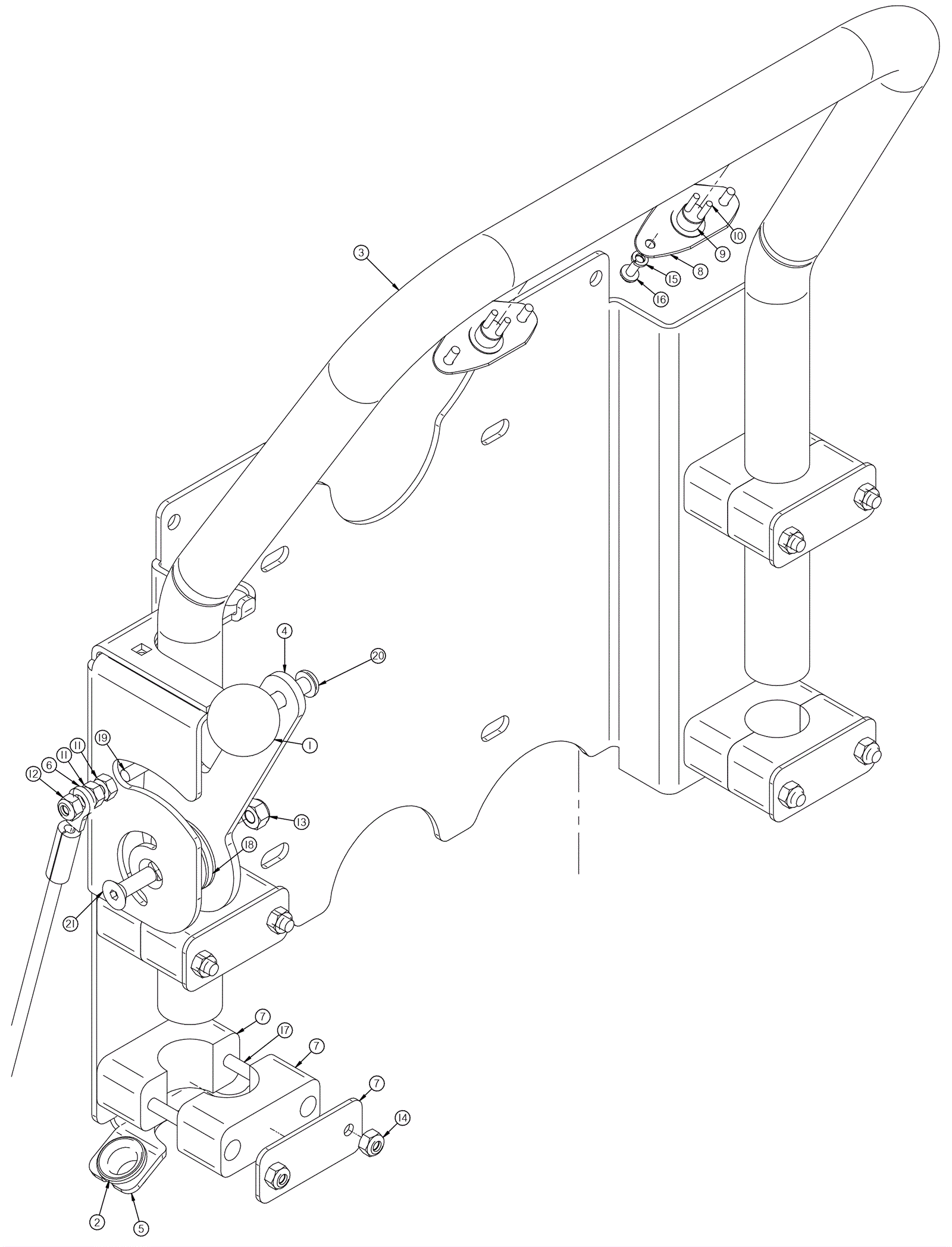

WD17 Handle Bar Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0515 Solution flow control knob $14.63 1 usually ships 3-11 days
2 202-9899 PVC cable guide $12.13 1 usually ships 3-11 days
3 N/A Not available Call for price 1 (handle bar) usually ships 3-26 days
4 202-9896 Lever $46.31 1 usually ships 3-11 days
5 N/A Not available Call for price 1 (lever bracket) usually ships 3-26 days
6 202-9845 23-1/4 squeegee lift cable (black) $34.25 1 usually ships 3-11 days
7 202-5307 Handlebar mounting bracket $28.82 4 usually ships 3-11 days
8 202-0869 Switch cover $21.56 2 usually ships 3-11 days
9 202-0879 Push button switch $51.15 2 usually ships 3-11 days
10 202-2254 Heat shrink $6.71 4 usually ships 3-11 days
11 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
12 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
13 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
15 999-0150 Washer #8 medium split lock $0.99 4 ships same day
16 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
17 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 8 usually ships 1-5 days
18 999-9241 Washer 1 1/2 x 25/64 x 39/64 flat nylon $4.49 2 usually ships 11-24 days
19 999-9242 Screw 1/4-20 x 1 1/4 button head socket cap $1.47 1 usually ships 11-24 days
20 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 1 ships same day
21 999-9243 Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) $2.73 1 usually ships 11-24 days
