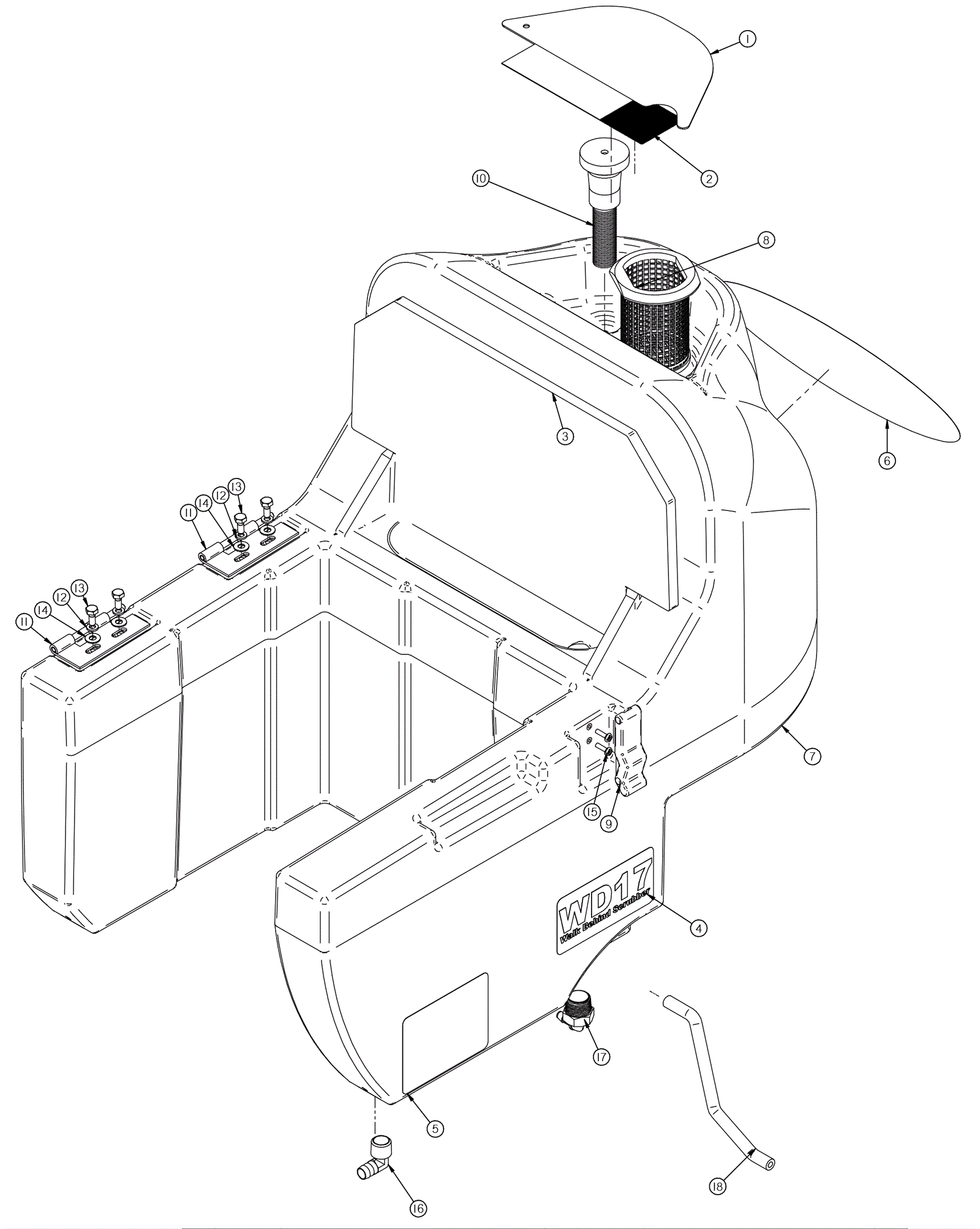

WD17 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (solution fill curtian) usually ships 30-32 days
2 202-9869 Solution fill screen $16.94 1 usually ships 1-5 days
3 202-9871 Vacuum motor insulation $26.53 1 usually ships 1-5 days
4 N/A Not available Call for price 2 (decal) usually ships 30-32 days
5 N/A Not available Call for price 2 (decal) usually ships 30-32 days
6 N/A Not available Call for price 1 (decal) usually ships 30-32 days
7 N/A Not available Call for price 1 (solution tank) usually ships 30-32 days
8 202-9876 Strainer screen (blue) $40.37 1 usually ships 1-5 days
9 202-1487 Latch $25.19 1 usually ships 3-10 days
10 202-4200 Fill hose $60.51 1 usually ships 3-10 days
11 202-5648 4 inch hinge stainless steel $22.60 2 usually ships 3-10 days
12 999-1049 Washer 1/4 split lock zinc plated $0.90 4 ships same day
13 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
14 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
15 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
16 202-3440 Barbed elbow $21.20 1 usually ships 3-10 days
17 202-9877 Elbow $6.71 1 usually ships 1-5 days
18 202-4225 Hose $80.20 1 usually ships 3-10 days
