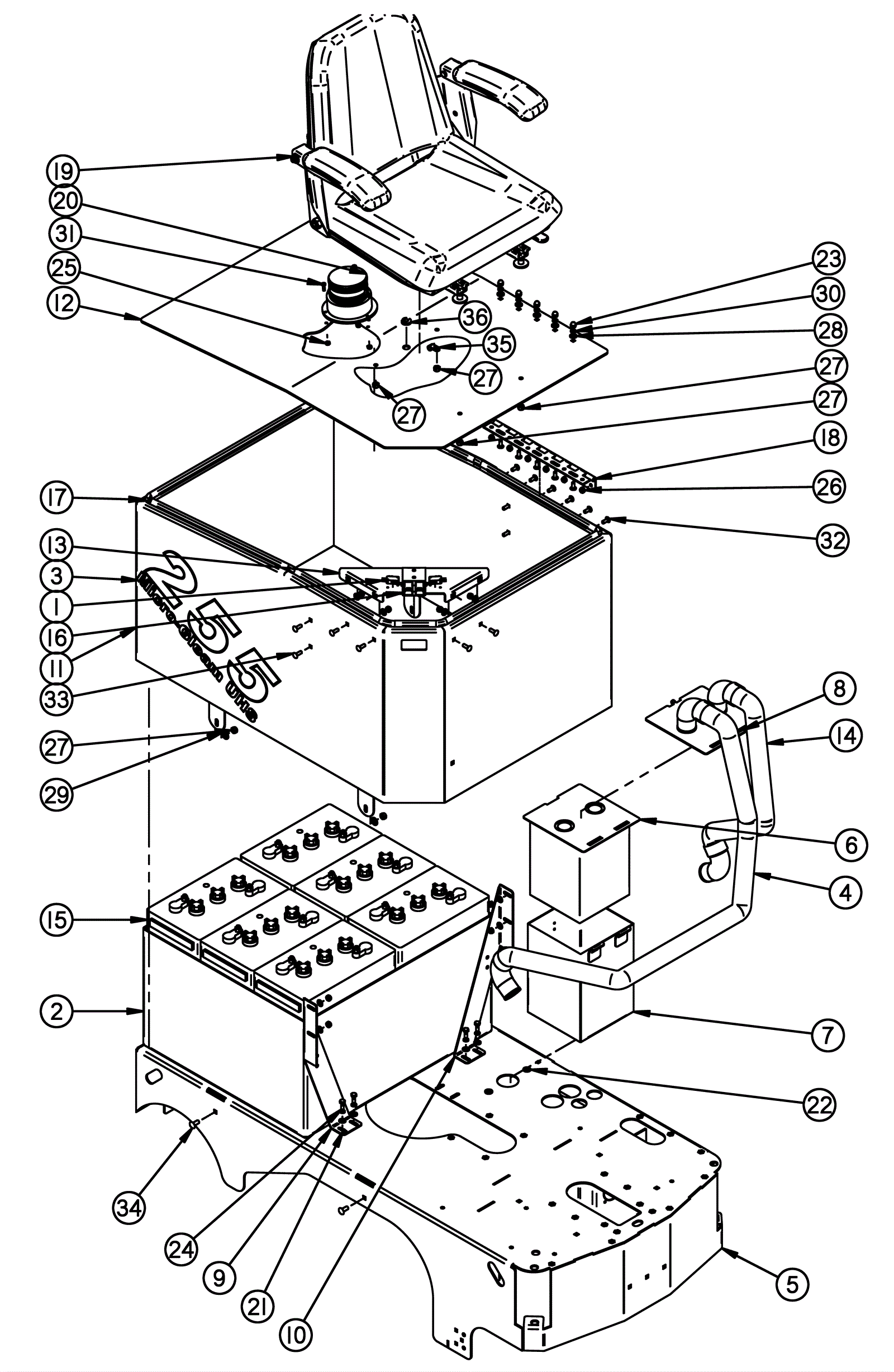

255-TXL Batteries, Seat, and Filter Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0721 Microswitch $16.39 2 ships same day
2 202-5151 Battery box $101.09 1 usually ships 8-13 days
3 202-6863 Decal, 255 $78.43 2 usually ships 8-13 days
4 202-3001 Vacuum hose $63.14 1 usually ships 8-13 days
5 202-6873 Main Frame $2,046.00 1 usually ships 8-13 days
6 202-2959 Dust bags $59.62 1 usually ships 8-13 days
7 202-5293 Vacuum box $341.88 1 usually ships 1-5 days
8 202-5189 Vacuum box lid $126.06 1 usually ships 1-5 days
9 202-6876 Support,Frame,RH $130.68 1 usually ships 8-13 days
10 202-6877 Support,Frame,LH $130.68 1 usually ships 8-13 days
11 202-6887 Battery Box,Granite $683.76 1 usually ships 8-13 days
12 202-6888 Lid,Battery Box,Granite $954.65 1 usually ships 8-13 days
14 202-2901 Vacuum hose with curved hose cuffs $53.68 1 usually ships 8-13 days
15 162-0019 6V 390Ah wet battery (SNSR) $522.50 6 ships same day
16 202-3287 Battery connector housing $30.69 1 usually ships 1-5 days
17 202-2385 67 inch push-on rubber gasket $33.88 1 usually ships 8-13 days
18 202-2363 Hinge $69.52 1 usually ships 1-5 days
19 202-0081 Seat with switch, cover, locking track and mounting $770.22 1 usually ships 8-13 days
20 202-0383 Strobe light $238.81 1 usually ships 8-13 days
21 202-5284 Nut 1/4-20 hex crimp long $5.50 4 usually ships 1-5 days
22 202-5258 Nut 5/16-18 hex crimp long $5.50 2 usually ships 1-5 days
23 999-0429 Nut 1/4-20 acorn nickel plated $0.99 5 ships same day
24 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 usually ships 16-20 days
25 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 14 ships same day
27 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 8 ships same day
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 17 ships same day
29 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
30 999-0632 Washer 1/4 split lock stainless steel $0.99 9 ships same day
31 202-2122 Screw 10-32 x 5/8 inch phillips pan head $5.50 3 usually ships 8-13 days
32 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 11 usually ships 8-13 days
33 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.23 8 ships same day
34 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
36 202-3348 Rubber grommet $4.40 1 usually ships 8-13 days
