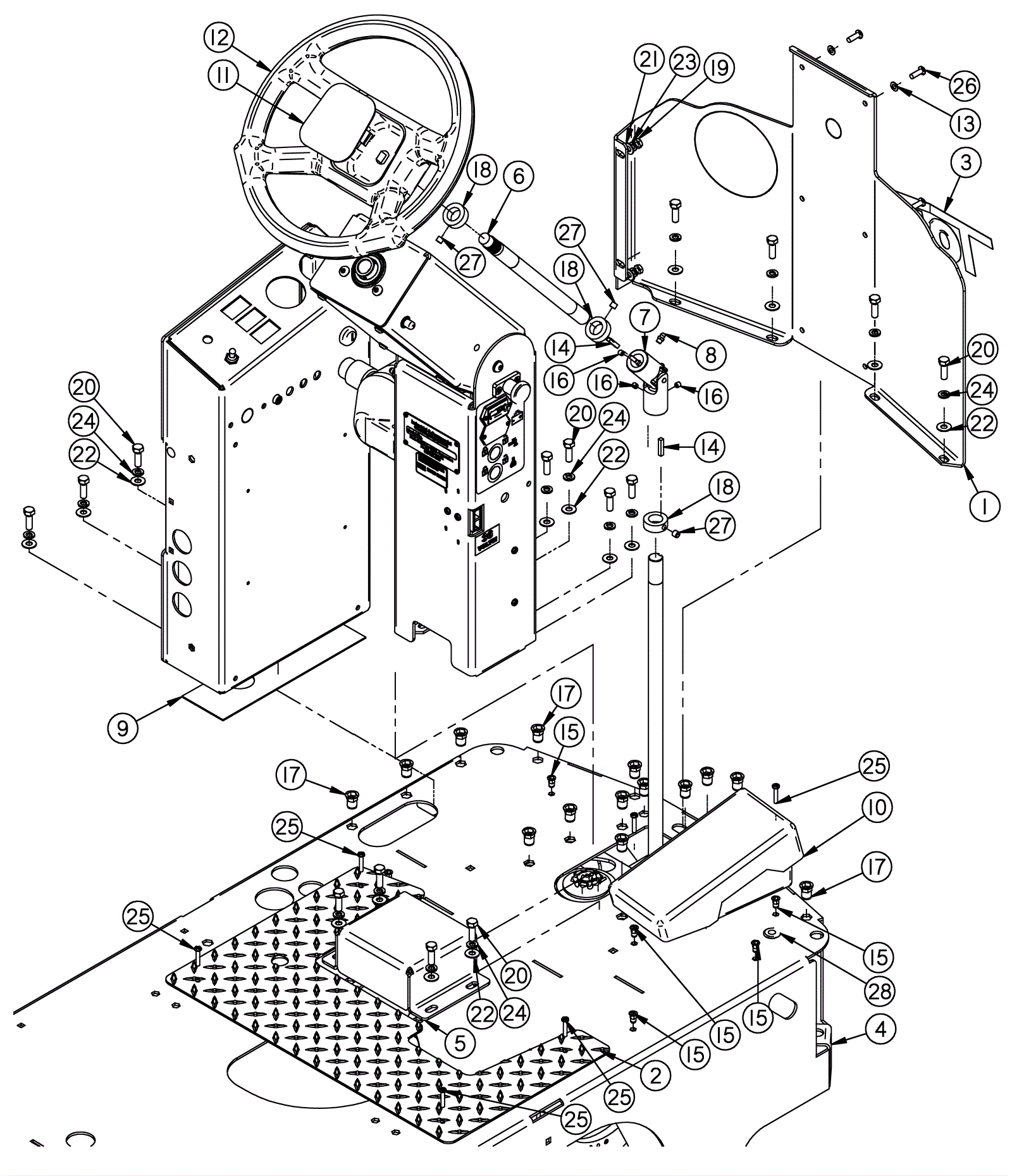

255-TXL Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2016 Front apron $142.50 1 usually ships 1-5 days
2 202-2018 Non skid floor plate $162.60 1 usually ships 1-5 days
3 202-3322 Tomcat decal $17.00 1 usually ships 1-5 days
4 202-6873 Main Frame $1,788.40 1 usually ships 3-11 days
5 202-0717 Drive cover $39.90 1 usually ships 1-5 days
6 202-0761 Upper steering shaft $57.30 1 usually ships 1-5 days
7 202-0760 U-joint $119.30 1 usually ships 3-11 days
8 202-2404 Fitting $5.00 1 usually ships 1-5 days
9 202-5257 Central command dust cover $5.00 1 usually ships 1-5 days
10 202-0362 Foot pedal assembly (includes potentiometer) $597.44 1 usually ships 3-11 days
11 202-0773 Steering cover $13.70 1 usually ships 1-5 days
12 202-0772 Steering wheel $134.30 1 usually ships 1-5 days
13 202-1196 Washer 17/64 x 21/64 nylon flat $5.00 6 ships same day
14 202-0847 Square keyway $5.00 2 usually ships 3-11 days
15 202-2589 Nut 10-32 crimp hex $5.00 6 usually ships 1-5 days
16 202-3154 Screw 1/4-20 x 1/4 set $5.00 3 ships same day
17 202-5258 Nut 5/16-18 hex crimp long $5.00 15 usually ships 1-5 days
18 202-2216 Shaft collar with set screw $5.00 3 usually ships 3-11 days
19 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
20 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 15 ships same day
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 15 ships same day
23 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
24 999-0553 Washer 5/16 medium split lock stainless steel $0.99 15 ships same day
25 999-0986 Screw 10-32 x 1 round pan head stainless steel $5.50 6 ships same day
26 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 6 ships same day
27 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 3 ships same day
28 202-3348 Rubber grommet $4.00 1 usually ships 3-11 days
