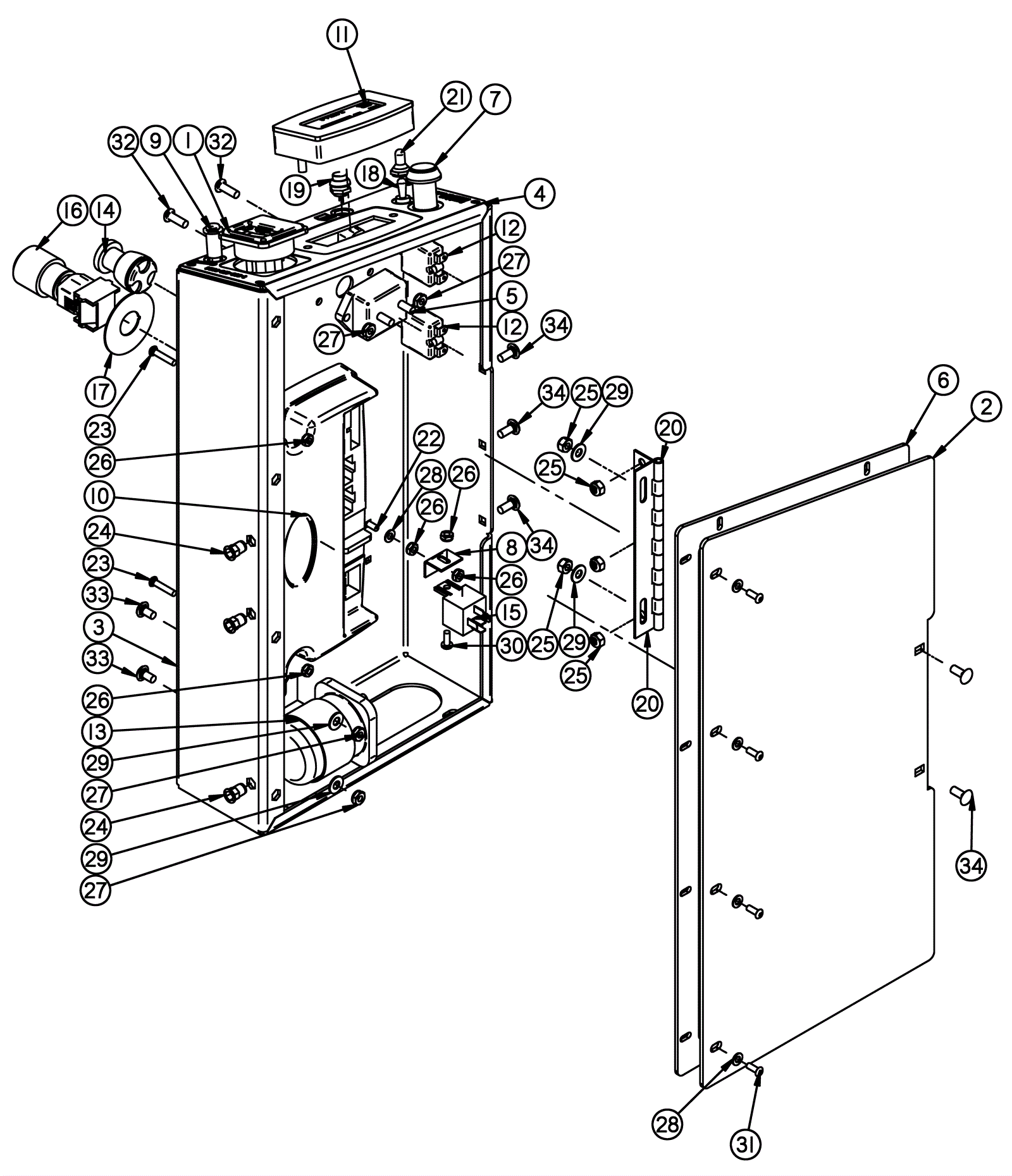

255-TXL Central Command Assembly - Old Style

#PartDescriptionPriceReqNotesAvailability
1 202-2573 0 to 100 Amp gauge $77.00 1 ships same day
2 202-2574 Access cover (granite) $139.48 1 usually ships 1-5 days
3 202-2575 Control panel $252.56 1 usually ships 1-5 days
4 202-2576 Control panel top plate $20.79 1 usually ships 1-5 days
5 202-2577 80 amp breaker $278.85 1 usually ships 8-12 days
6 202-0818 Access cover gasket $59.07 1 usually ships 1-5 days
7 202-1356 One touch button $83.60 1 usually ships 8-12 days
8 202-0819 Bracket $5.50 1 usually ships 1-5 days
9 202-0831 Low solution indicator (amber) $16.56 1 ships same day
10 202-1369 Main controller $1,508.54 1 usually ships 8-12 days
11 202-1317 LCD window display $390.50 1 usually ships 8-12 days
12 202-1338 50amp resettable circuit breaker $84.92 2 usually ships 8-12 days
13 202-2307 36V 200 amp relay $190.85 1 usually ships 8-12 days
14 202-0537 Key switch (brass and silver) $40.37 1 usually ships 8-12 days
15 202-0348 15amp relay $12.76 1 ships same day
16 202-0826 Emergency shut-off switch $173.47 1 ships same day
17 202-0827 Emergency legend plate $43.34 1 usually ships 1-5 days
18 202-0097 Toggle switch $15.73 2 usually ships 8-12 days
19 202-0879 Push button switch $51.15 1 usually ships 8-12 days
20 202-0704 Hinge $11.66 1 usually ships 1-5 days
21 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 8-12 days
22 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel $5.50 1 usually ships 8-12 days
23 999-1982 Bolt 10-32 x 1 round carriage head stainless steel $2.86 2 usually ships 12-18 days
24 999-0190 Nut 1/4-20 hex plain finish $0.99 3 ships same day
25 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
26 202-2067 Nut 10-32 keps $5.50 5 usually ships 8-12 days
27 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
28 999-0998 Washer #10 flat stainless steel $0.99 5 ships same day
29 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
30 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 1 ships same day
31 999-0965 Screw 10-32 x 1/2 button head socket cap stainless steel $0.99 4 ships same day
32 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 2 ships same day
34 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 5 usually ships 8-12 days
