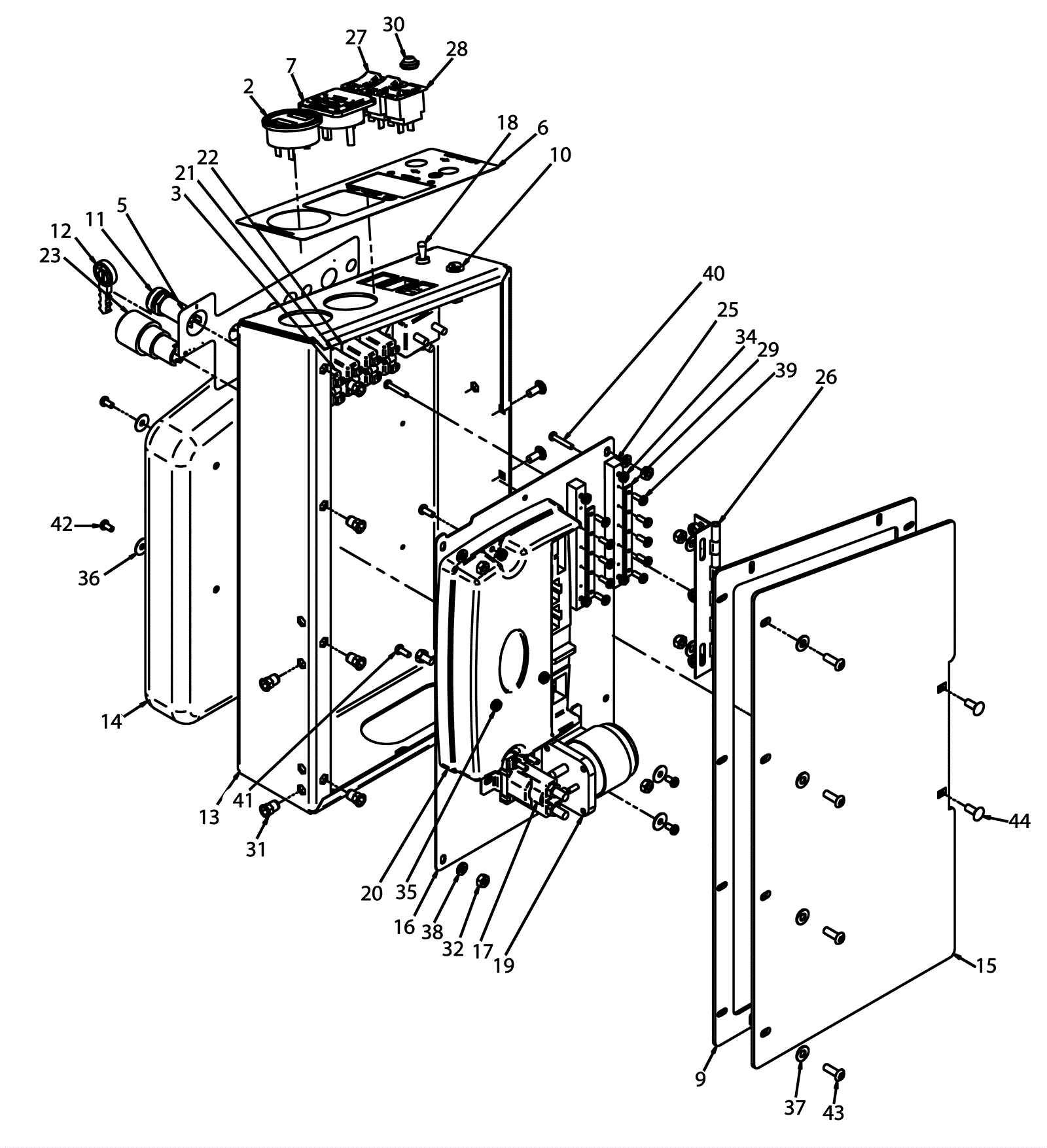

255-TXL Central Command Assembly - Current

#PartDescriptionPriceReqNotesAvailability
2 202-2855 Battery meter $131.69 1 usually ships 8-12 days
3 202-4160 40amp resettable fuse $105.71 1 usually ships 8-12 days
5 202-6878 Decal, Control Panel Front 255 $50.49 1 usually ships 8-12 days
6 202-6880 Decal, Control Panel, Top 255 $82.61 1 usually ships 8-12 days
7 202-2573 0 to 100 Amp gauge $77.00 1 ships same day
9 202-0818 Access cover gasket $59.07 1 usually ships 1-5 days
10 202-0831 Low solution indicator (amber) $16.56 1 ships same day
11 202-2300 Key switch with key entry (red) and ring (black) $33.55 1 ships same day
12 991-1634 Key (pkg of 2) $10.67 1 ships same day
13 202-7534 Control Panel,Red Textured $92.84 1 usually ships 8-12 days
14 202-3229 Operator's manual holder $74.80 1 usually ships 1-5 days
15 202-3311 Access cover (red) $126.39 1 usually ships 1-5 days
16 202-3305 Hardware panel (black) $72.71 1 usually ships 1-5 days
17 202-3307 36V relay with mounting plate $66.55 1 usually ships 8-12 days
18 202-1992 Toggle switch $52.47 1 usually ships 8-12 days
19 202-2307 36V 200 amp relay $190.85 1 usually ships 8-12 days
20 202-1369 Main controller $1,508.54 1 usually ships 8-12 days
21 202-2500 10amp fuse $29.48 1 usually ships 8-12 days
22 202-2499 15amp fuse $41.80 2 usually ships 8-12 days
23 202-0826 Emergency shut-off switch $173.47 1 ships same day
25 202-0541 Busbar $8.14 2 usually ships 1-5 days
26 202-0704 Hinge $11.66 1 usually ships 1-5 days
27 202-0370 Switch $25.19 2 usually ships 8-12 days
28 202-2627 Switch, Rocker, Black, SPST, off-mom $29.92 1 usually ships 8-12 days
29 202-0830 Busbar (5 hole) $11.77 2 usually ships 8-12 days
30 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 8-12 days
31 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
32 999-0609 Nut 1/4-20 hex stainless steel $0.99 8 ships same day
34 999-1464 Nut 8-32 keps lock with external tooth lockwasher ss $0.99 4 ships same day
35 202-2067 Nut 10-32 keps $5.50 3 usually ships 8-12 days
36 202-3316 Washer flat stainless steel $5.50 4 usually ships 8-12 days
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
38 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
39 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 10 ships same day
40 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 4 usually ships 1-5 days
41 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 3 ships same day
42 202-3197 Screw 10-32 x 3/8 inch button head socket stainless steel $5.50 4 usually ships 8-12 days
43 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 8 ships same day
44 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 5 usually ships 8-12 days
N/S 202-5610 36V battery warning plate $11.66 1 usually ships 1-5 days
N/S 202-2577 80 amp breaker $278.85 1 usually ships 8-12 days
N/S 202-0825 Emergency contact $44.77 1 usually ships 8-12 days
N/S 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
N/S 202-2592 Grommet $5.50 3 usually ships 8-12 days
