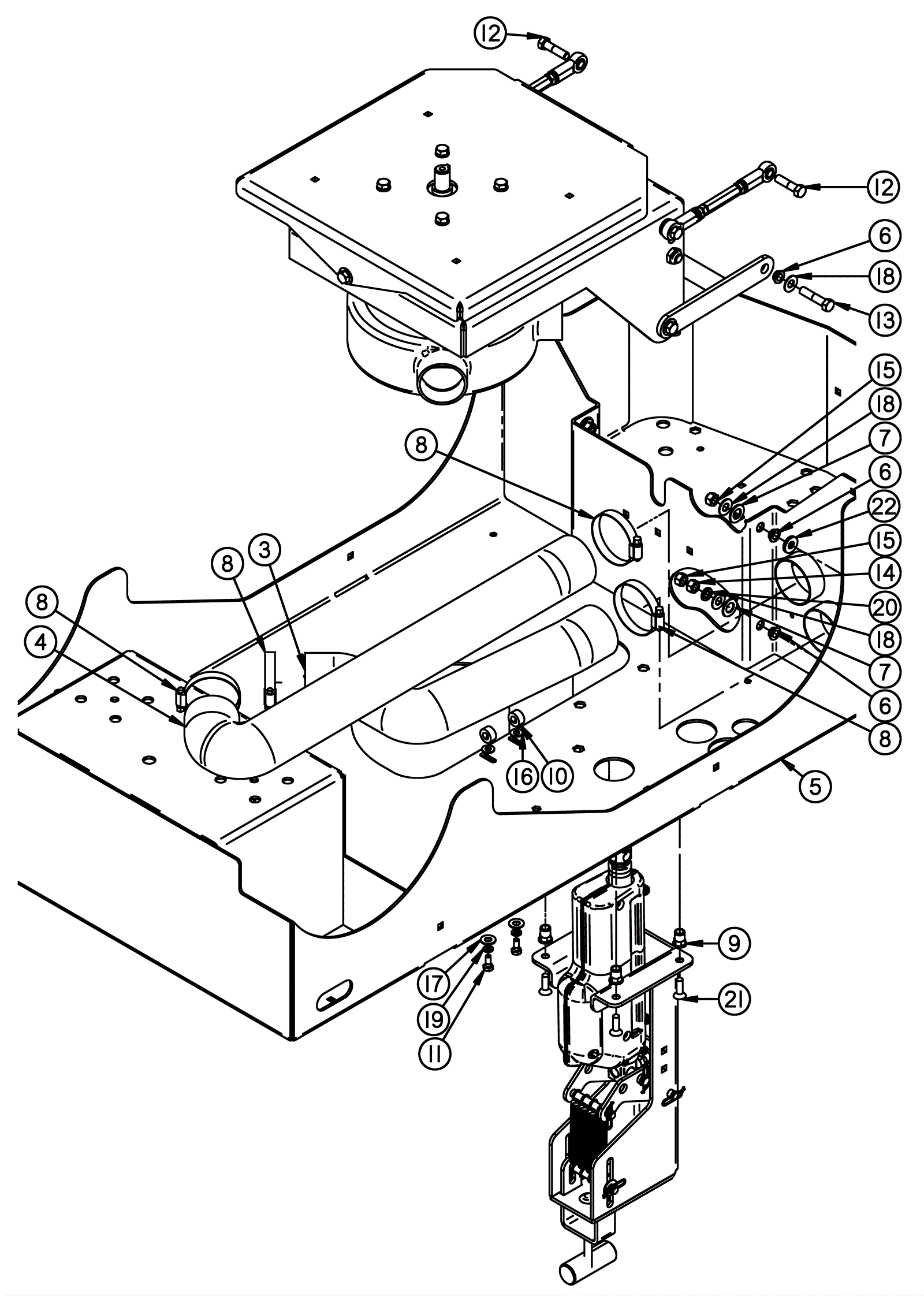

255-TXL Deck and Actuator Tower Assembly

#PartDescriptionPriceReqNotesAvailability
3 202-6866 Hose,2.5 inchIDx 22 inchL, Reinforced $49.28 1 usually ships 8-12 days
4 202-6867 Hose,2.5 inchID 26 inchL, Reinforced $51.37 1 usually ships 8-12 days
5 202-6873 Main Frame $1,967.24 1 usually ships 8-12 days
6 202-1239 Flanged bearing $5.50 6 usually ships 8-12 days
7 202-1181 Washer 1/2 flat bronze $5.50 4 usually ships 8-12 days
8 997-2003 Hose clamp $2.66 4 ships same day
9 202-5258 Nut 5/16-18 hex crimp long $5.50 4 usually ships 1-5 days
10 202-2964 Shaft collar $5.50 2 usually ships 1-5 days
11 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
12 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel $5.50 2 usually ships 8-12 days
13 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 2 ships same day
14 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
15 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 4 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
18 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
19 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
20 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
21 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated $1.25 4 ships same day
22 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
