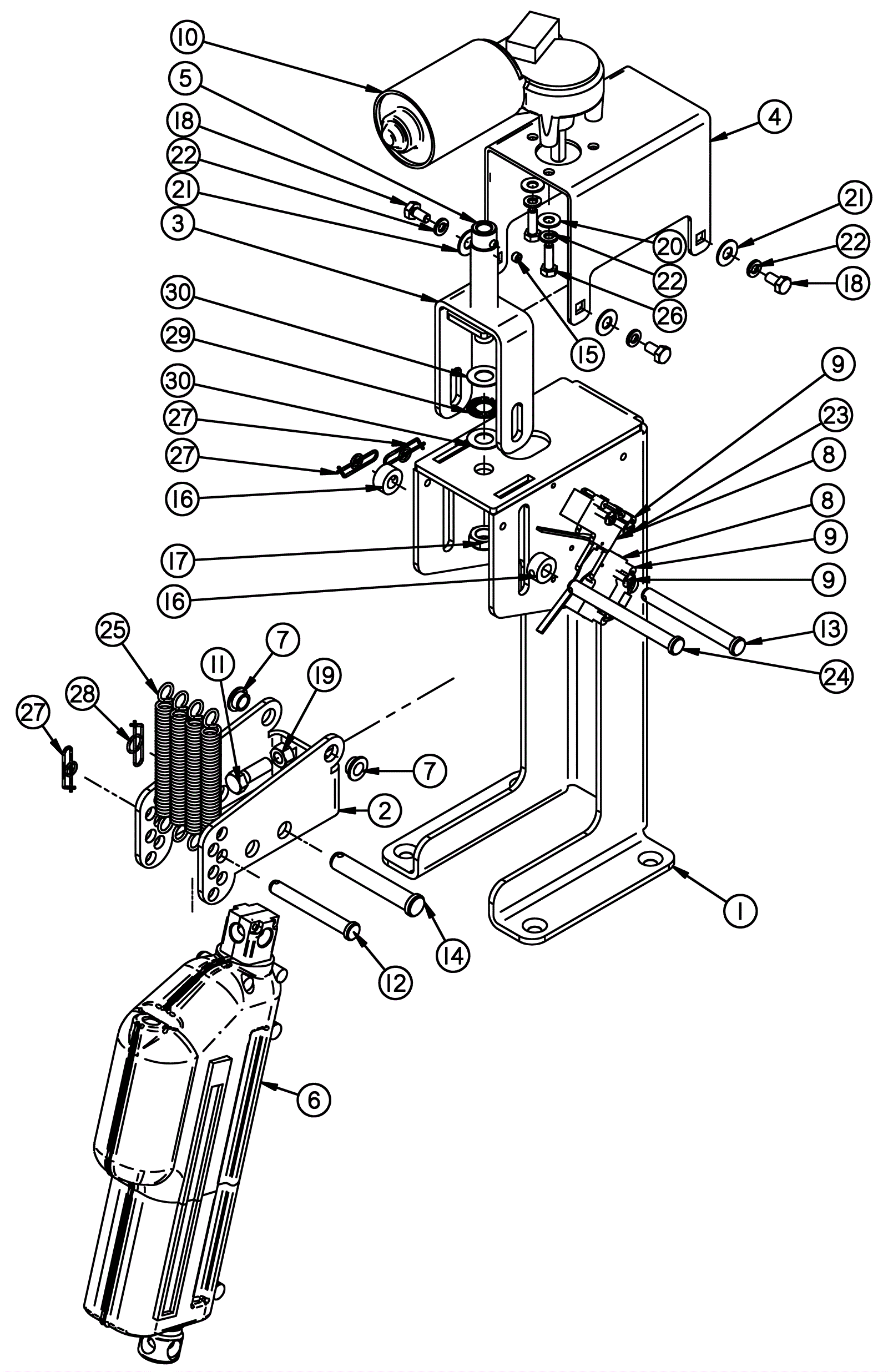

255-TXL Mechanical Burnisher Actuator Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6868 Actuator, Upright $305.58 1 usually ships 8-12 days
2 202-6869 Pivot,Actuator $90.20 1 usually ships 8-12 days
3 202-5209 Spring adjustment bracket with shaft (OBSOLETE) $687.62 1 usually ships 8-12 days
4 202-6870 Motor Mount $43.89 1 usually ships 8-12 days
5 202-5209 Spring adjustment bracket with shaft (OBSOLETE) $687.62 1 (includes item 3) usually ships 8-12 days
6 202-2570 6 inch Stroke 36V actuator (OBSOLETE) $335.39 1 usually ships 8-12 days
7 202-1239 Flanged bearing $5.50 2 usually ships 8-12 days
8 202-0192 Lift limit switch $41.47 2 usually ships 8-12 days
9 202-0351 EMF suppression diode $5.50 2 usually ships 8-12 days
10 202-2144 Side broom motor $494.23 1 usually ships 8-12 days
11 202-1186 Bolt 3/8-24 x 1 1/8 hex cap stainless steel $3.60 1 ships same day
12 202-5337 Clevis pin $5.50 1 usually ships 1-5 days
13 999-1633 Clevis pin 3/8 x 3 1/2 $4.31 1 ships same day
14 202-5182 Clevis pin $5.50 1 usually ships 12-18 days
15 202-3154 Screw 1/4-20 x 1/4 set $5.50 1 ships same day
16 202-2964 Shaft collar $5.50 2 usually ships 1-5 days
17 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
18 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
19 999-0169 Nut 3/8-24 hex jam plain finish $0.99 1 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
22 999-0632 Washer 1/4 split lock stainless steel $0.99 6 ships same day
23 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 4 usually ships 1-5 days
24 202-1968 Clevis pin $7.04 1 usually ships 8-12 days
25 202-4216 Spring $11.28 4 ships same day
26 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
27 202-2036 Cotter pin $5.50 3 usually ships 8-12 days
28 202-2059 Cotter ring $5.50 1 usually ships 8-12 days
29 202-5232 Roller thrust bearing $14.63 1 usually ships 8-12 days
30 202-5233 Thrust bearing washer $12.54 2 usually ships 8-12 days
