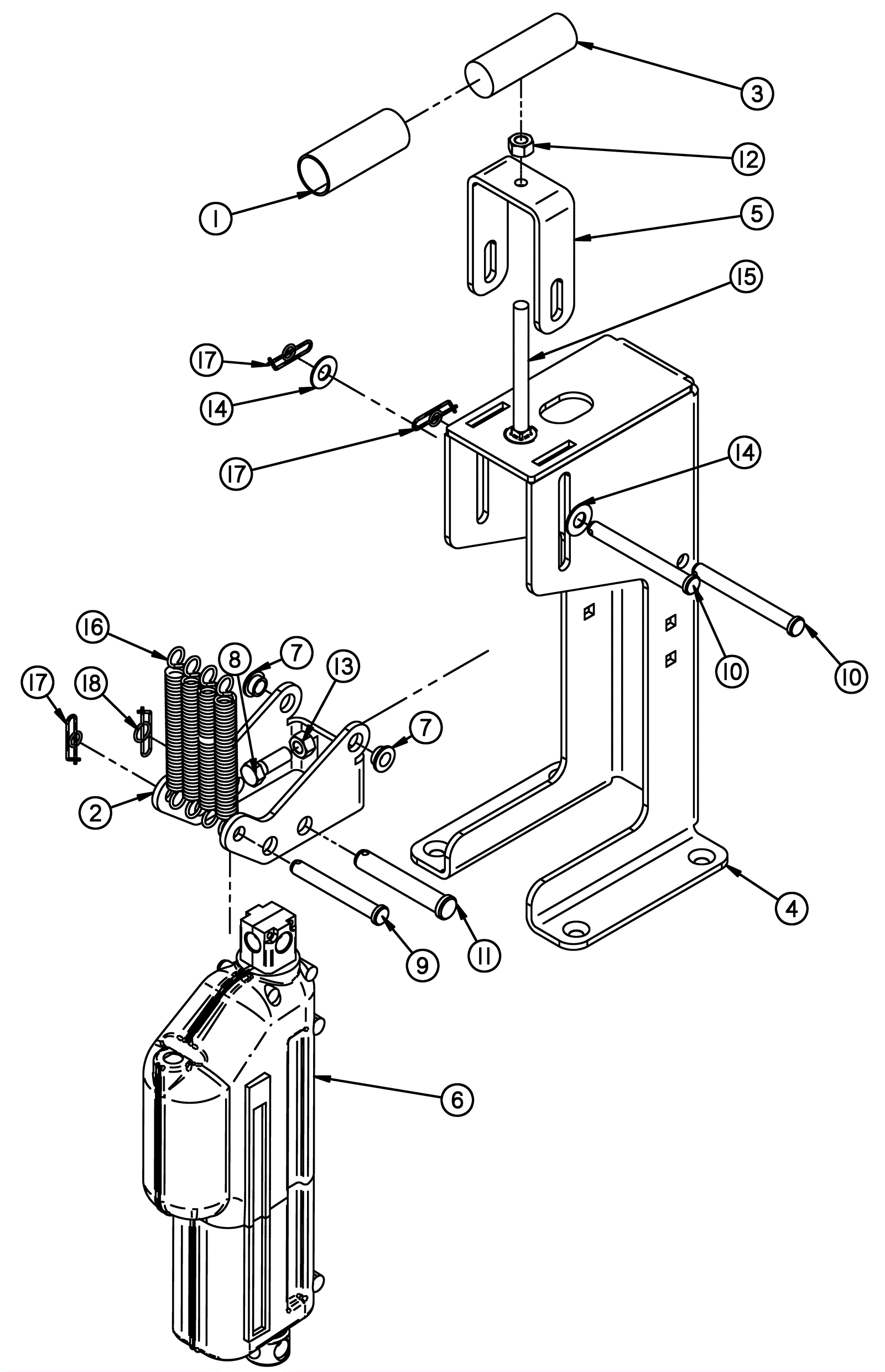

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-3541
|
Down pressure decal |
$17.27
|
1 |
|
usually ships 8-12 days |
2 |
202-6869
|
Pivot,Actuator |
$90.20
|
1 |
|
usually ships 8-12 days |
3 |
202-2565
|
Spring adjustment knob |
$73.92
|
1 |
|
usually ships 8-12 days |
4 |
202-2566
|
Actuator upright |
$253.88
|
1 |
|
usually ships 1-5 days |
5 |
202-2568
|
Actuator spring adjustment bracket |
$69.74
|
1 |
|
usually ships 8-12 days |
6 |
202-2570
|
6 inch Stroke 36V actuator (OBSOLETE) |
$335.39
|
1 |
|
usually ships 8-12 days |
7 |
202-1239
|
Flanged bearing |
$5.50
|
2 |
|
usually ships 8-12 days |
8 |
202-1186
|
Bolt 3/8-24 x 1 1/8 hex cap stainless steel |
$3.60
|
1 |
|
ships same day |
9 |
202-5337
|
Clevis pin |
$5.50
|
1 |
|
usually ships 1-5 days |
10 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
$4.31
|
2 |
|
ships same day |
11 |
202-5182
|
Clevis pin |
$5.50
|
1 |
|
usually ships 12-18 days |
12 |
999-0635
|
Nut 3/8-16 hex stainless steel |
$0.99
|
1 |
|
ships same day |
13 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
$0.99
|
1 |
|
ships same day |
14 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
2 |
|
ships same day |
15 |
202-3540
|
Bolt 3/8-16 x 4 carriage stainless steel |
$9.90
|
1 |
|
usually ships 1-5 days |
16 |
202-2208
|
Compression spring |
$6.38
|
4 |
|
usually ships 8-12 days |
17 |
202-2036
|
Cotter pin |
$5.50
|
3 |
|
usually ships 8-12 days |
18 |
202-2059
|
Cotter ring |
$5.50
|
1 |
|
usually ships 8-12 days |
