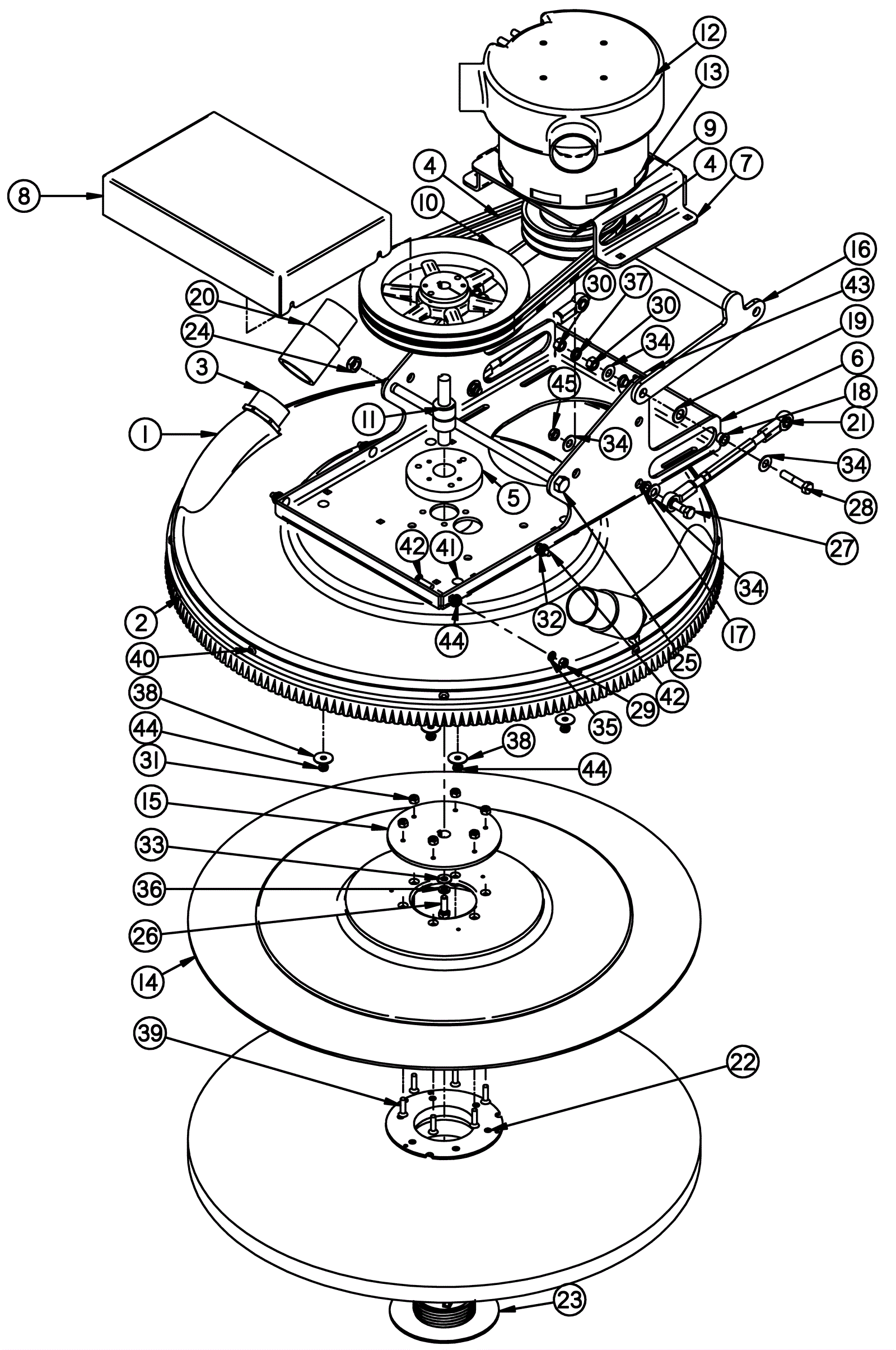

255-TXL 27 inch Old Belt Drive Burnisher Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2539 27 inchBurnisher shroud $108.68 1 usually ships 8-12 days
2 202-2541 Shroud curtain $182.96 1 usually ships 8-12 days
3 202-2540 M1 - 1/4 NPT to 2 inch OD Adapter $25.30 2 ships same day
4 202-3581 Pad driver belt $20.24 2 usually ships 8-12 days
5 202-2543 Bearing housing $157.52 1 usually ships 1-5 days
6 202-2544 Bearing housing $537.90 1 usually ships 1-5 days
7 202-2545 Motor adjustment bracket $75.13 1 usually ships 1-5 days
8 202-2546 Belt guard $330.88 1 usually ships 1-5 days
9 202-2547 Pulley (OBSOLETE) $197.67 1 usually ships 8-12 days
10 202-2548 11 inch Pulley $290.95 1 usually ships 8-12 days
11 202-2549 Drive bearing $191.40 1 usually ships 1-5 days
12 202-2550 Motor cover $43.56 1 usually ships 8-12 days
13a 202-3003 Motor 36V 78 amp burnisher $765.27 1 usually ships 8-12 days
13b 202-7133 Carbon brush $42.35 1 usually ships 8-12 days
14 202-2553 27 inch driver plate $259.60 1 usually ships 8-12 days
15 202-2551 Pad driver $144.76 1 usually ships 1-5 days
16 202-2554 Lateral lifting bracket $72.05 1 usually ships 1-5 days
17 202-1239 Flanged bearing $5.50 4 usually ships 8-12 days
18 202-0754 Flanged bearing $5.50 2 usually ships 8-12 days
19 202-1181 Washer 1/2 flat bronze $5.50 2 usually ships 8-12 days
20 202-2111 2 inch hose cuff $14.41 2 usually ships 8-12 days
21 202-2555 Adjustable lateral arm $166.98 2 usually ships 1-5 days
22 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
23 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
24 202-2559 Nut 1/2 nylock jam $5.50 1 usually ships 8-12 days
25 999-1287 Screw 1/2-13 x 13 hex head grade 8 yellow zinc $11.84 1 usually ships 12-18 days
26 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 ships same day
27 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 2 ships same day
28 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 2 ships same day
29 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
30 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
31 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
33 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
34 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
35 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
36 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
37 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
38 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 4 ships same day
39 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 6 ships same day
40 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 9 ships same day
41 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 4 usually ships 8-12 days
42 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 4 ships same day
43 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel $6.57 1 ships same day
44 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 17 ships same day
45 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
