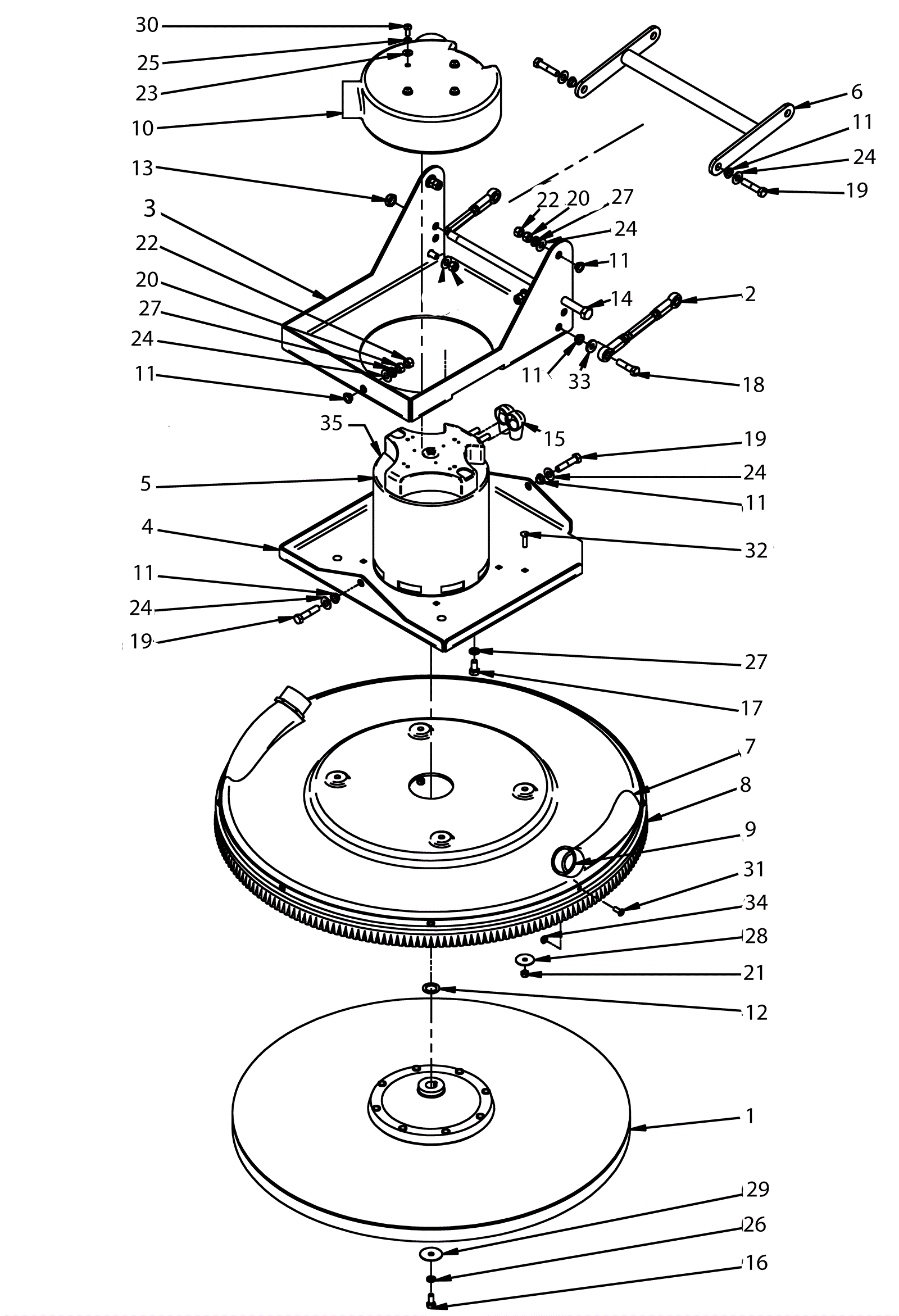

255-TXL 27 inch Burnisher Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2977 27 inch pad driver assembly $212.08 1 usually ships 8-12 days
2 202-5276 Adjustable lateral arm $74.14 2 usually ships 8-12 days
3 202-6881 Bracket,Upper,Tilt Deck $382.14 1 usually ships 8-12 days
4 202-6882 Bracket,Lower,Tilt Deck $133.65 1 usually ships 8-12 days
5 202-4174 36V 3.25HP burnisher motor $858.66 1 usually ships 8-12 days
6 202-4210 Lateral lifting bracket $129.03 1 usually ships 8-12 days
7 202-2539 27 inchBurnisher shroud $108.68 1 usually ships 8-12 days
8 202-2541 Shroud curtain $182.96 1 usually ships 8-12 days
9 202-2540 M1 - 1/4 NPT to 2 inch OD Adapter $25.30 2 ships same day
10 202-2550 Motor cover $43.56 1 usually ships 8-12 days
11 202-1239 Flanged bearing $5.50 10 usually ships 8-12 days
12 202-1204 Washer 3/4 x 1 1/8 flat stainless steel $5.50 1 usually ships 8-12 days
13 202-2559 Nut 1/2 nylock jam $5.50 1 usually ships 8-12 days
14 999-1287 Screw 1/2-13 x 13 hex head grade 8 yellow zinc $11.84 1 usually ships 12-18 days
15 202-2850 Battery boot $13.20 2 usually ships 1-5 days
16 202-2838 Screw 5/16 inch - 24 x 3/4 inch head cap, ss $5.50 1 usually ships 8-12 days
17 202-2839 Screw 3/8 inch - 16 x 5/8 inch head cap, ss $5.50 4 usually ships 8-12 days
18 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel $5.50 2 usually ships 8-12 days
19 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 4 ships same day
20 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
21 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
22 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 6 ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
24 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 10 ships same day
25 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
26 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
27 999-0659 Washer 3/8 medium split lock stainless steel $0.39 8 ships same day
28 999-0975 Washer 1/4 x 1 1/4 fender stainless steel $0.99 4 ships same day
29 999-1213 Washer 5/16 x 1 1/2 fender stainless steel $0.99 1 ships same day
30 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
31 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 9 ships same day
32 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 4 ships same day
33 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
34 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 9 ships same day
35 202-7133 Carbon brush $42.35 1 usually ships 8-12 days
