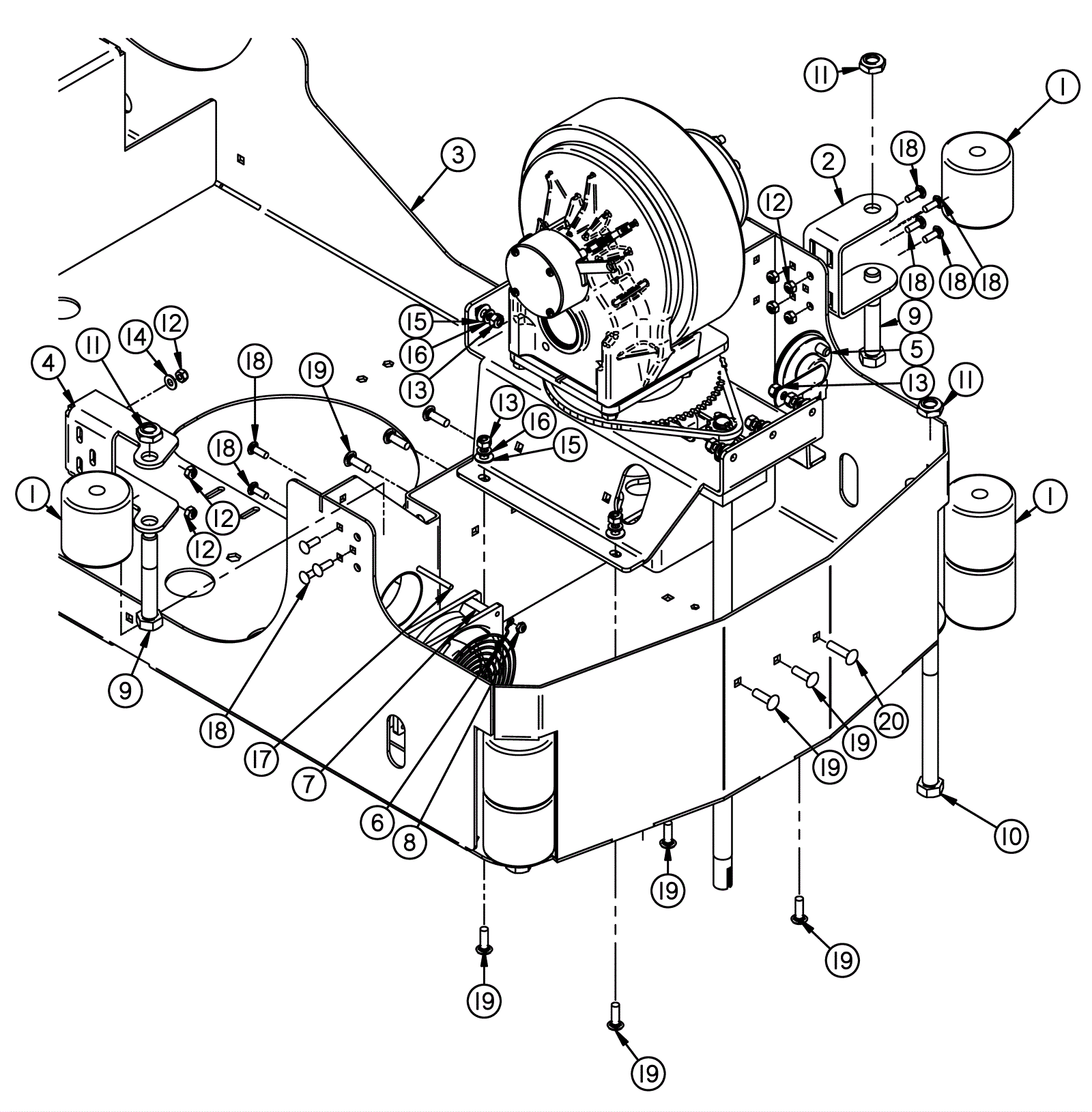

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-0756
|
Guide roller |
$28.16
|
6 |
|
usually ships 8-12 days |
2 |
202-1267
|
26 inch roller bracket |
$31.13
|
1 |
|
usually ships 1-5 days |
3 |
202-6873
|
Main Frame |
$1,967.24
|
1 |
|
usually ships 8-12 days |
4 |
202-5560
|
Lower roller bracket |
$38.94
|
1 |
|
usually ships 1-5 days |
5 |
202-3082
|
Horn |
$62.81
|
1 |
|
usually ships 8-12 days |
6 |
202-1282
|
Fan cover |
$10.78
|
1 |
|
usually ships 8-12 days |
7 |
202-2522
|
48V cooling fan |
$126.83
|
1 |
|
usually ships 8-12 days |
8 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
$0.99
|
3 |
|
usually ships 12-18 days |
9 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
$6.09
|
2 |
|
ships same day |
10 |
202-4038
|
Screw 5/8-11 x 10 hex head |
$17.49
|
2 |
|
usually ships 8-12 days |
11 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
$2.27
|
4 |
|
ships same day |
12 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
9 |
|
ships same day |
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
7 |
|
ships same day |
14 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
3 |
|
ships same day |
15 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
16 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
6 |
|
ships same day |
17 |
999-1818
|
Screw 10-32 x 2 pan head phillips stainless steel |
$1.80
|
4 |
|
ships same day |
18 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
$1.50
|
9 |
|
ships same day |
19 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
$1.34
|
9 |
|
ships same day |
20 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
$1.39
|
1 |
|
ships same day |
