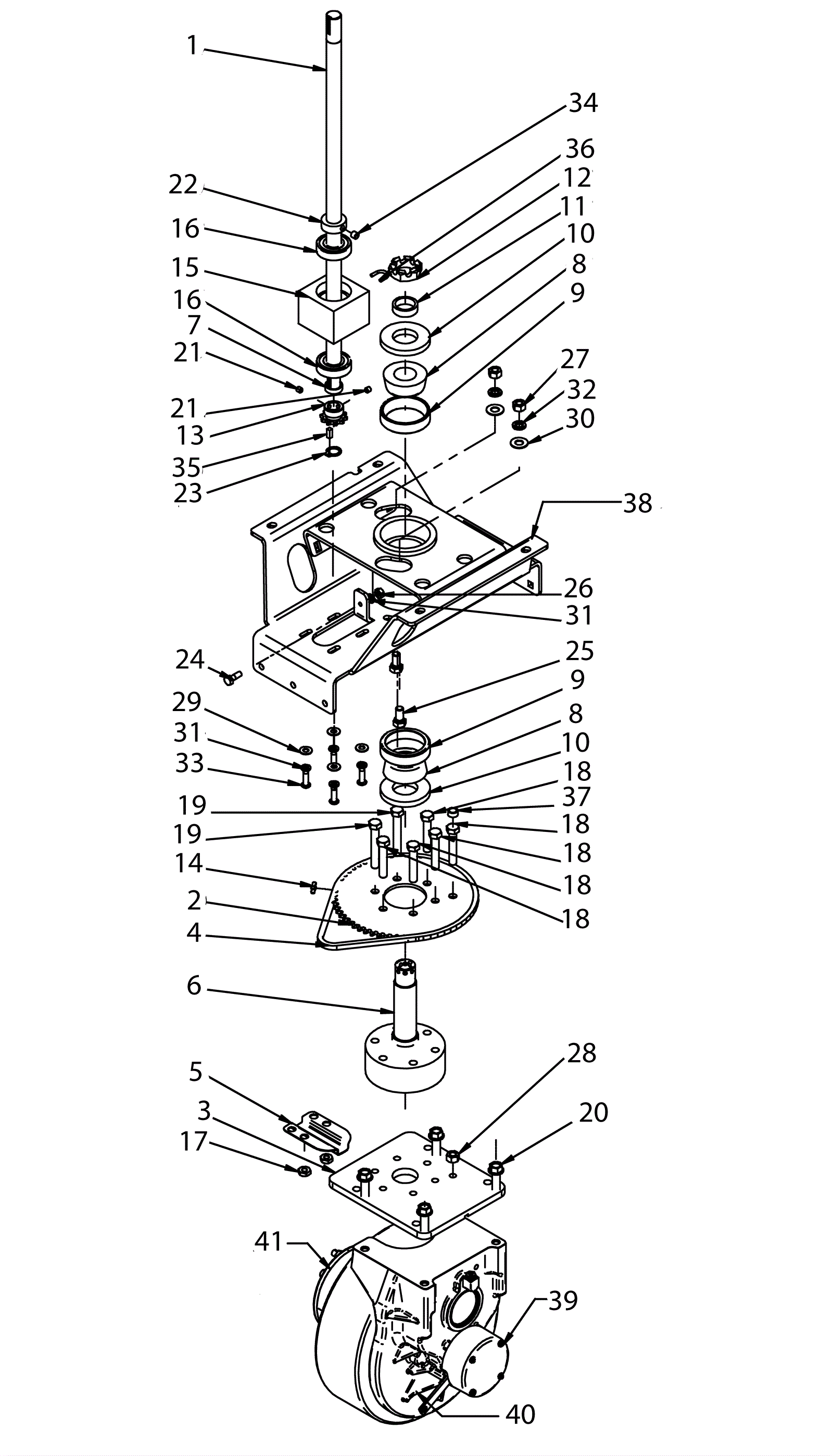

255-TXL Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-1892 Lower steering shaft $51.92 1 usually ships 1-5 days
2 202-1894 60 toothed sprocket $79.31 1 usually ships 1-5 days
3 202-1896 Pivot plate $125.95 1 usually ships 1-5 days
4 202-1897 Steering chain $37.73 1 usually ships 8-12 days
5 202-2960 Wire guide $23.76 1 usually ships 8-12 days
6 202-2308 Steering shaft spindle $581.02 1 usually ships 1-5 days
7 202-5038 Spacer $6.71 1 usually ships 1-5 days
8 202-0766 Tapered bearing $24.42 2 usually ships 8-12 days
9 202-0767 Bearing cap $24.86 2 usually ships 8-12 days
10 202-0768 Seal $32.01 2 usually ships 8-12 days
11 202-0769 Sleeved bearing $5.50 1 usually ships 8-12 days
12 202-1166 Slotted castle nut $9.35 1 usually ships 8-12 days
13 202-0280 10 toothed sprocket $31.13 1 usually ships 8-12 days
14 202-0283 Master link $5.50 1 usually ships 8-12 days
15 202-0771 Bearing block $205.48 1 usually ships 8-12 days
16 202-0160 Bearing $41.80 2 usually ships 8-12 days
17 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 2 ships same day
18 999-1567 Screw 3/8-24 x 2 hex head stainless steel $5.52 5 ships same day
19 202-2963 Bolt hex head stainless steel $10.34 2 usually ships 1-5 days
20 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
21 202-3154 Screw 1/4-20 x 1/4 set $5.50 2 ships same day
22 202-2216 Shaft collar with set screw $5.50 1 usually ships 8-12 days
23 202-0281 Snap ring $5.50 1 usually ships 8-12 days
24 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 usually ships 12-18 days
25 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
26 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
27 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
28 999-0169 Nut 3/8-24 hex jam plain finish $0.99 1 ships same day
29 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
30 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
31 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
32 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
33 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 4 ships same day
34 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
35 202-0278 Square keyway $5.50 1 usually ships 8-12 days
36 202-2967 S hook $5.50 1 usually ships 8-12 days
37 202-5214 Hose (black) (OBSOLETE) Call for price 1 usually ships 1-5 days
38 202-1898 Drop plate $607.97 1 (includes 9) usually ships 1-5 days
39 202-5075 36V electric brake $701.78 1 usually ships 8-12 days
40 202-3545 36V front drive wheel w/ smooth gray wheel $2,146.87 1 usually ships 8-12 days
41a 202-3524 Front wheel drive motor $1,002.98 1 usually ships 8-12 days
41b 202-5072 36V brush motor kit with springs $267.30 1 usually ships 1-5 days
