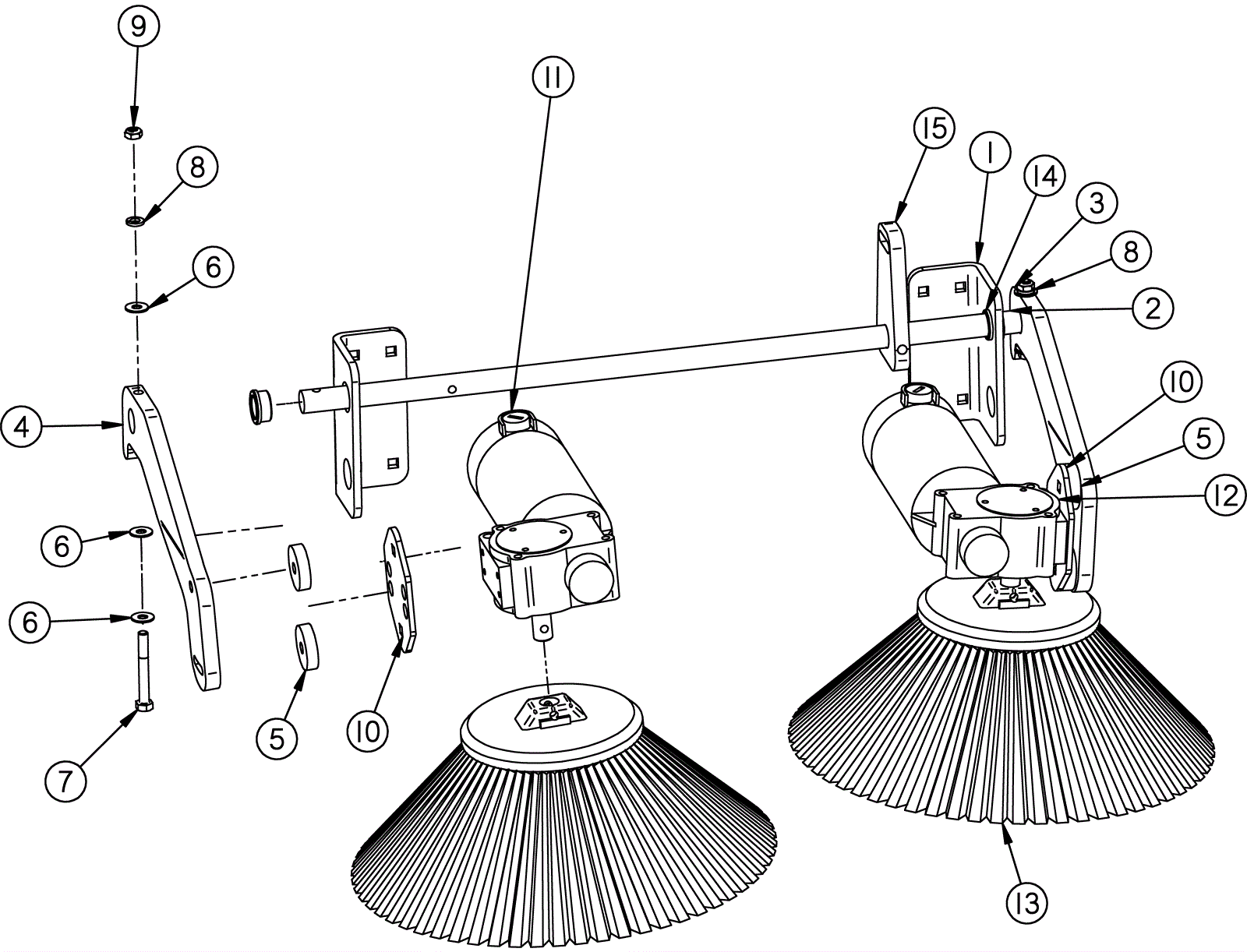

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2139
|
Axle support bracket |
2 |
|
|
2 |
202-2138
|
Side broom suspension axle shaft |
1 |
|
|
3 |
202-3068
|
Left side lifting arm |
1 |
|
|
4 |
202-3069
|
Right side lifting arm |
1 |
|
|
5 |
202-0151
|
Grommet |
4 |
|
|
6 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
6 |
|
|
7 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
|
8 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
9 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
2 |
|
|
10 |
202-3073
|
Mounting plate |
2 |
|
|
12 |
202-3079
|
36V motor |
1 |
|
|
13 |
202-1495
|
Polypropylene side broom |
2 |
|
|
14 |
202-1397
|
Flanged bushing |
2 |
|
|
15 |
202-6665
|
Arm,Side Broom Lift,Center (OBSOLETE) |
1 |
|
|
