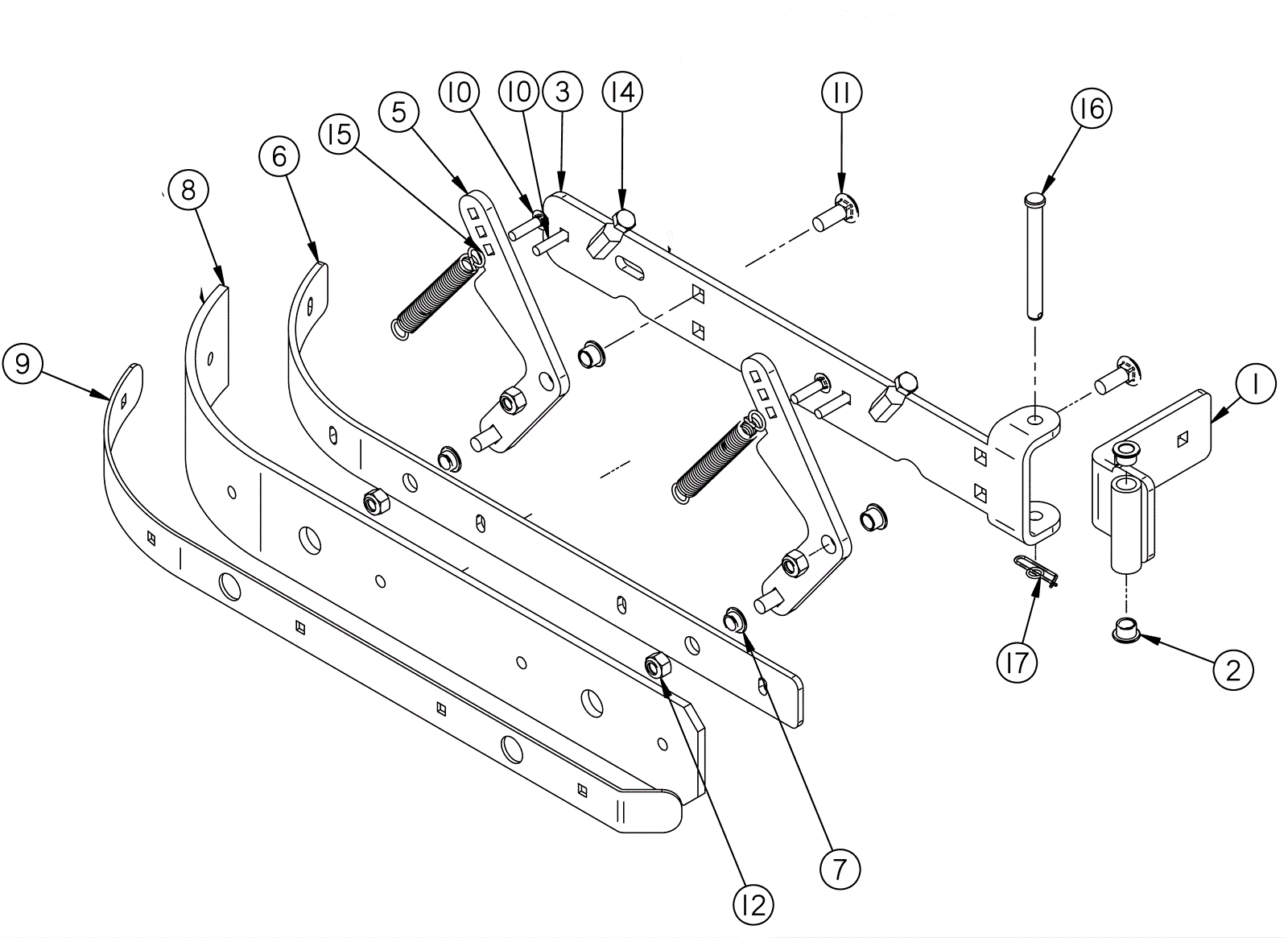

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3137
|
Hinge |
1 |
|
|
2 |
202-0754
|
Flanged bearing |
4 |
|
|
3a |
202-5705
|
Right hand horizontal wiper arm |
1 |
|
|
3b |
202-5704
|
Left hand horizontal wiper arm |
1 |
|
|
5 |
202-5121
|
Vertical arm |
2 |
|
|
6 |
202-5122
|
Side shroud |
1 |
|
|
7 |
202-1239
|
Flanged bearing |
2 |
|
|
8a |
202-3019
|
Shroud curtain linatex (red) |
1 |
|
|
8b |
202-3381
|
Shroud curtain gum rubber (tan) |
1 |
|
|
8c |
202-6613
|
Curtain,Wiper,Urethane |
1 |
|
|
9 |
202-5123
|
Wiper band |
1 |
|
|
10 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
2 |
|
|
11 |
202-2832
|
Bolt 3/8 - 16 x 1 carriage head stainless steel |
4 |
|
|
12 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
4 |
|
|
13 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
2 |
|
|
14 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
15 |
202-2208
|
Compression spring |
2 |
|
|
16 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
1 |
|
|
17 |
202-2036
|
Cotter pin |
1 |
|
|
N/S |
202-6612
|
Cylindrical Wiper,LH Complete Assembly for GTX/250, Urethane |
1 |
|
|
