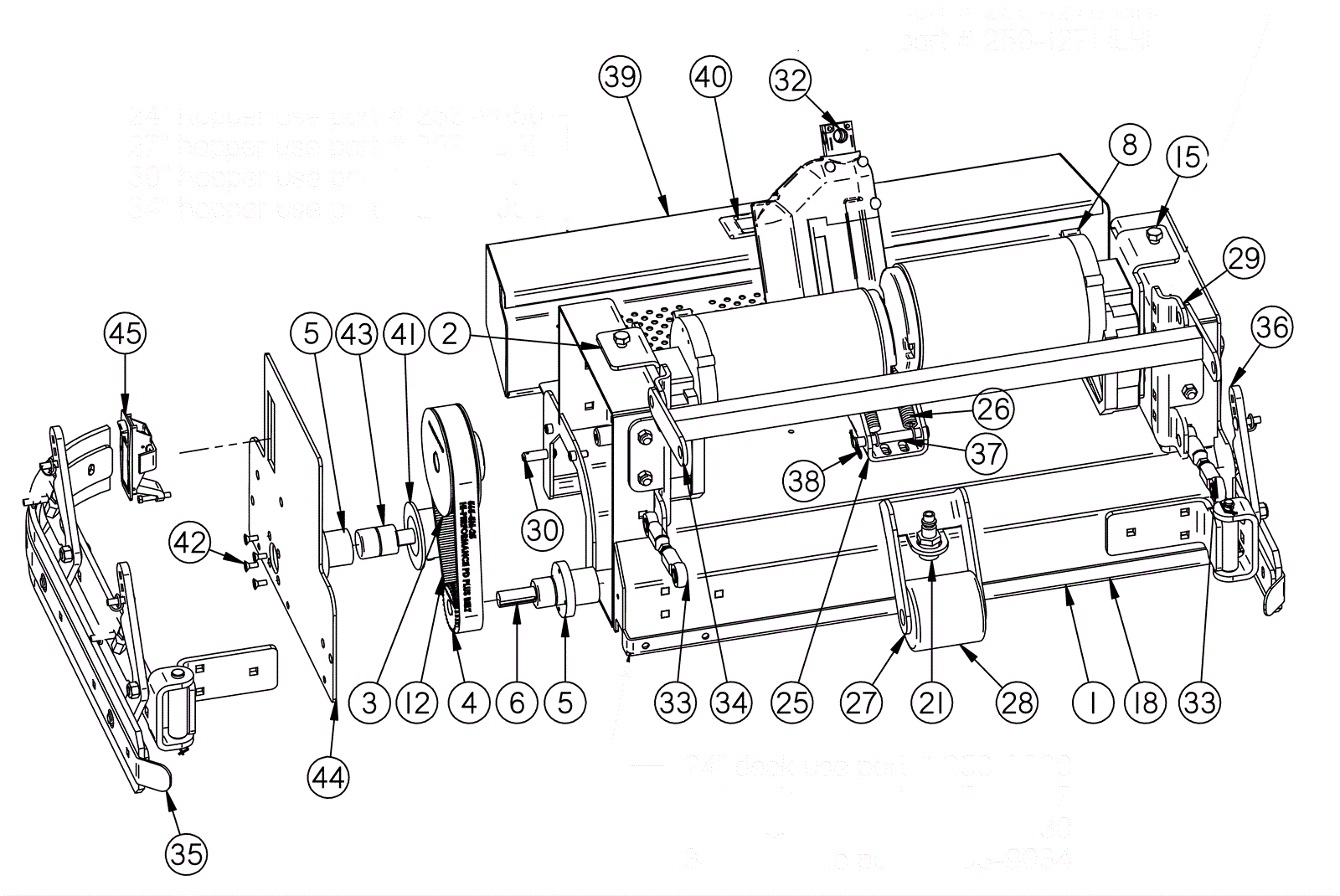

250 Cylindrical Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 202-5027 24 inch cylindrical scrub deck $1,223.53 1 usually ships 3-11 days
1b 202-4019 27 inch cylindrical brush deck $1,069.97 1 usually ships 3-11 days
1c 202-4020 30 inch cylindrical brush deck $1,686.52 1 usually ships 1-5 days
1c 202-4021 34 inch cylindrical brush deck $921.25 1 usually ships 1-5 days
2 202-3142 Motor adjustment bracket $43.34 2 usually ships 3-11 days
3 202-3141 68 toothed sprocket $149.81 2 usually ships 3-11 days
4 202-3140 32 toothed sprocket $78.32 2 usually ships 3-11 days
5 202-0265 Idler bearing housing $54.23 4 usually ships 3-11 days
6 202-4041 Bearing housing $167.86 2 ships same day
7 202-0264 Brush driver $92.95 2 ships same day
8 202-5125 36V 3/4HP motor $518.80 2 usually ships 3-11 days
9 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
10 999-0659 Washer 3/8 medium split lock stainless steel $0.39 8 ships same day
11 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
12 202-2877 Belt $77.33 2 usually ships 3-11 days
13 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $8.75 4 ships same day
14 999-0965 Screw 10-32 x 1/2 button head socket cap stainless steel $0.99 8 ships same day
15 202-1186 Bolt 3/8-24 x 1 1/8 hex cap stainless steel $3.60 2 ships same day
16 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
17 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
19 202-1275 24 inch hopper rail $32.89 1 usually ships 3-11 days
20 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
21 202-0883 1/2 mnpt to 3/8 brass cup $21.34 1 usually ships 3-11 days
23 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
24 202-1181 Washer 1/2 flat bronze $5.50 8 usually ships 3-11 days
25 202-5126 Lifting bracket $72.16 1 usually ships 1-5 days
26 202-2208 Compression spring $6.38 2 usually ships 3-11 days
27 202-5124 Actuator adjustment bracket $69.74 1 usually ships 1-5 days
28 202-0756 Guide roller $28.16 1 usually ships 3-11 days
29a 202-5128 24 inch lifting bracket $27.06 2 usually ships 1-5 days
29b 202-5129 27 inch lifting bracket $38.06 2 usually ships 1-5 days
29c 202-5130 30 inch right side lifting bracket $91.41 2 usually ships 1-5 days
29d 202-5131 30 inch left side lifting bracket $106.81 2 usually ships 1-5 days
29e 202-5132 34 inch right side lifting bracket $107.47 2 usually ships 1-5 days
29f 202-5133 34 inch left side lifting bracket $51.37 2 usually ships 1-5 days
30 202-3136 Retaining pin $18.70 2 usually ships 3-11 days
31 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
32 202-1932 36V actuator $577.61 1 usually ships 3-11 days
33 202-0629 Adjustable lateral arm $73.92 2 usually ships 3-11 days
34 202-5127 Lateral arm $139.04 1 usually ships 1-5 days
35 202-5196 Right hand cylindrical wiper $258.61 1 usually ships 1-5 days
36 202-5197 Left hand cylindrical wiper $252.56 1 usually ships 3-11 days
37 202-2572 Clevis pin $20.46 2 usually ships 1-5 days
38 202-2036 Cotter pin $8.25 2 usually ships 3-11 days
39a 202-4024 24 inch hopper $252.45 1 usually ships 3-11 days
39b 202-6833 Hopper,Stainless,27 inch, Complete $425.70 1 usually ships 3-11 days
39c 202-4026 30 inch hopper $392.92 1 usually ships 3-11 days
39d 202-4027 34 inch hopper $539.33 1 usually ships 3-11 days
40 202-0308 Handle $23.10 1 usually ships 3-11 days
41 202-4078 Brush idler $79.09 2 usually ships 3-11 days
42 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 8 ships same day
43 202-4077 Idler bearing $167.86 2 usually ships 3-11 days
44 202-4076 Driver cover $129.58 2 usually ships 3-11 days
45 202-0404 Latch $49.06 2 ships same day
46 202-0278 Square keyway $5.50 2 usually ships 3-11 days
47 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 4 ships same day
