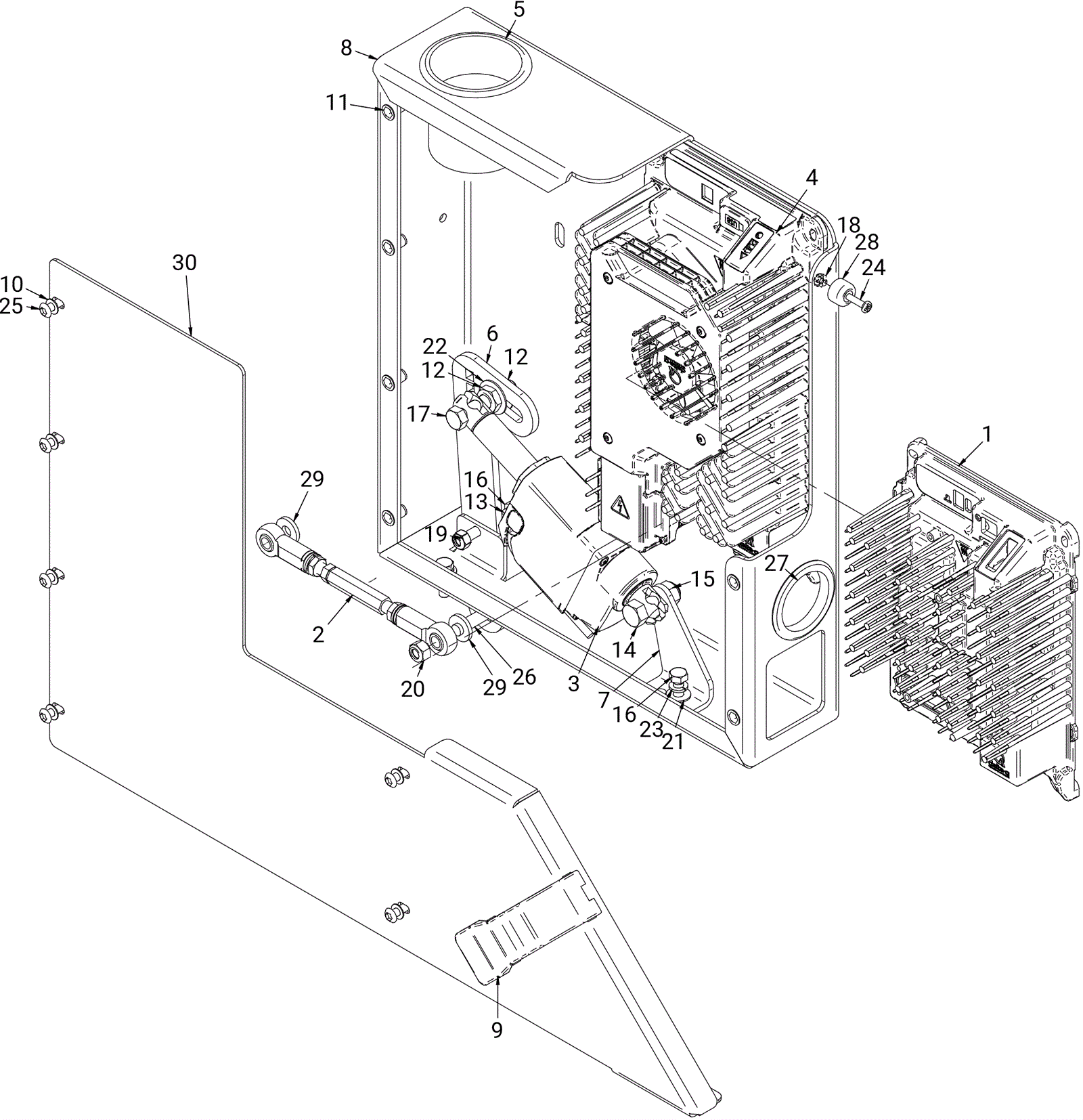

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-5723
|
12V 27AH onboard charger |
$1,204.39
|
1 |
|
usually ships 8-12 days |
2 |
202-5276
|
Adjustable lateral arm |
$74.14
|
1 |
|
usually ships 8-12 days |
3 |
302-0126
|
24V actuator |
$482.15
|
1 |
|
usually ships 8-12 days |
4 |
202-7022
|
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
$1,439.46
|
1 |
|
usually ships 8-12 days |
5 |
202-5192
|
Cup holder |
$10.12
|
1 |
|
usually ships 8-12 days |
6 |
202-4422
|
Side broom lever |
$32.08
|
1 |
|
usually ships 1-5 days |
7 |
202-4423
|
Actuator bracket |
$23.36
|
1 |
|
usually ships 1-5 days |
8 |
202-4424
|
Main broom panel |
$206.33
|
1 |
|
usually ships 1-5 days |
9 |
202-4232
|
Clip |
Call for price
|
1 |
|
usually ships 8-12 days |
10 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
$5.50
|
6 |
|
ships same day |
11 |
202-5284
|
Nut 1/4-20 hex crimp long |
$5.50
|
6 |
|
usually ships 1-5 days |
12 |
999-9119
|
Nut 1/2-13 nylon hex jam |
$0.99
|
2 |
|
usually ships 1-5 days |
13 |
202-9188
|
Washer,1/2 inchIDx3/4 inchOD Nylon |
$5.50
|
1 |
|
usually ships 8-12 days |
14 |
999-1326
|
Screw M12-1.75 x 40mm hex head |
$2.59
|
1 |
|
ships same day |
15 |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
$3.47
|
1 |
|
usually ships 12-18 days |
16 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
4 |
|
ships same day |
17 |
999-1960
|
Screw 7/16-14 x 2 1/4 hex head zinc |
$2.07
|
1 |
|
usually ships 12-18 days |
18 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
19 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
20 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
$1.06
|
1 |
|
ships same day |
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
22 |
999-1416
|
Washer 7/16 flat stainless steel |
$0.99
|
2 |
|
ships same day |
23 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
2 |
|
ships same day |
24 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
$0.99
|
1 |
|
ships same day |
25 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.99
|
6 |
|
ships same day |
26 |
999-1348
|
Bolt 3/8-16 x 1 1/2 carriage head stainless steel |
$3.30
|
1 |
|
ships same day |
27 |
202-3636
|
Grommet |
Call for price
|
1 |
|
usually ships 8-12 days |
28 |
202-3275
|
Rubber bumper |
$5.50
|
1 |
|
usually ships 8-12 days |
29 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
2 |
|
ships same day |
30a |
202-4425
|
Left hand access cover (red) |
$208.87
|
1 |
|
usually ships 1-5 days |
30b |
202-4426
|
Left hand access cover (granite) |
$244.35
|
1 |
|
usually ships 1-5 days |
30c |
202-4427
|
Left hand access cover (black) |
Call for price
|
1 |
|
usually ships 1-5 days |
