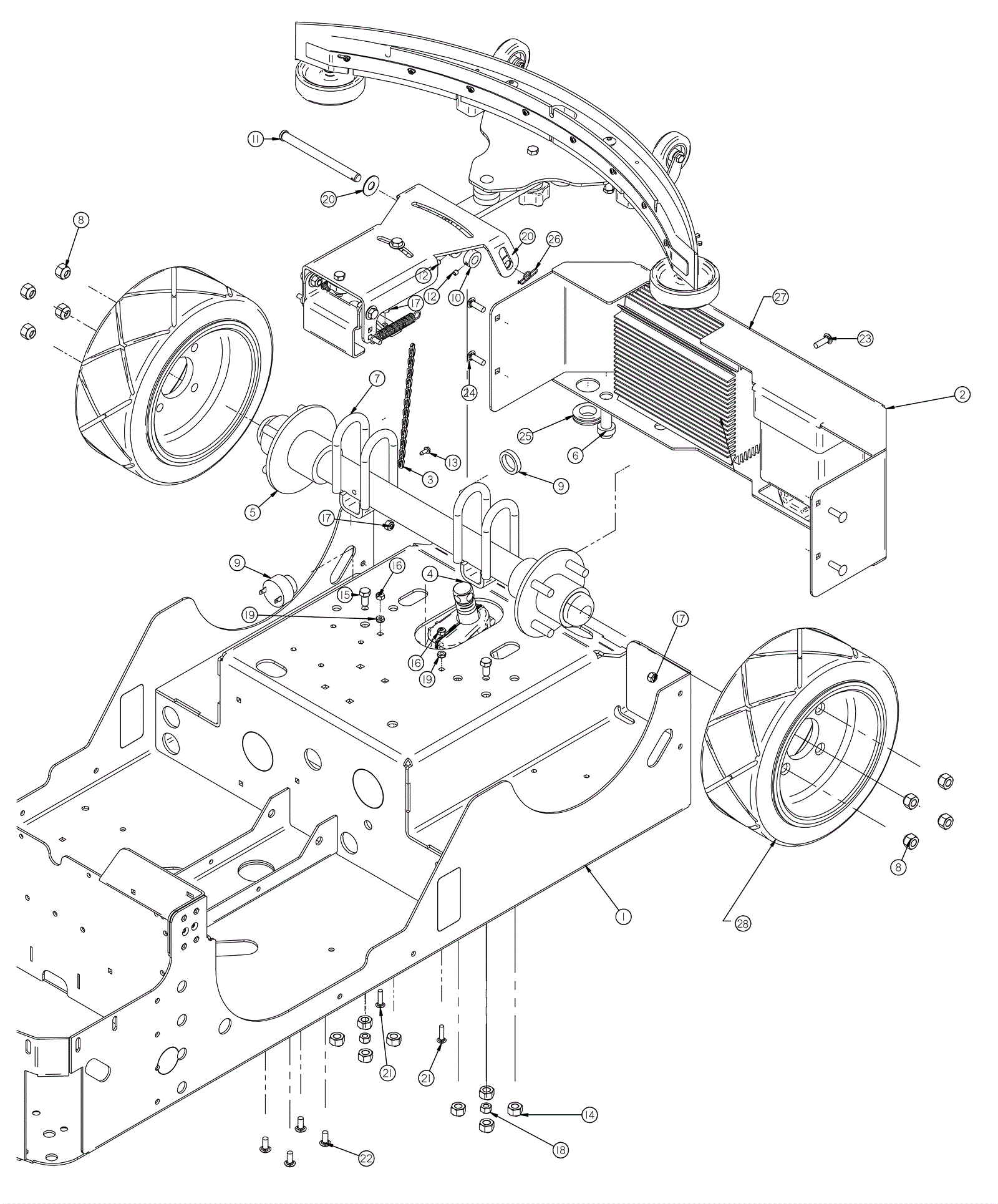

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5135
|
Main frame |
1 |
|
|
2 |
202-5141
|
Rear soap bumper |
1 |
|
|
3 |
202-3378
|
8 inch brass chain |
1 |
|
|
4 |
202-1932
|
36V actuator |
1 |
|
|
5 |
202-1909
|
Rear axle |
1 |
|
|
6 |
202-3464
|
Charger status indicator |
1 |
|
|
7 |
202-1154
|
U bolt 1/2-13 x 1 1/4 |
4 |
|
|
8 |
202-1153
|
Nut 1/2-20 lug |
8 |
|
|
10 |
202-3222
|
Shaft collar with set screw |
2 |
|
|
11 |
202-5142
|
Clevis pin |
1 |
|
|
12 |
202-3154
|
Screw 1/4-20 x 1/4 set |
2 |
|
|
13 |
202-1985
|
Screw 10 x 1/2 hex washer head |
1 |
|
|
14 |
999-0842
|
Nut 1/2-20 nylon insert lock zinc plated |
8 |
|
|
15 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
2 |
|
|
16 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
18 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
19 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
|
20 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
21 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
2 |
|
|
22 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
4 |
|
|
23 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
3 |
|
|
24 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
25 |
202-2592
|
Grommet |
1 |
|
|
26 |
202-2059
|
Cotter ring |
1 |
|
|
27a |
202-5141
|
Rear soap bumper |
1 |
|
|
27b |
202-2008
|
Rear bumper |
1 |
|
|
28b |
202-1288
|
Rear wheel |
2 |
|
|
28c |
202-0724
|
Rear wheel (black) |
2 |
|
|
28d |
202-0724
|
Rear wheel (black) |
2 |
(After SN 59018) |
|
