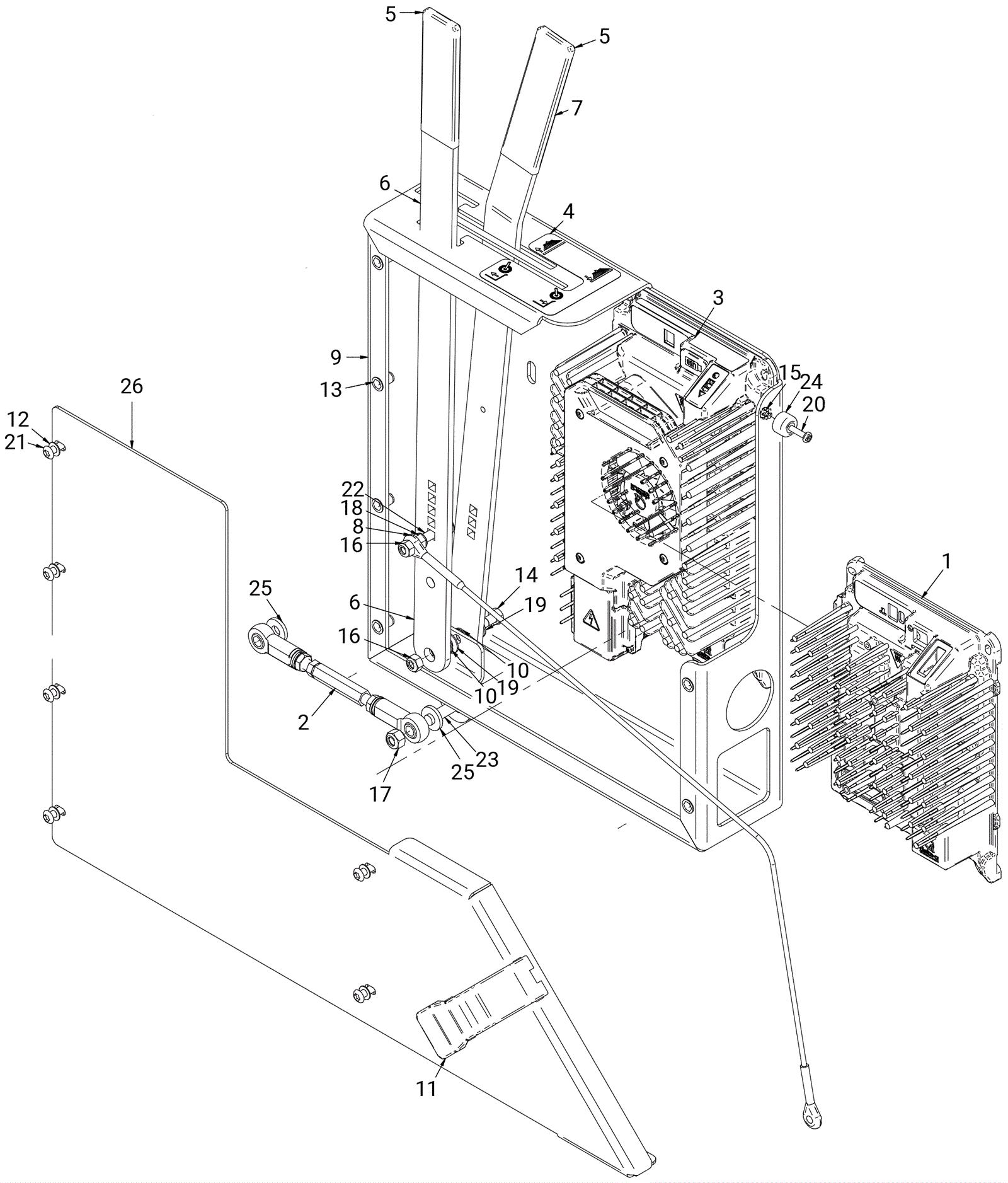

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-5723
|
12V 27AH onboard charger |
$1,204.39
|
1 |
|
usually ships 8-12 days |
2 |
202-5276
|
Adjustable lateral arm |
$74.14
|
1 |
|
usually ships 8-12 days |
3 |
202-7022
|
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
$1,439.46
|
1 |
|
usually ships 8-12 days |
4 |
202-4385
|
Decal set |
$43.54
|
1 |
|
usually ships 1-5 days |
5 |
202-4417
|
Lift arm grip (yellow) |
Call for price
|
2 |
|
usually ships 1-5 days |
6 |
202-5269
|
Main broom lift lever |
$46.53
|
1 |
|
usually ships 1-5 days |
7 |
202-5271
|
Side broom lever |
$48.29
|
1 |
|
usually ships 1-5 days |
8 |
202-3454
|
Side broom cable |
$94.90
|
1 |
|
usually ships 1-5 days |
9 |
202-4418
|
Broom lift box |
$271.91
|
1 |
|
usually ships 1-5 days |
10 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
$12.87
|
2 |
|
usually ships 8-12 days |
11 |
202-4232
|
Clip |
Call for price
|
1 |
|
usually ships 8-12 days |
12 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
$5.50
|
6 |
|
ships same day |
13 |
202-5284
|
Nut 1/4-20 hex crimp long |
$5.50
|
6 |
|
usually ships 1-5 days |
14 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
15 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
16 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
3 |
|
ships same day |
17 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
$1.06
|
1 |
|
ships same day |
18 |
999-1838
|
Nut 5/16-18 keps lock with external tooth lockwasher |
$0.99
|
1 |
|
usually ships 1-5 days |
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
20 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
$0.99
|
1 |
|
ships same day |
21 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.99
|
6 |
|
ships same day |
22 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
$1.39
|
1 |
|
ships same day |
23 |
999-1348
|
Bolt 3/8-16 x 1 1/2 carriage head stainless steel |
$3.30
|
1 |
|
ships same day |
24 |
202-3275
|
Rubber bumper |
$5.50
|
1 |
|
usually ships 8-12 days |
25 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
2 |
|
ships same day |
26a |
202-4419
|
Left hand access cover (red) |
$244.35
|
1 |
|
usually ships 1-5 days |
26b |
202-4420
|
Left hand access cover (granite) |
$244.35
|
1 |
|
usually ships 1-5 days |
26c |
202-4421
|
Left hand access cover (black) |
Call for price
|
1 |
|
usually ships 1-5 days |
