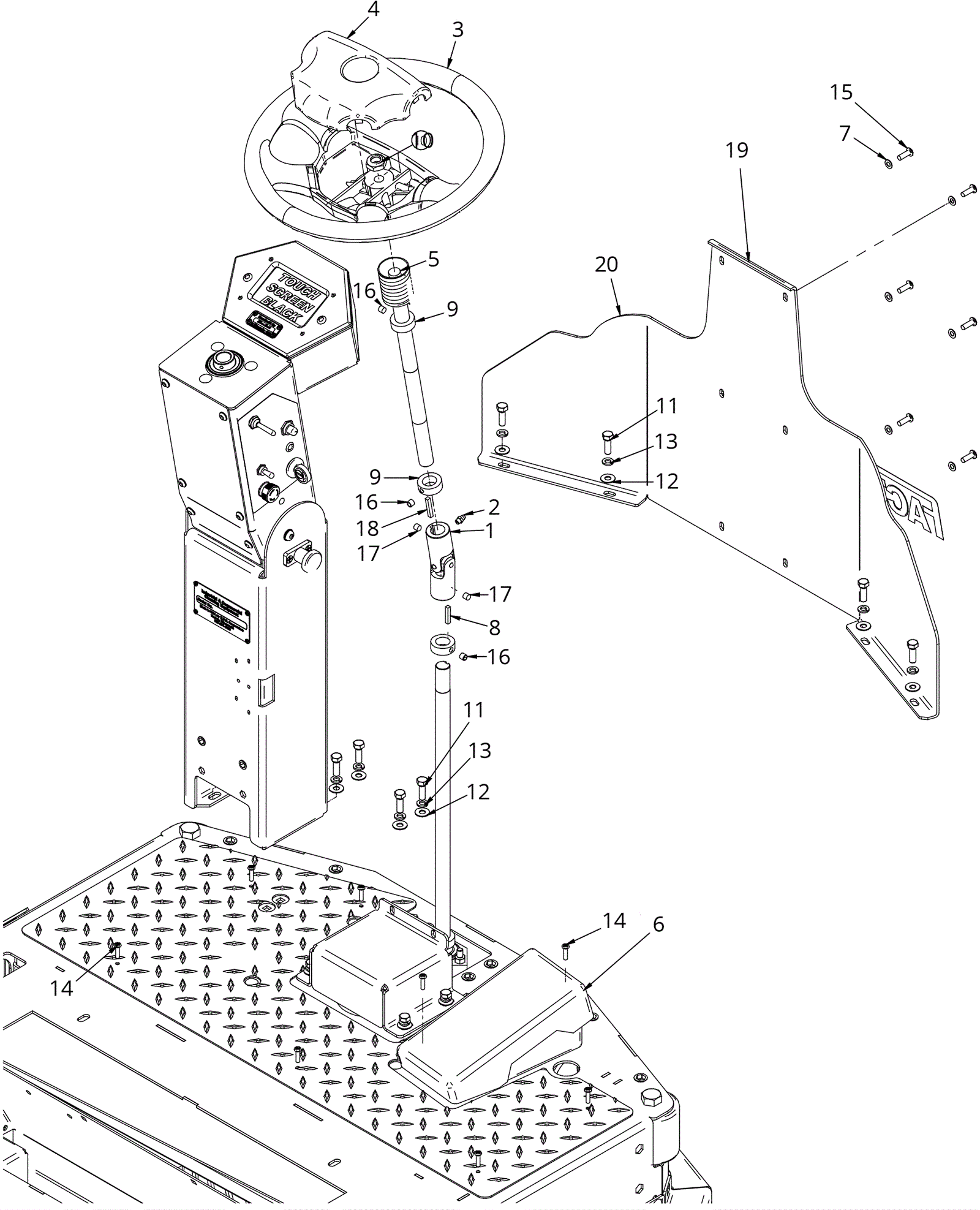

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-0760
|
U-joint |
$131.23
|
1 |
|
usually ships 8-12 days |
2 |
202-2404
|
Fitting |
$5.50
|
1 |
|
usually ships 1-5 days |
3 |
302-0039
|
Steering wheel |
$58.66
|
1 |
|
usually ships 8-12 days |
4 |
302-0040
|
Steering wheel cover |
$13.92
|
1 |
|
usually ships 8-12 days |
5 |
302-0041
|
Upper steering shaft |
Call for price
|
1 |
|
usually ships 8-12 days |
6 |
202-0362
|
Foot pedal assembly (includes potentiometer) |
$657.18
|
1 |
|
usually ships 8-12 days |
7 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
$5.50
|
6 |
|
ships same day |
8 |
202-0847
|
Square keyway |
$5.50
|
1 |
|
usually ships 8-12 days |
9 |
202-2216
|
Shaft collar with set screw |
$5.50
|
3 |
|
usually ships 8-12 days |
10 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
$2.27
|
1 |
|
ships same day |
11 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
10 |
|
ships same day |
12 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
10 |
|
ships same day |
13 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
10 |
|
ships same day |
14 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
$0.99
|
5 |
|
ships same day |
15 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.99
|
6 |
|
ships same day |
16 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
$0.99
|
3 |
|
ships same day |
17 |
999-1837
|
Screw 5/16-24 1/4 knurled point socket set |
$0.99
|
2 |
|
usually ships 1-5 days |
18 |
202-0140
|
Steering shaft key |
$5.50
|
1 |
|
usually ships 8-12 days |
19 |
202-4392
|
Rubber trim |
Call for price
|
1 |
|
usually ships 1-5 days |
20a |
202-3823
|
Front apron (red) |
$1,330.54
|
1 |
|
usually ships 8-12 days |
20b |
202-3822
|
Front apron (granite) |
Call for price
|
1 |
|
usually ships 8-12 days |
20c |
202-4393
|
Front apron (black) |
Call for price
|
1 |
|
usually ships 1-5 days |
