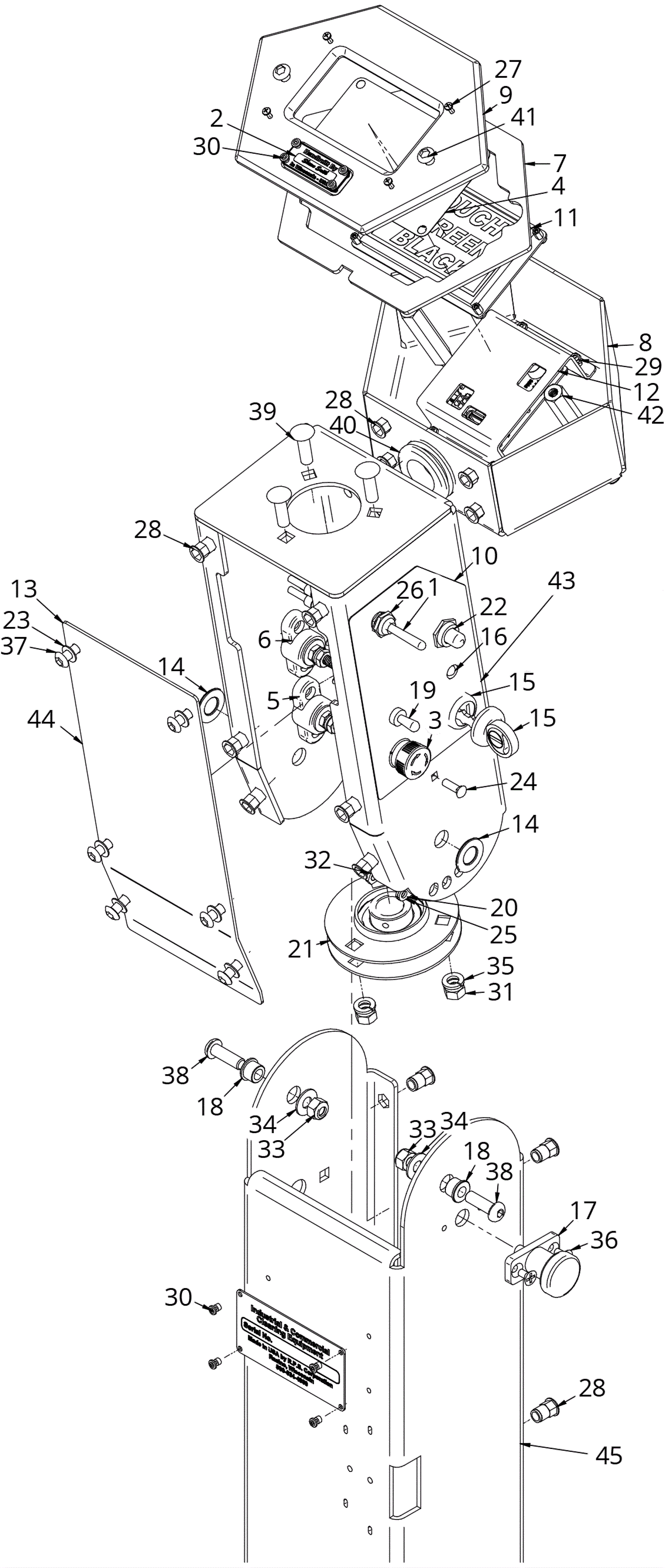

TR Steering Tower Assembly - Touch Screen

#PartDescriptionPriceReqNotesAvailability
1 202-5396 Toggle switch $49.50 1 usually ships 8-12 days
2 302-0032 Built by plate Call for price 1 usually ships 8-12 days
3 202-4191 Emergency stop button $165.33 1 ships same day
4 302-0033 Screen protector $5.72 1 usually ships 8-12 days
5 202-6396 Power Post, Black, 1/4 Terminal $8.58 1 usually ships 8-12 days
6 202-6397 Power Post, Red, 1/4 Terminal $8.91 1 usually ships 8-12 days
7 302-0029 Gasket Call for price 1 usually ships 8-12 days
8 302-0034 Touchscreen dash board $219.51 1 usually ships 8-12 days
9 302-0035 Touchscreen dash top $387.52 1 usually ships 8-12 days
10 302-0019 K42 decal set $33.21 1 usually ships 8-12 days
11 302-0036 4 inch display $503.54 1 usually ships 8-12 days
12 302-0036 4 inch display $503.54 1 usually ships 8-12 days
13 202-0716 Pedestal cover (red) $30.47 1 usually ships 1-5 days
14 202-1181 Washer 1/2 flat bronze $5.50 2 usually ships 8-12 days
15 202-2300 Key switch with key entry (red) and ring (black) $33.55 1 ships same day
16 202-7204 Light,24V,Yellow,Bulb Style $31.13 1 usually ships 8-12 days
17 202-0719 Index plunger $70.07 1 usually ships 8-12 days
18 202-3312 Flanged bearing $7.04 2 usually ships 8-12 days
19 202-0097 Toggle switch $15.73 1 usually ships 8-12 days
20 202-0142 Upper steering bearing $31.24 1 usually ships 8-12 days
21 202-0143 Bearing mount $15.84 2 usually ships 1-5 days
22 202-0381 Horn button $34.65 1 usually ships 8-12 days
23 202-1196 Washer 17/64 x 21/64 nylon flat $5.50 6 ships same day
24 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 1 usually ships 1-5 days
25 202-2431 P clamp $5.50 1 usually ships 1-5 days
26 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 8-12 days
27 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
28 999-0190 Nut 1/4-20 hex plain finish $0.99 16 ships same day
29 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 4 ships same day
30 202-3315 Blind rivet $5.50 8 usually ships 1-5 days
31 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
32 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
33 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
34 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
35 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
36 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel $0.99 2 ships same day
37 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 6 ships same day
38 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 2 ships same day
39 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 3 ships same day
40 202-2592 Grommet $5.50 1 usually ships 8-12 days
41 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 3 ships same day
42 302-0037 Female 1/4-20 x 2 1/2 standoff Call for price 2 usually ships 8-12 days
43a 202-0715 Upper steering column (red) $152.99 1 usually ships 8-12 days
43b 202-2012 Upper steering column (granite) $204.16 1 usually ships 1-5 days
43c 202-4386 Steering pedestal (black) Call for price 1 usually ships 1-5 days
44a 202-0716 Pedestal cover (red) $30.47 1 usually ships 1-5 days
44b 202-2013 Pedestal cover (granite) $55.66 1 usually ships 1-5 days
44c 202-4391 Steering pedestal cover (black) Call for price 1 usually ships 1-5 days
45a 202-4331 Lower steering pedestal (red) $240.06 1 usually ships 8-12 days
45b 202-4332 Lower pedestal with crimp nuts (granite) $225.53 1 usually ships 8-12 days
45c 202-4390 Lower steering pedestal (black) $216.80 1 usually ships 1-5 days
