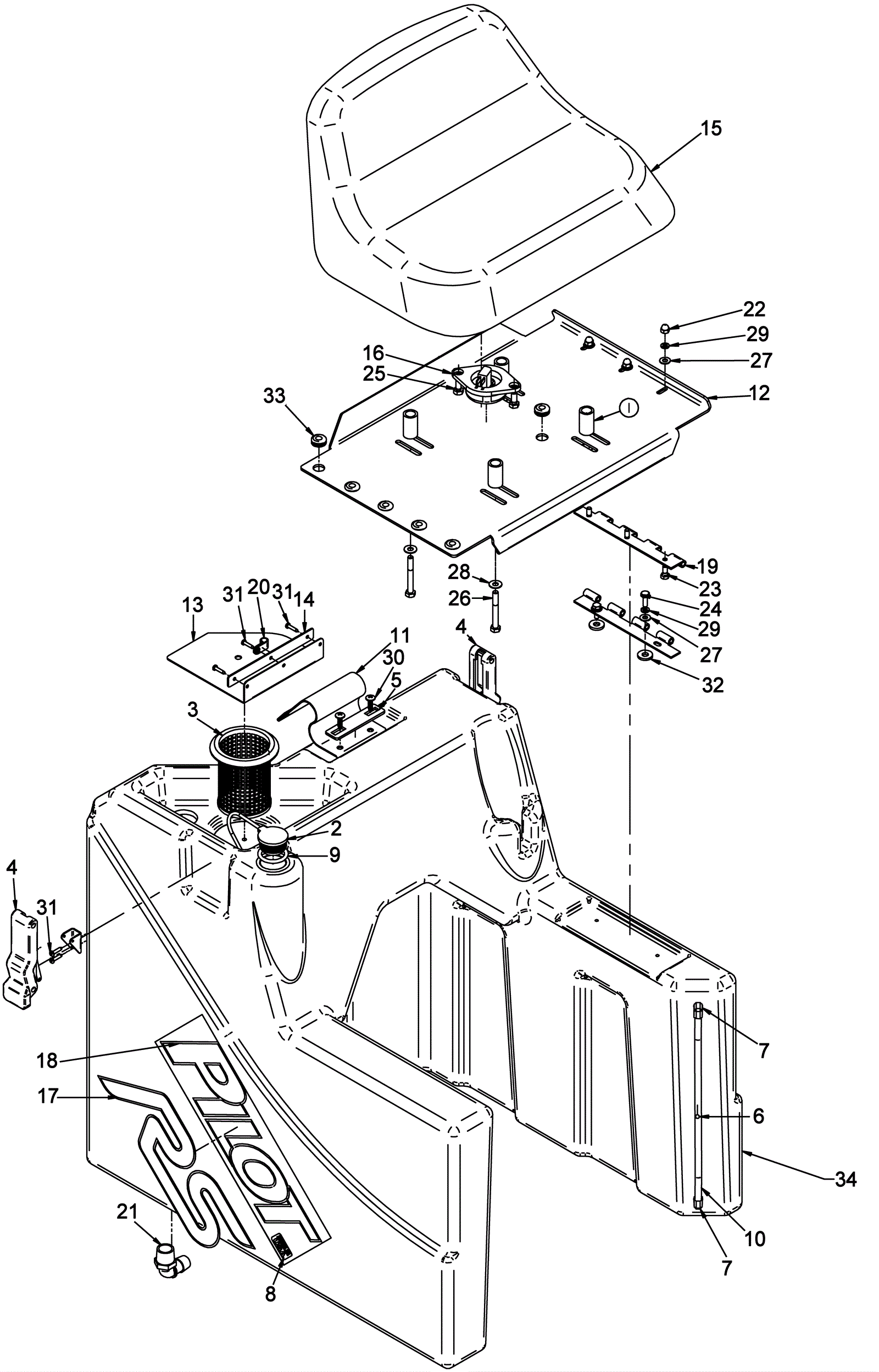

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3468
|
Spacer |
4 |
|
|
2 |
202-3373
|
Drain hose cap |
1 |
|
|
3 |
202-3036
|
Strainer screen |
1 |
|
|
4 |
202-5630
|
Soft draw latch |
2 |
|
|
5 |
202-3279
|
Tank support strap |
1 |
|
|
6 |
202-0692
|
Polypropylene ball |
1 |
|
|
7 |
202-0686
|
90 degree barb 1/4 x 1/4 |
2 |
|
|
8 |
202-5631
|
USA decal |
2 |
|
|
9 |
202-4106
|
O-ring |
1 |
|
|
10 |
202-5632
|
Sight tube (OBSOLETE) |
1 |
|
|
11 |
202-5633
|
Tank strap |
1 |
|
|
12 |
202-5634
|
Battery lid |
1 |
|
|
13 |
202-5635
|
Splash curtain |
1 |
|
|
14 |
202-5636
|
Curtain band |
1 |
|
|
15 |
202-5637
|
Seat with brackets |
1 |
|
|
16 |
202-5638
|
Seat switch |
1 |
|
|
17 |
202-5639
|
RS decal |
1 |
|
|
18 |
202-5640
|
Pilot decal |
2 |
|
|
19 |
202-5641
|
Flanged hinge |
1 |
(hinge does not come apart) |
|
20 |
202-2431
|
P clamp |
1 |
|
|
21 |
202-0884
|
Barbed elbow |
1 |
|
|
22 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
3 |
|
|
23 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
3 |
|
|
24 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
25 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
26 |
999-1927
|
Screw 5/16-18 x 2-1/2 hex cap SS |
4 |
|
|
27 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
28 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
29 |
999-0632
|
Washer 1/4 split lock stainless steel |
5 |
|
|
30 |
999-1290
|
Screw #14 x 1 truss head phillips stainless steel |
2 |
|
|
31 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
7 |
|
|
32 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
33 |
202-3348
|
Rubber grommet |
6 |
|
|
34a |
202-5642
|
Solution tank (red) |
1 |
|
|
34b |
202-5643
|
Solution tank (granite) |
1 |
|
|
