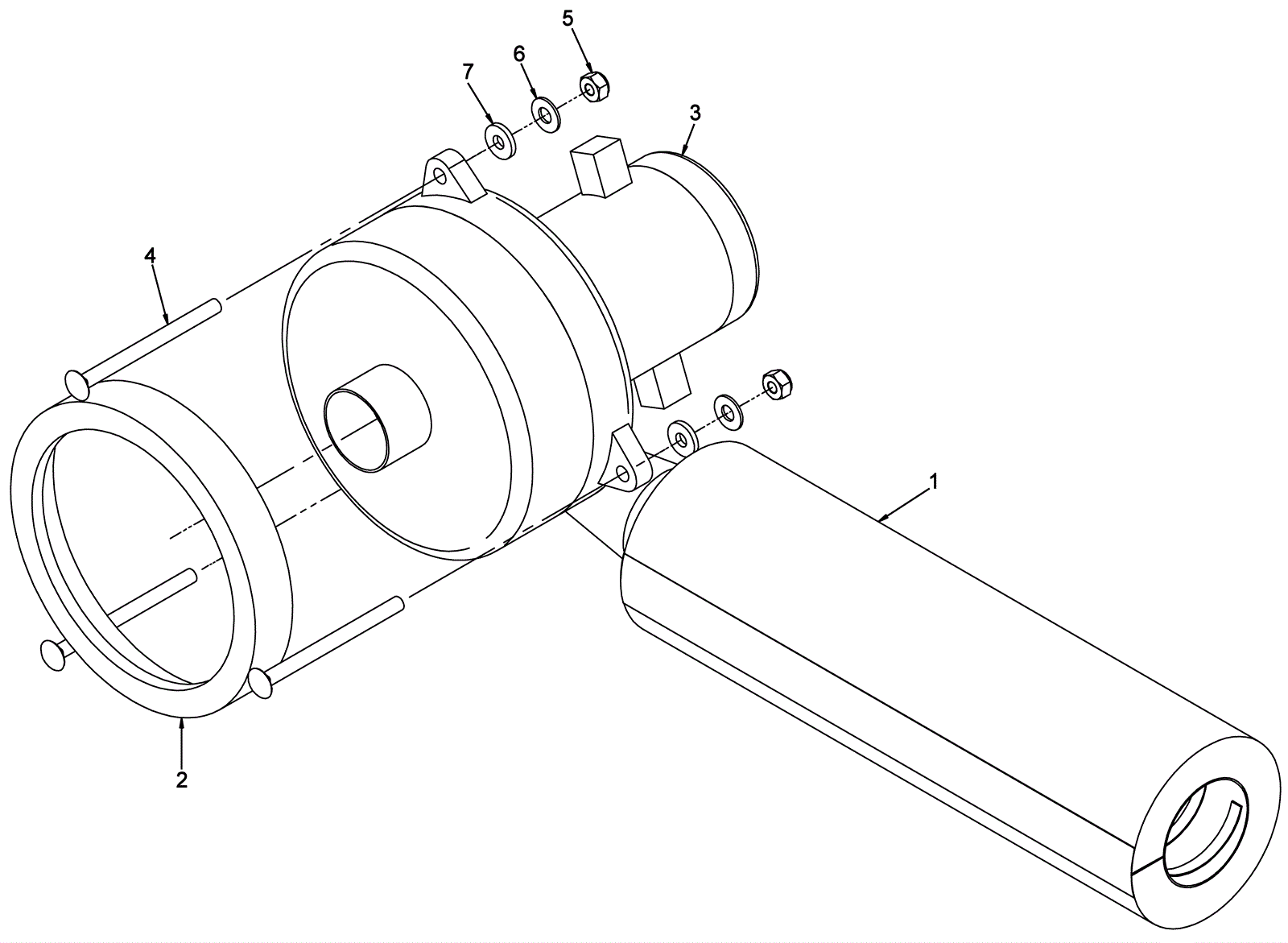

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6394
|
Muffler, Vac Fan |
1 |
|
|
2 |
202-0022
|
Vacuum motor mounting gasket |
1 |
|
|
3 |
202-5628
|
36V 2 stage vac motor |
1 |
|
|
4 |
999-1925
|
Bolt 1/4-20 x 3-1/4 round head carriage SS |
3 |
|
|
5 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
6 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
7 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
3 |
|
|
