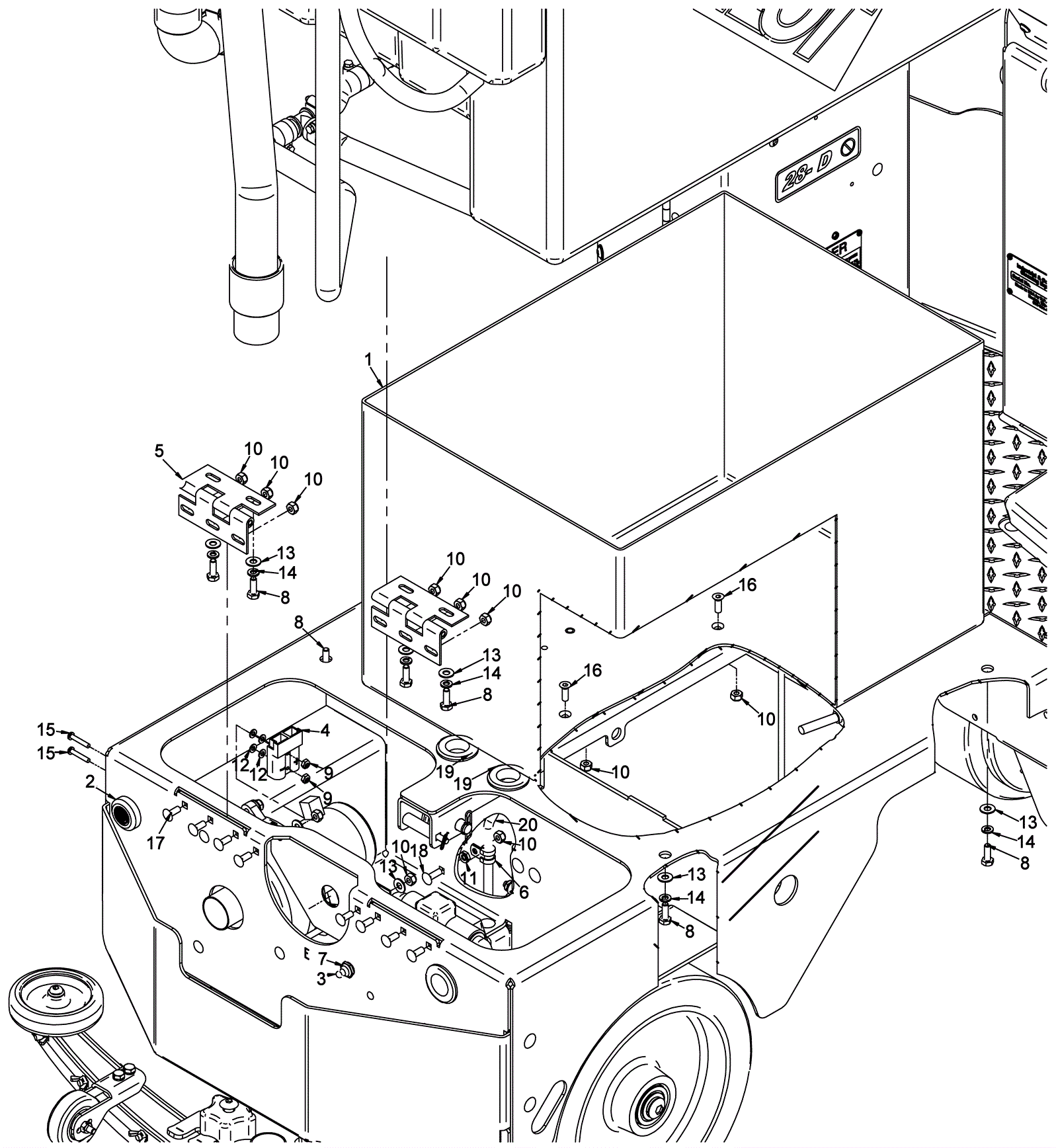

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5188
|
Battery tray |
1 |
|
|
3 |
202-0097
|
Toggle switch |
1 |
|
|
4 |
202-2009
|
50amp connector (gray) |
1 |
|
|
5 |
202-5626
|
4 inch hinge stainless steel |
2 |
|
|
6 |
202-2189
|
Loop clamp rubber |
1 |
|
|
7 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
8 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
8 |
|
|
9 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
10 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
10 |
|
|
11 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
|
12 |
999-0266
|
Washer #8 SAE flat stainless steel |
5 |
|
|
13 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
9 |
|
|
14 |
999-0632
|
Washer 1/4 split lock stainless steel |
8 |
|
|
15 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
16 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
2 |
|
|
17 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
6 |
|
|
18 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
|
19 |
202-2592
|
Grommet |
2 |
|
|
20 |
202-5627
|
Battery drain hose (OBSOLETE) |
1 |
|
|
