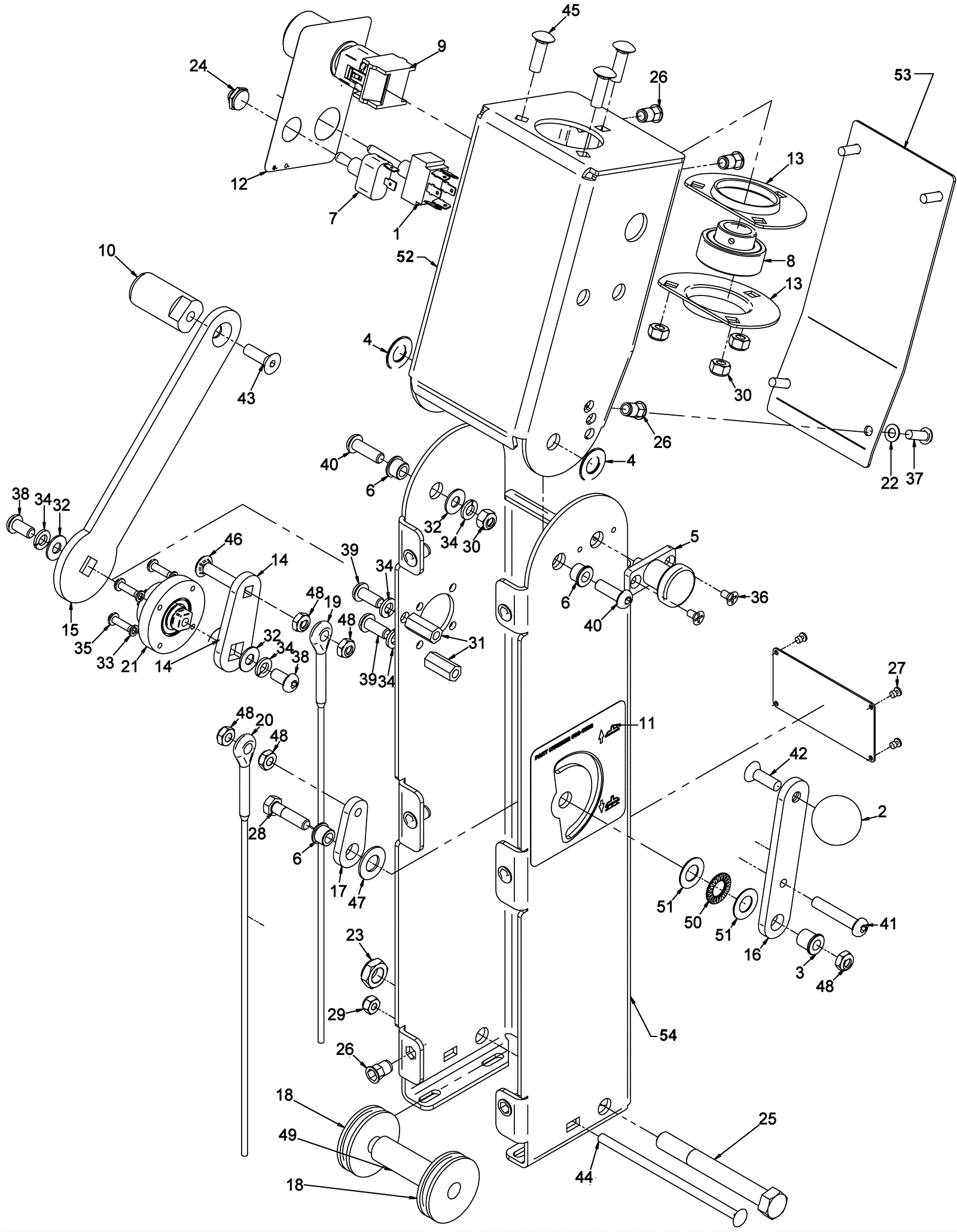

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5396
|
Toggle switch |
1 |
|
|
3 |
202-3212
|
53 inch squeegee assembly |
1 |
|
|
4 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
5 |
202-0719
|
Index plunger |
1 |
|
|
6 |
202-3312
|
Flanged bearing |
3 |
|
|
7 |
202-0097
|
Toggle switch |
1 |
|
|
8 |
202-0142
|
Upper steering bearing |
1 |
|
|
9 |
202-0826
|
Emergency shut-off switch |
1 |
|
|
10 |
202-5616
|
Lift handle |
1 |
|
|
11 |
202-5617
|
Squeegee lift lever decal |
1 |
|
|
12 |
202-5618
|
Horn decal |
1 |
|
|
13 |
202-5619
|
1 3/4 inch flange |
2 |
|
|
14 |
202-5620
|
Scrub deck lift cam |
1 |
|
|
15 |
202-5621
|
Scrub deck lift lever |
1 |
|
|
16 |
202-5622
|
Squeegee lift lever |
1 |
|
|
17 |
202-5623
|
Squeegee cam |
1 |
|
|
18 |
202-5602
|
2 inch nylon pulley |
2 |
|
|
19 |
202-5584
|
Deck lift cable |
1 |
|
|
20 |
202-5596
|
Squeegee lift cable |
1 |
|
|
21 |
202-5624
|
Bearing housing assembly |
1 |
|
|
22 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
4 |
|
|
23 |
999-9119
|
Nut 1/2-13 nylon hex jam |
1 |
|
|
24 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
25 |
999-1920
|
Screw 1/2-13 x 5-1/2 hex cap grade 5 zinc |
1 |
|
|
26 |
999-0190
|
Nut 1/4-20 hex plain finish |
10 |
|
|
27 |
202-3315
|
Blind rivet |
4 |
|
|
28 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
|
29 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
30 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
31 |
999-1921
|
Nut 5/16-18 x 1 coupling SS |
2 |
|
|
32 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
33 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
34 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
6 |
|
|
35a |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
4 |
|
|
35b |
999-1487
|
Screw 10-32 x 5/8 pan head phillips stainless steel |
4 |
|
|
36 |
999-1509
|
Screw 10-32 x 3/8 flat head phillips stainless steel |
2 |
|
|
37 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
4 |
|
|
38 |
999-1922
|
Screw 5/16-18 x 5/8 hex button cap SS |
2 |
|
|
39 |
202-2372
|
Bolt 5/16-18 x 3/4 inch button head socket cap |
2 |
|
|
40 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
|
41 |
999-1913
|
Screw 5/16-18 x 1 3/4 button head socket cap stainless steel |
1 |
|
|
42 |
999-0734
|
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
1 |
|
|
43 |
999-1923
|
Screw 3/8-16 x 1 flat socket cap SS |
1 |
|
|
44 |
999-1924
|
Bolt 1/4-20 x 5-1/2 round head carriage SS |
1 |
|
|
45 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
3 |
|
|
46 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
1 |
|
|
47 |
999-0566
|
Washer 1/2 flat nylon |
1 |
|
|
48 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
5 |
|
|
49 |
202-5625
|
Spacer tubing (OBSOLETE) |
1 |
|
|
50 |
202-5232
|
Roller thrust bearing |
1 |
|
|
51 |
202-5233
|
Thrust bearing washer |
2 |
|
|
52a |
202-5694
|
Upper steering tower (granite) |
1 |
|
|
52b |
202-5695
|
Upper steering tower (red) |
1 |
|
|
53a |
202-5696
|
Steering pedestal cover (granite) |
1 |
|
|
53b |
202-5697
|
Steering pedestal cover (red) |
1 |
|
|
54a |
202-5698
|
Lower steering pedestal (granite) |
1 |
|
|
54b |
202-5699
|
Lower steering pedestal (red) |
1 |
|
|
