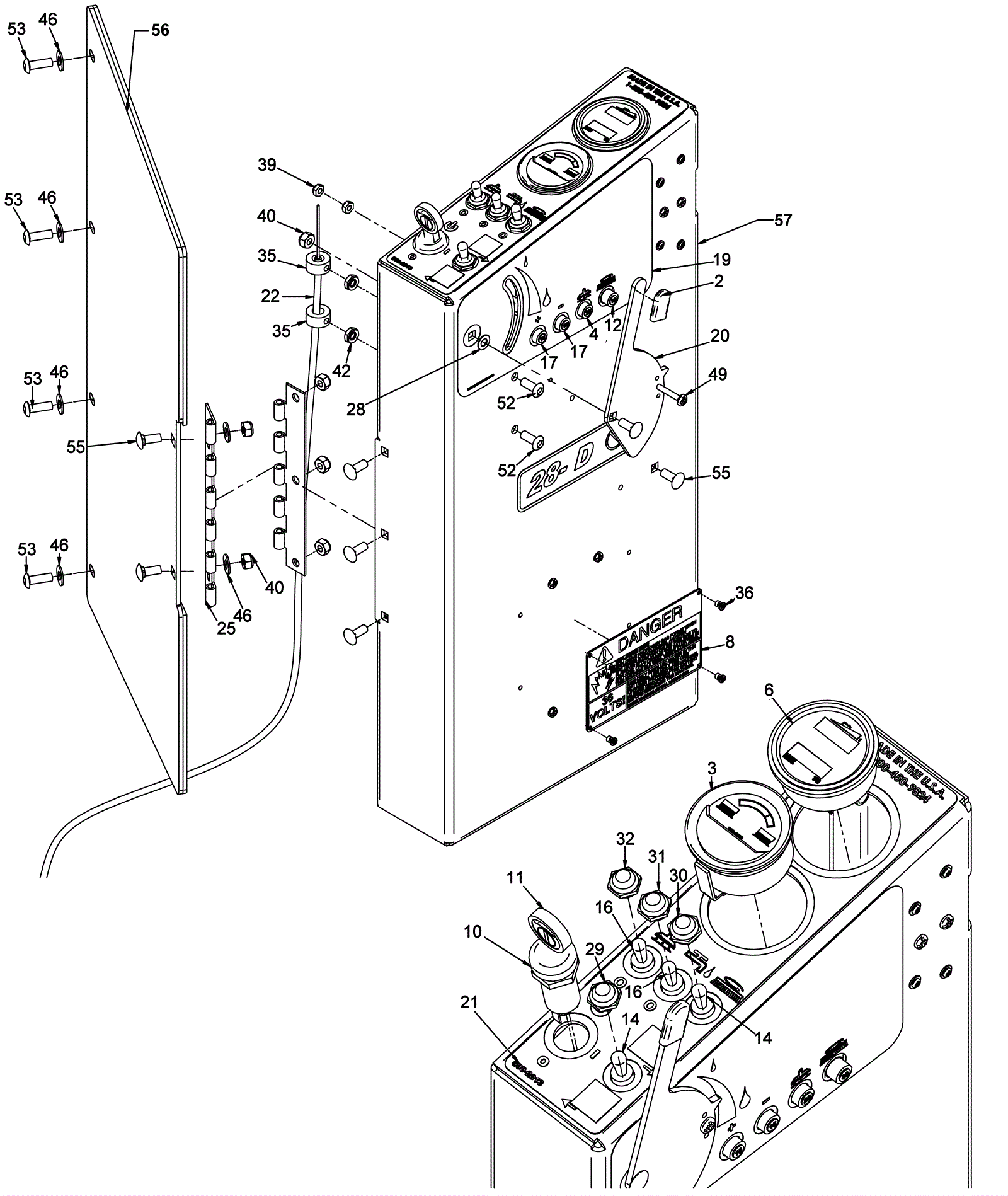

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
202-5386
|
Handle grip (blue) |
1 |
|
|
3 |
202-4159
|
40amp brush pressure gauge |
1 |
|
|
4 |
202-2241
|
25amp resettable fuse |
1 |
|
|
6 |
202-5609
|
36V battery/hour meter |
1 |
|
|
8 |
202-5610
|
36V battery warning plate |
1 |
|
|
10 |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
|
|
11 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
12 |
202-2242
|
30amp fuse |
1 |
|
|
14 |
202-1992
|
Toggle switch |
2 |
|
|
16 |
202-0097
|
Toggle switch |
2 |
|
|
17 |
202-2499
|
15amp fuse |
2 |
|
|
19 |
202-5611
|
Front control panel decal |
1 |
|
|
20 |
202-5612
|
Valve lever |
1 |
|
|
21 |
202-5613
|
Top control panel decal |
1 |
|
|
24 |
202-0541
|
Busbar |
2 |
|
|
25 |
202-0704
|
Hinge |
1 |
(hinge does not come apart) |
|
28 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
1 |
|
|
29 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
30 |
202-1977
|
Toggle switch protective boot (yellow) |
1 |
|
|
31 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
32 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
35 |
202-2964
|
Shaft collar |
2 |
|
|
36 |
202-3315
|
Blind rivet |
4 |
|
|
39 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
40 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
42 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
|
46 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
7 |
|
|
49 |
999-1918
|
Screw #8-32 x 1 1/4 phillips pan head SS |
1 |
|
|
52 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
2 |
|
|
53 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
4 |
|
|
55 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
7 |
|
|
56a |
202-3311
|
Access cover (red) |
1 |
|
|
56b |
202-2574
|
Access cover (granite) |
1 |
|
|
57a |
202-5692
|
Control panel (red) |
1 |
|
|
57b |
202-5693
|
Control panel (granite) |
1 |
|
|
