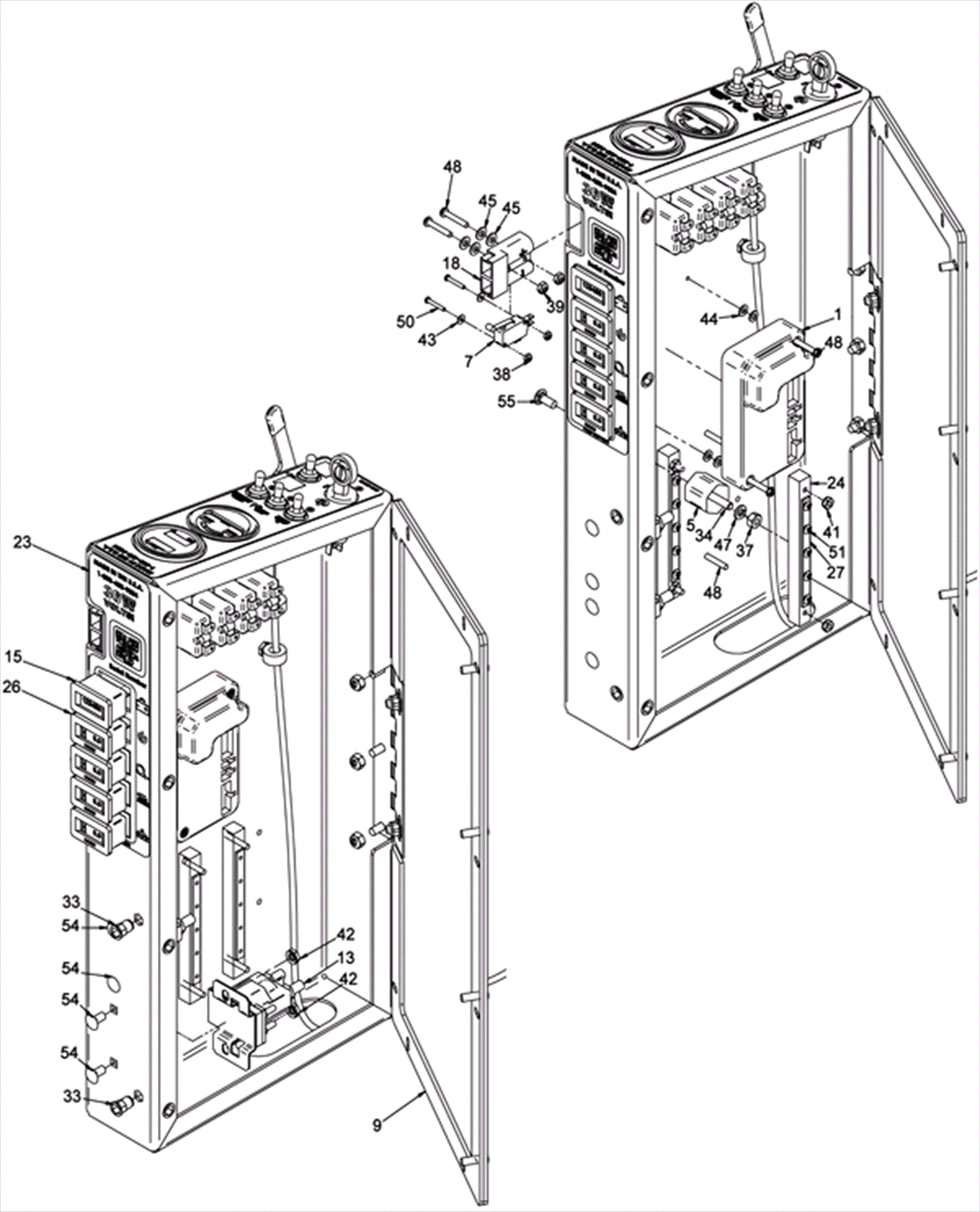

| # | Part | Description |
Req | Notes | Availability |
|---|
5 |
202-2858
|
Switchboard insulator |
1 |
|
|
7 |
202-0721
|
Microswitch |
2 |
|
|
9 |
202-0818
|
Access cover gasket |
1 |
|
|
13 |
202-3307
|
36V relay with mounting plate |
2 |
|
|
15 |
202-5155
|
Hour meter |
1 |
|
|
18 |
202-2009
|
50amp connector (gray) |
1 |
|
|
23 |
202-5614
|
Meter decal |
1 |
|
|
24 |
202-0541
|
Busbar |
2 |
|
|
26 |
202-0376
|
Hour meter |
4 |
|
|
27 |
202-0830
|
Busbar (5 hole) |
2 |
|
|
33 |
999-0190
|
Nut 1/4-20 hex plain finish |
6 |
|
|
34 |
202-0857
|
Stud 1/4-20 x 1 |
1 |
|
|
37 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
38 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
39 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
41 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
4 |
|
|
42 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
|
43 |
202-2461
|
Washer 4 x 5/16 flat stainless steel |
4 |
|
|
44 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
45 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
47 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
48 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
8 |
|
|
50 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
4 |
|
|
51 |
999-1919
|
#8-15 x 1/2 phillips pan head sheet metal SS |
10 |
|
|
55 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
7 |
|
|
