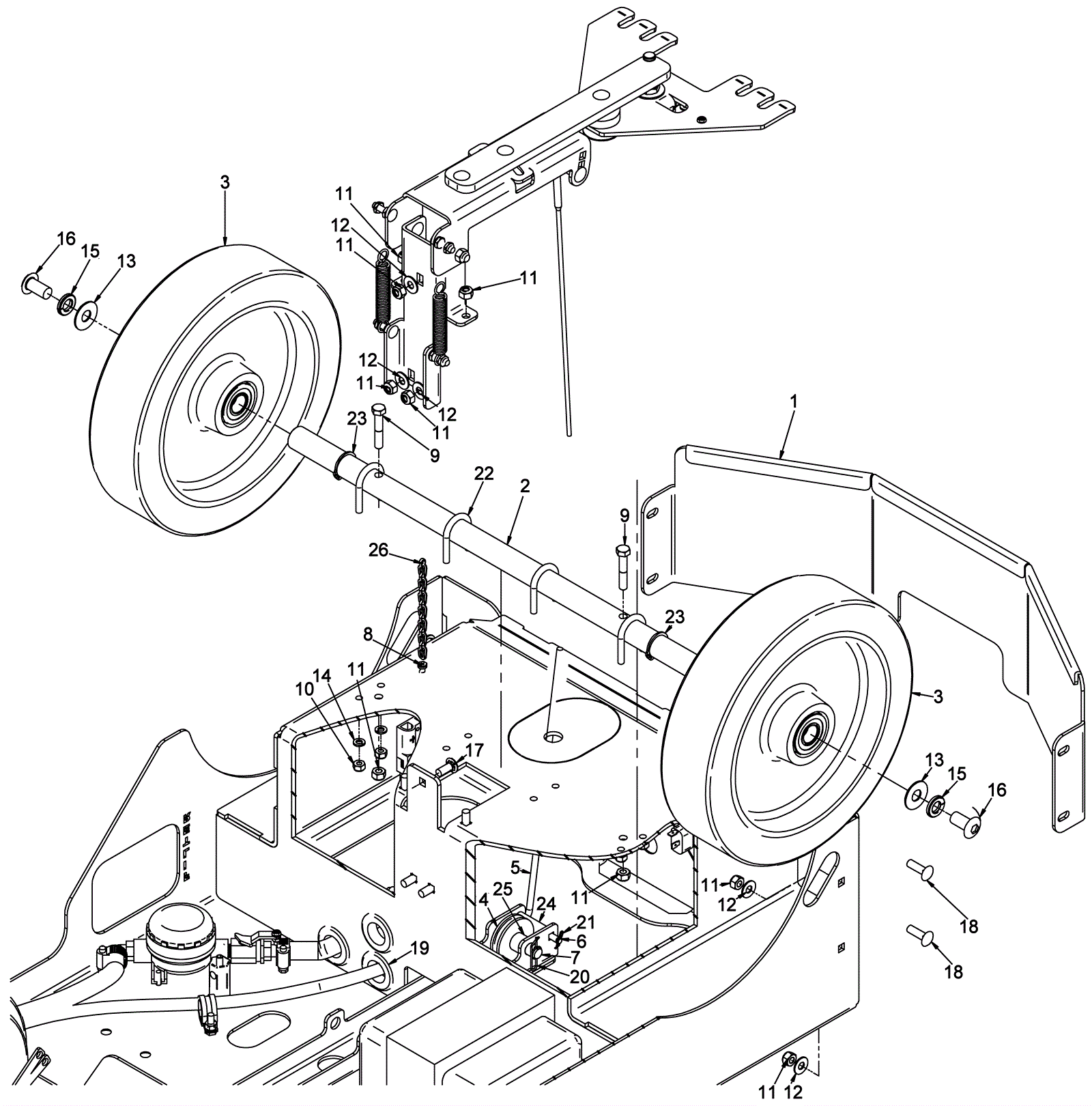

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5599
|
Rear bumper |
1 |
|
|
2 |
202-5600
|
Axle |
1 |
|
|
3 |
202-5601
|
Poly wheel assembly (gray) |
2 |
|
|
4 |
202-5602
|
2 inch nylon pulley |
1 |
|
|
5 |
202-5596
|
Squeegee lift cable |
1 |
|
|
6 |
999-1916
|
Clevis pin 1/4 x 2 1/2 |
1 |
|
|
7 |
202-4141
|
Clevis pin 1/2 x 2 1/2 inch |
1 |
|
|
8 |
202-1985
|
Screw 10 x 1/2 hex washer head |
1 |
|
|
9 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
|
10 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
11 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
|
|
12 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
13 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
14 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
15 |
999-0560
|
Washer 1/2 lock stainless steel |
2 |
|
|
16 |
999-1917
|
Screw 1/2-13 x 1 button socket cap SS |
2 |
|
|
17 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
|
18 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
19 |
202-2592
|
Grommet |
3 |
|
|
20 |
202-2059
|
Cotter ring |
1 |
|
|
21 |
202-0585
|
Cotter ring |
1 |
|
|
22 |
202-5603
|
U-bolt 1/4-20 x 1 |
4 |
|
|
23 |
202-5604
|
External retaining ring (OBSOLETE) |
2 |
|
|
24 |
202-5605
|
Cable guide (OBSOLETE) |
1 |
|
|
25 |
202-5606
|
Cable guide (OBSOLETE) |
1 |
|
|
26 |
202-5539
|
6 inch flat chain |
1 |
|
|
