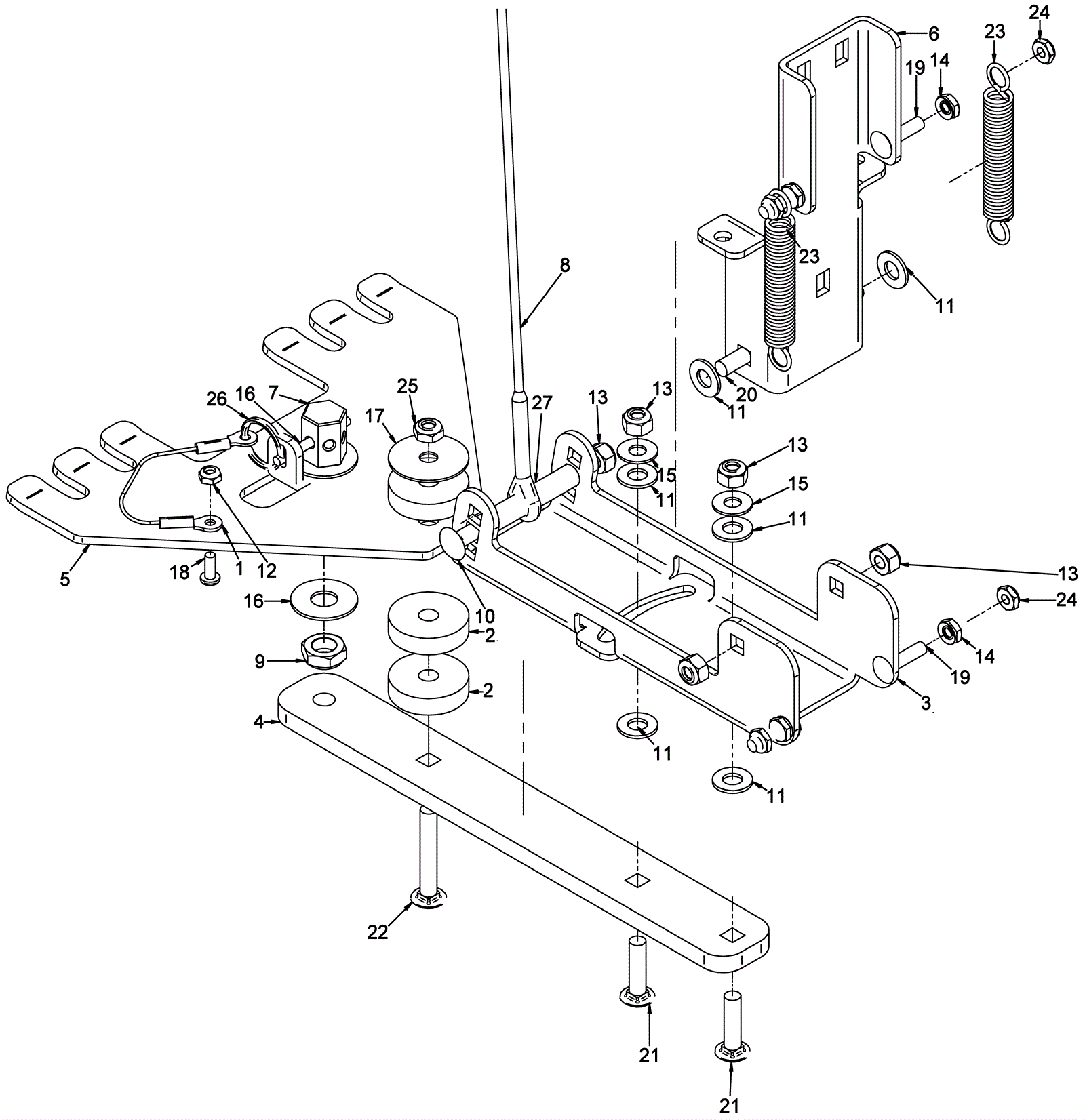

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0902
|
Lanyard |
1 |
|
|
2 |
202-0151
|
Grommet |
3 |
|
|
3 |
202-5591
|
Squeegee swing plate |
1 |
|
|
4 |
202-5592
|
Squeegee trail arm |
1 |
|
|
5 |
202-5593
|
Squeegee triangle plate |
1 |
|
|
6 |
202-5594
|
Squeegee drag bracket |
1 |
|
|
7 |
202-5595
|
Squeegee adjustment rod |
1 |
|
|
8 |
202-5596
|
Squeegee lift cable |
1 |
|
|
9 |
999-9119
|
Nut 1/2-13 nylon hex jam |
1 |
|
|
10 |
999-1915
|
Bolt 5/16-18 x 3 1/4 round head carriage SS |
1 |
|
|
11 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
6 |
|
|
12 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
14 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
4 |
|
|
15 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
16 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
17 |
999-1213
|
Washer 5/16 x 1 1/2 fender stainless steel |
1 |
|
|
18 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
1 |
|
|
19 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
4 |
|
|
20 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
21 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
2 |
|
|
22 |
202-2100
|
Bolt 5/16-18 x 2 carriage head |
1 |
|
|
23 |
202-2208
|
Compression spring |
2 |
|
|
24 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
|
25 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
26 |
202-5597
|
Ring pin 3/16 x 1 1/2 |
1 |
|
|
27 |
202-5598
|
Hose (OBSOLETE) |
2 |
|
|
