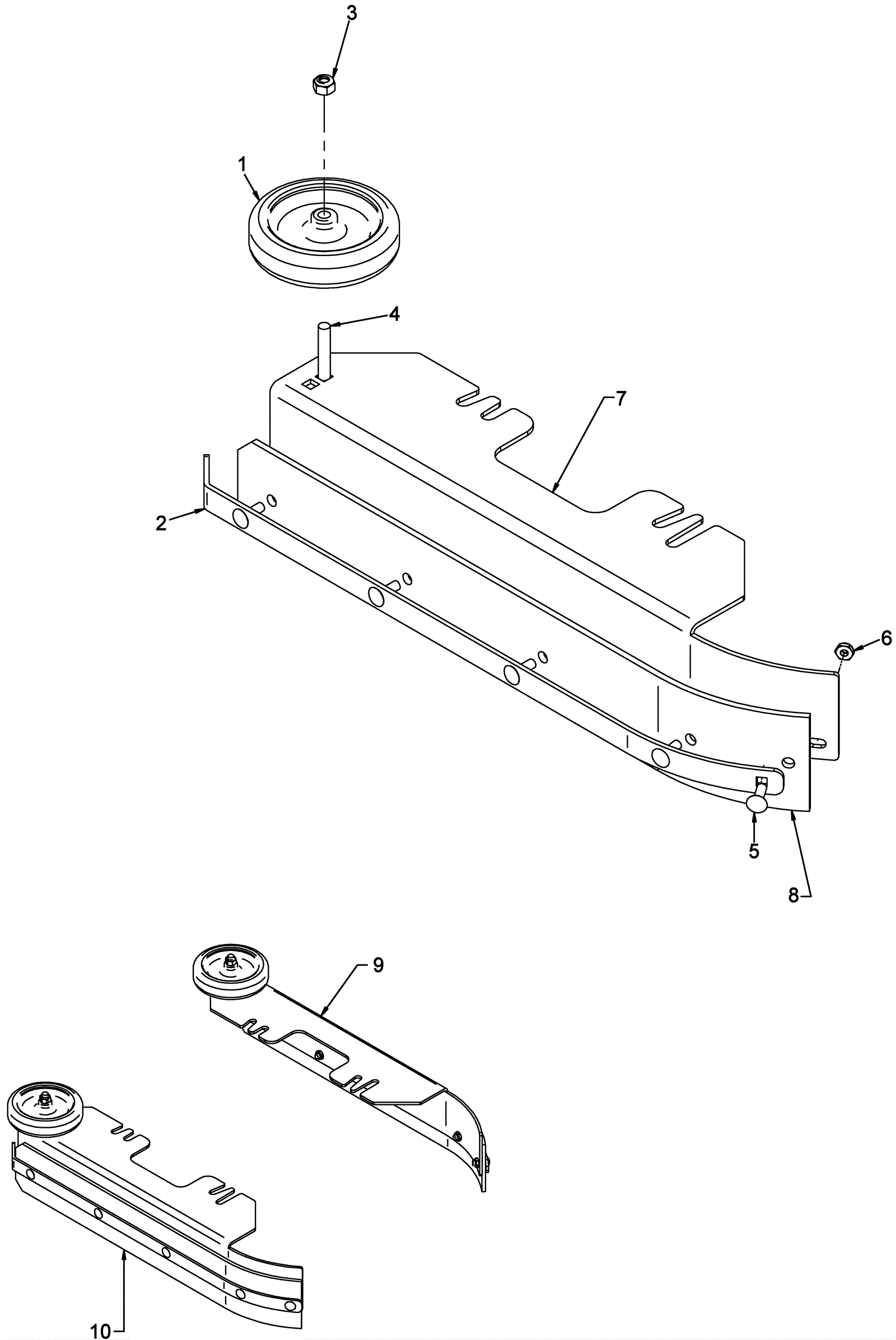

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5079
|
4 inch wheel |
1 |
|
|
2 |
202-5083
|
Wiper band |
1 |
|
|
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
4 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
1 |
|
|
5 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
|
6 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
7a |
202-5680
|
Left hand shroud (OBSOLETE) |
1 |
|
|
7b |
202-5681
|
Right hand shroud (OBSOLETE) |
1 |
|
|
8a |
202-5112
|
linatex wiper |
1 |
|
|
8c |
202-5113
|
Polyurethane wiper |
1 |
|
|
9 |
202-5683
|
Right hand shroud assembly |
1 |
(includes 1-6) |
|
10 |
202-5684
|
Left hand shroud assembly |
1 |
(includes 1-6) |
|
