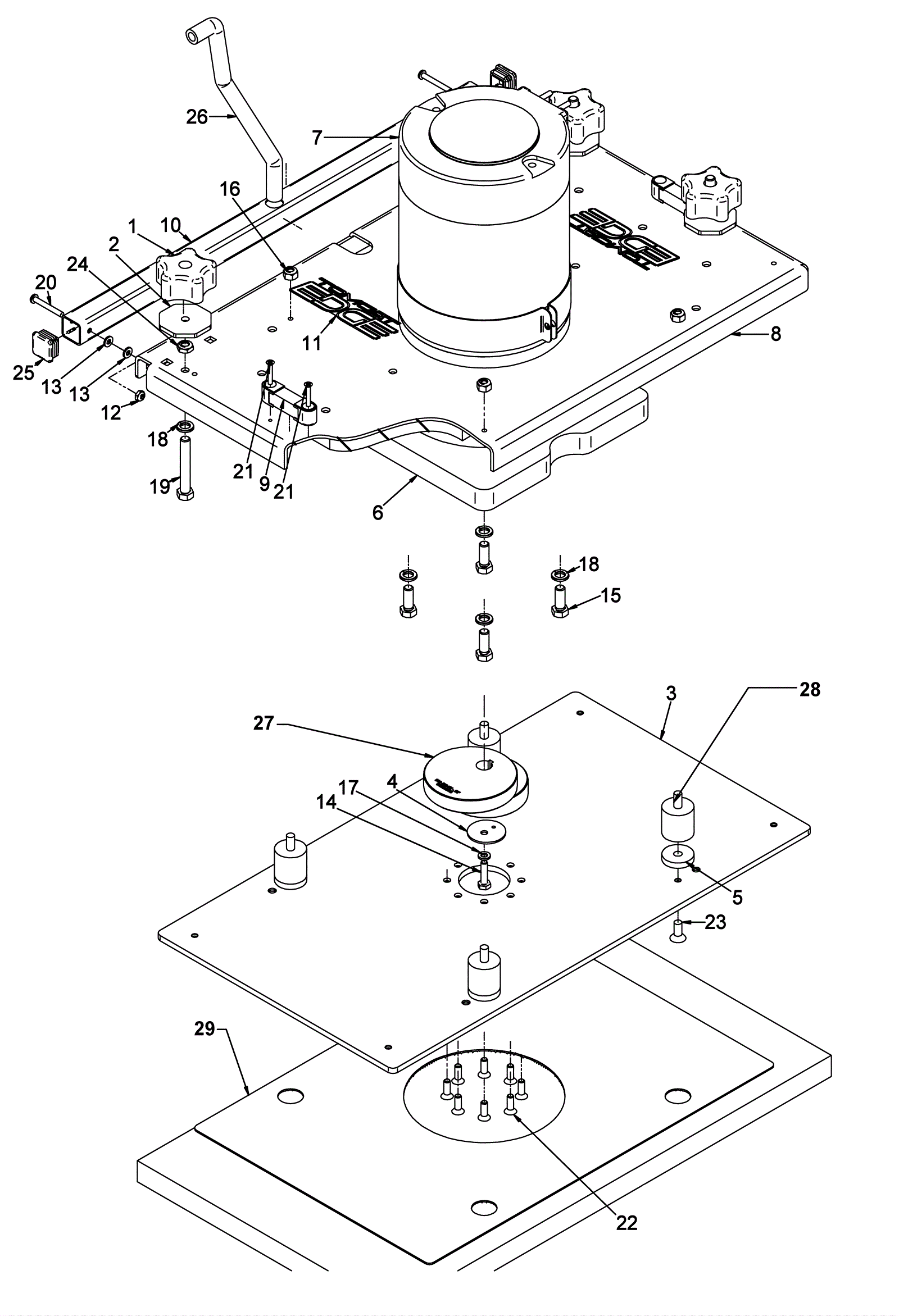

24 Inch Scrub Deck Assembly - EDGE

#PartDescription ReqNotesAvailability
1 202-5078 Star knob 4
2 202-5080 Adjustment knob shroud 4
3a 202-5528 24 inch aluminum pad driver 1
3b 202-5087 28 inch aluminum pad driver 1
4 202-5084 Crush washer 1
5 202-5085 20 and 28 inch spacer 4
6 202-5202 1 inch bearing gasket 1
7 202-5092 36V 1HP motor 1
8a 202-5529 24 inch square deck 1
8b 202-5096 28 inch square scrub deck 1
9 202-5098 2 inch bolt on level 2
10a 202-5530 24 inch feed tube kit 1
10b 202-5093 28 inch solution feed tube 1
11 202-5104 5 1/2 inch Tomcat EDGE decal (black) 2
12 999-1269 Nut 10-32 nylon insert jam stainless steel 2
13 999-1874 Washer #10 nylon flat 4
14 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
15 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
16 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
17 999-0632 Washer 1/4 split lock stainless steel 1
18 999-0659 Washer 3/8 medium split lock stainless steel 8
20 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel 2
21 999-1603 Screw 8-32 x 1 flat head phillips SS 4
22 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 8
23 202-2831 Screw 5/16-18 x 3/4 flat head socket stainless steel 4
24 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
25 202-5471 Square plug 2
26 202-5590 Clear hose 1
27a 202-9586 Eccentric kit with hardware and loctite for scrubbers 1
27b 202-5109 28 inch eccentric assembly 1
28a 202-5444 20 and 24 inch isolator kit (pkg of 4) 1 (includes 4 isolators, 1 hour meter, 4 bolts, 4 nuts, 1 gasket and 1 sticker seal)
28b 202-5107 28 inch isolator kit (pkg of 8) 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal)
29a 202-5089 Mighty-Lok II grip face pad holder set (brown) 1
29b 202-5089 Mighty-Lok II grip face pad holder set (brown) 1
29c 202-5089 Mighty-Lok II grip face pad holder set (brown) 1
