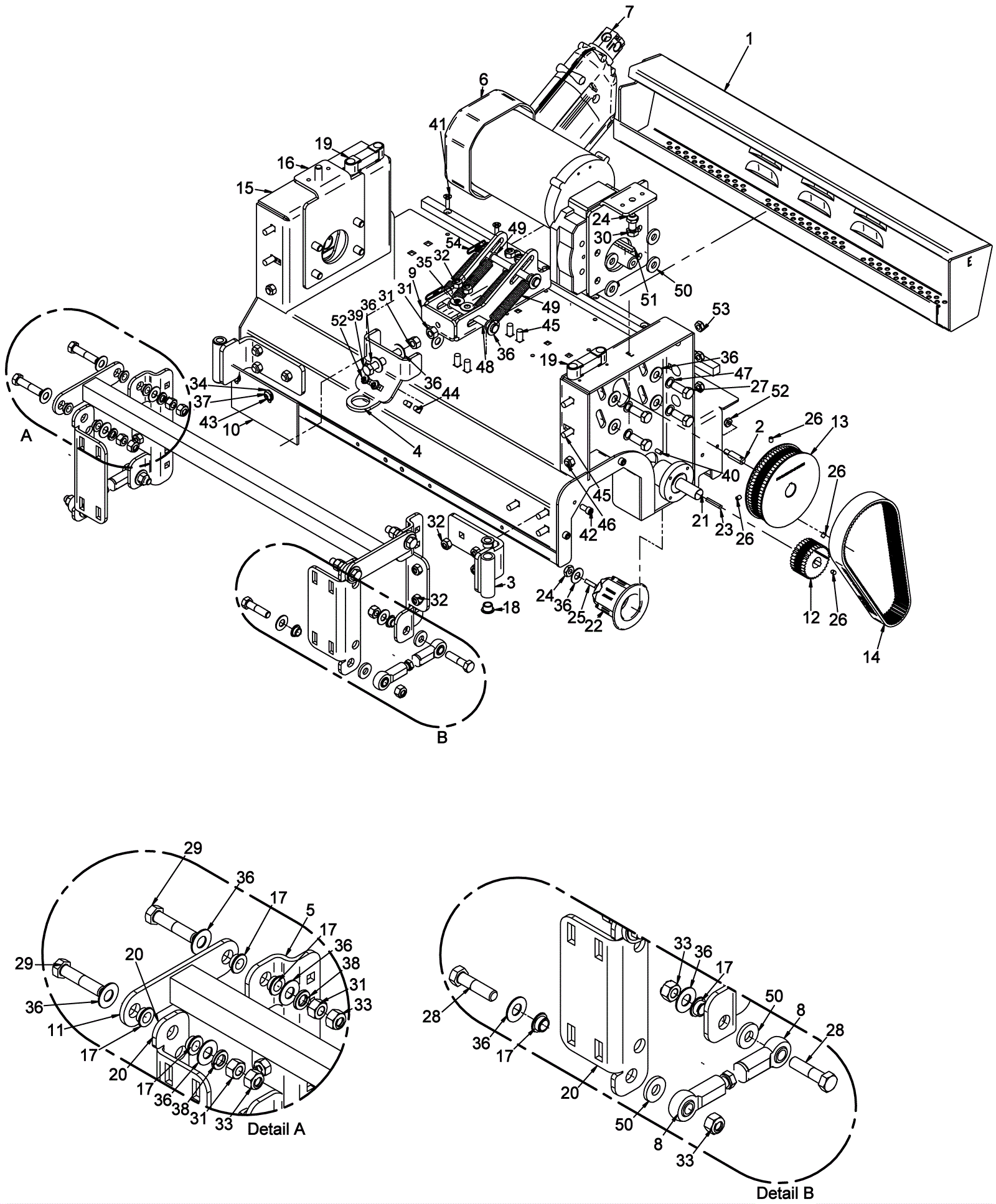

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5030
|
24 inch hopper |
1 |
|
|
2 |
202-3136
|
Retaining pin |
2 |
|
|
3 |
202-3137
|
Hinge |
2 |
|
|
4 |
202-3143
|
Bracket |
1 |
|
|
5 |
202-5128
|
24 inch lifting bracket |
2 |
|
|
6 |
202-5125
|
36V 3/4HP motor |
2 |
|
|
7 |
202-1932
|
36V actuator |
1 |
|
|
8 |
202-5700
|
Adjustable arm assembly |
2 |
|
|
9 |
202-5126
|
Lifting bracket |
1 |
|
|
10 |
202-3139
|
Curtain blade |
1 |
|
|
11 |
202-5127
|
Lateral arm |
1 |
|
|
12 |
202-3140
|
32 toothed sprocket |
2 |
|
|
13 |
202-3141
|
68 toothed sprocket |
2 |
|
|
14 |
202-2877
|
Belt |
2 |
|
|
15 |
202-5027
|
24 inch cylindrical scrub deck |
1 |
|
|
16 |
202-3142
|
Motor adjustment bracket |
2 |
|
|
17 |
202-1239
|
Flanged bearing |
12 |
|
|
18 |
202-0754
|
Flanged bearing |
4 |
|
|
19 |
202-5098
|
2 inch bolt on level |
2 |
|
|
20 |
202-5103
|
Adjustable arm bracket |
2 |
|
|
21 |
202-3146
|
Bearing housing |
2 |
|
|
22 |
202-3147
|
Brush driver |
2 |
|
|
23 |
202-0847
|
Square keyway |
2 |
|
|
24 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
4 |
|
|
25 |
202-3153
|
Square keyway |
2 |
|
|
26 |
999-1635
|
Screw 10-32 x 1/4 socket set |
8 |
|
|
27 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
|
28 |
202-1970
|
Bolt 3/8-16 x 1-1/2 hex head stainless steel |
4 |
|
|
29 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
4 |
|
|
30 |
202-3155
|
Bolt 3/8 x 1 inch hex head stainless steel |
2 |
|
|
31 |
999-0635
|
Nut 3/8-16 hex stainless steel |
6 |
|
|
32 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
16 |
|
|
33 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
8 |
|
|
34 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
35 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
|
36 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
28 |
|
|
37 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
38 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
4 |
|
|
40 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
|
41 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
6 |
|
|
42 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
8 |
|
|
43 |
202-3109
|
Screw 1/4 x 5/8 button head socket stainless steel |
2 |
|
|
45 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
14 |
|
|
46 |
N/A
|
Not available |
8 |
(Bolt) |
|
47 |
202-3158
|
Washer 3/8 inch serrated stainless steel |
8 |
|
|
48 |
202-1968
|
Clevis pin |
2 |
|
|
49 |
202-2208
|
Compression spring |
4 |
|
|
50 |
999-0120
|
Washer 3/8 SAE flat |
12 |
|
|
51 |
202-0140
|
Steering shaft key |
2 |
|
|
52 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
10 |
|
|
53 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
6 |
|
|
54 |
202-2036
|
Cotter pin |
2 |
|
|
