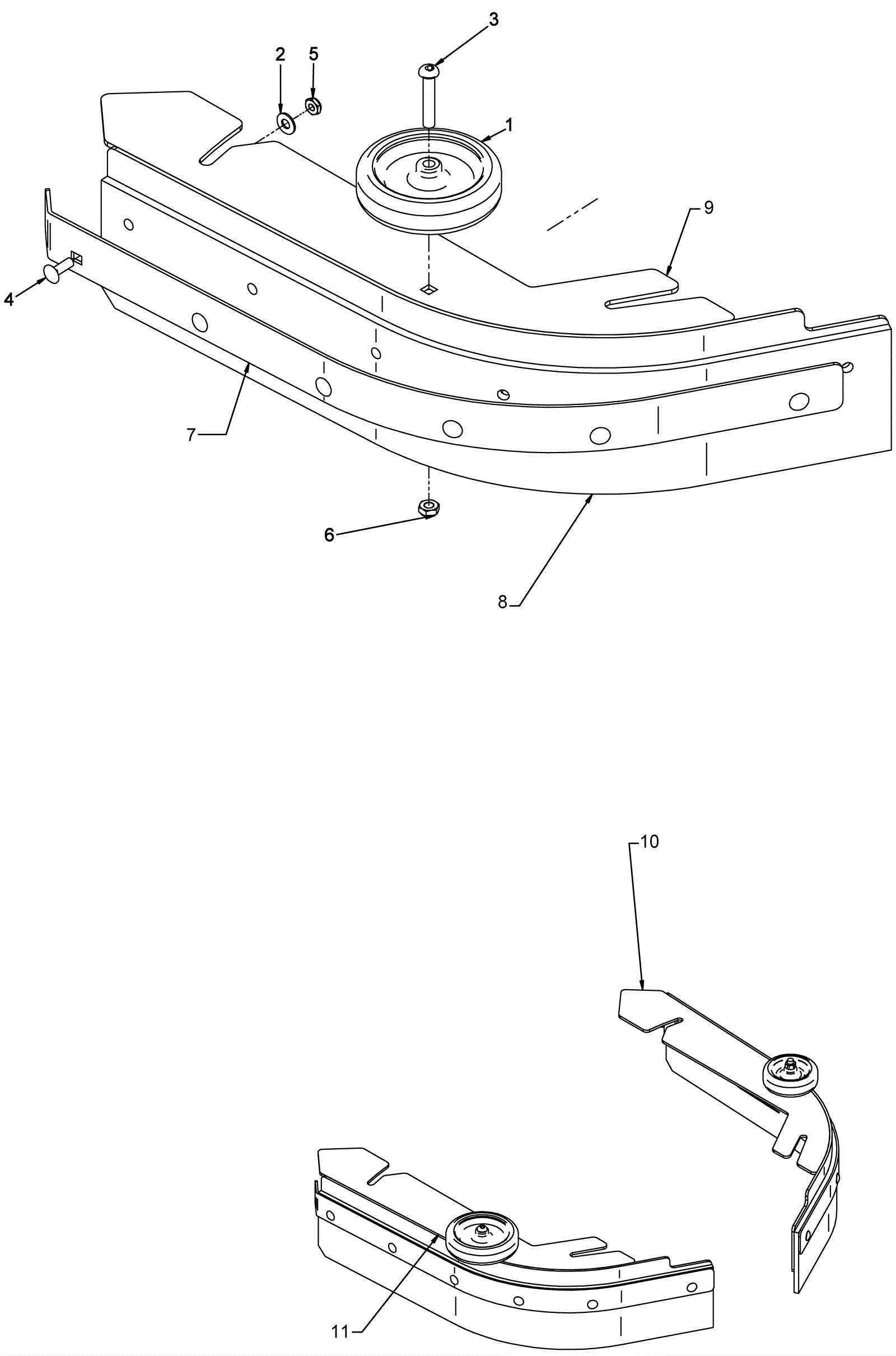

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5079
|
4 inch wheel |
1 |
|
|
2 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
3 |
999-1913
|
Screw 5/16-18 x 1 3/4 button head socket cap stainless steel |
1 |
|
|
4 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
6 |
|
|
5 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
|
6 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
7a |
202-5663
|
Left hand wiper band |
1 |
|
|
7b |
202-5664
|
Right hand wiper band |
1 |
|
|
8a |
202-5665
|
linatex shroud wiper |
1 |
|
|
8b |
202-5666
|
Gum rubber shroud wiper (OBSOLETE) |
1 |
|
|
8c |
202-5667
|
Urethane shroud wiper |
1 |
|
|
9a |
202-5668
|
20 inch left hand shroud |
1 |
|
|
9b |
202-5669
|
20 inch right hand shroud |
1 |
|
|
9c |
202-5670
|
26 inch left hand shroud |
1 |
|
|
9d |
202-5671
|
26 inch right hand shroud |
1 |
|
|
9e |
202-5672
|
28 inch left hand shroud |
1 |
|
|
9f |
202-5673
|
28 inch right hand shroud |
1 |
|
|
10a |
202-5674
|
26 inch shroud assembly |
1 |
|
|
10b |
202-5675
|
28 inch shroud assembly (OBSOLETE) |
1 |
|
|
11a |
202-5676
|
26 inch left hand shroud assembly |
1 |
|
|
11b |
202-5677
|
28 inch left hand shroud assembly |
1 |
|
|
