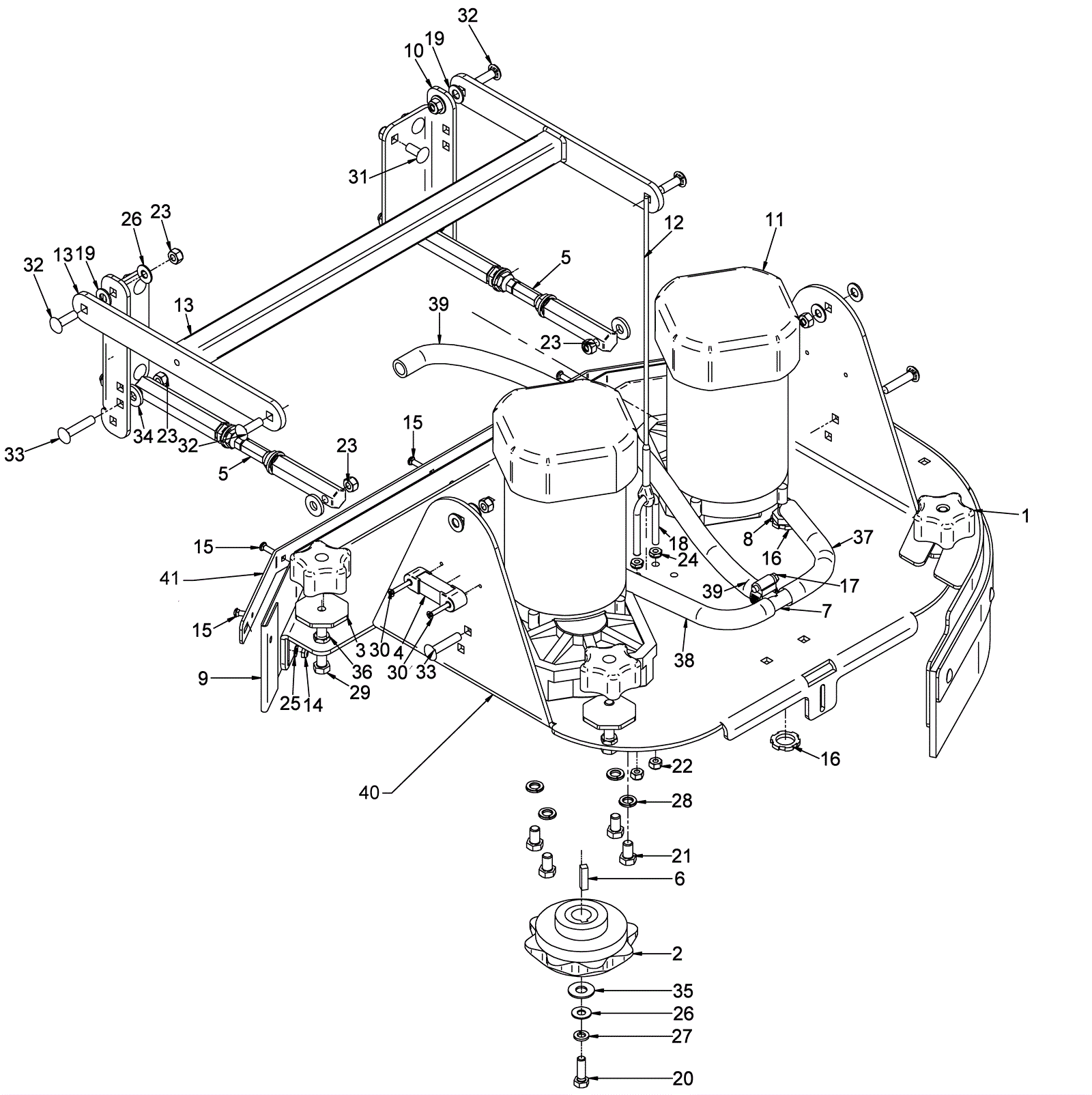

26 and 28 Inch Scrub Deck Assembly - Disk

#PartDescription ReqNotesAvailability
1 202-5078 Star knob 4
2 202-0330 Metal brush driver 2
3 202-5080 Adjustment knob shroud 4
4 202-5098 2 inch bolt on level 1
5 202-5099 Adjustable lateral arm assembly 1
6 202-0331 Brush driver key (pkg of 2) 1
7 202-0332 1/2 inch barbed tee 1
8 202-0333 Elbow barb 2
9 202-5582 Front deck curtain 1
10 202-5583 Scrub arm bracket 2
11 202-5579 36V motor 2
12 202-5584 Deck lift cable 1
13 302-0262 Lateral arm, disk (new style) 1
14 999-1269 Nut 10-32 nylon insert jam stainless steel 5
15 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 5
16 999-0330 Nut 1/2-13 acorn brass 4
17 202-0680 Hose clamp 1
18 999-1460 U-bolt 1/4-20 x 3/4 zinc 1
19 202-2210 Washer 3/8 x 3/4 flat nylon 4
20 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
21 999-1856 Screw 3/8-24 x 5/8 hex cap stainless steel 8
22 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel 16
24 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
25 999-0998 Washer #10 flat stainless steel 5
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
27 999-0553 Washer 5/16 medium split lock stainless steel 2
28 999-0659 Washer 3/8 medium split lock stainless steel 8
30 999-1603 Screw 8-32 x 1 flat head phillips SS 4
31 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 8
32 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
33 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel 4
34 999-0120 Washer 3/8 SAE flat 4
35 999-0617 Washer 3/8 x 1 flat stainless steel 2
36 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
37 202-5148 Tubing 1/2 x 9 inch 1
38 202-5536 Hose 1
39 202-5586 Solution hose (OBSOLETE) 1
40a 202-5659 26 inch scrub deck 1
40b 202-5660 28 inch scrub deck 1
41a 202-5661 26 inch front curtain band 1
41b 202-5662 28 inch front curtain band 1
