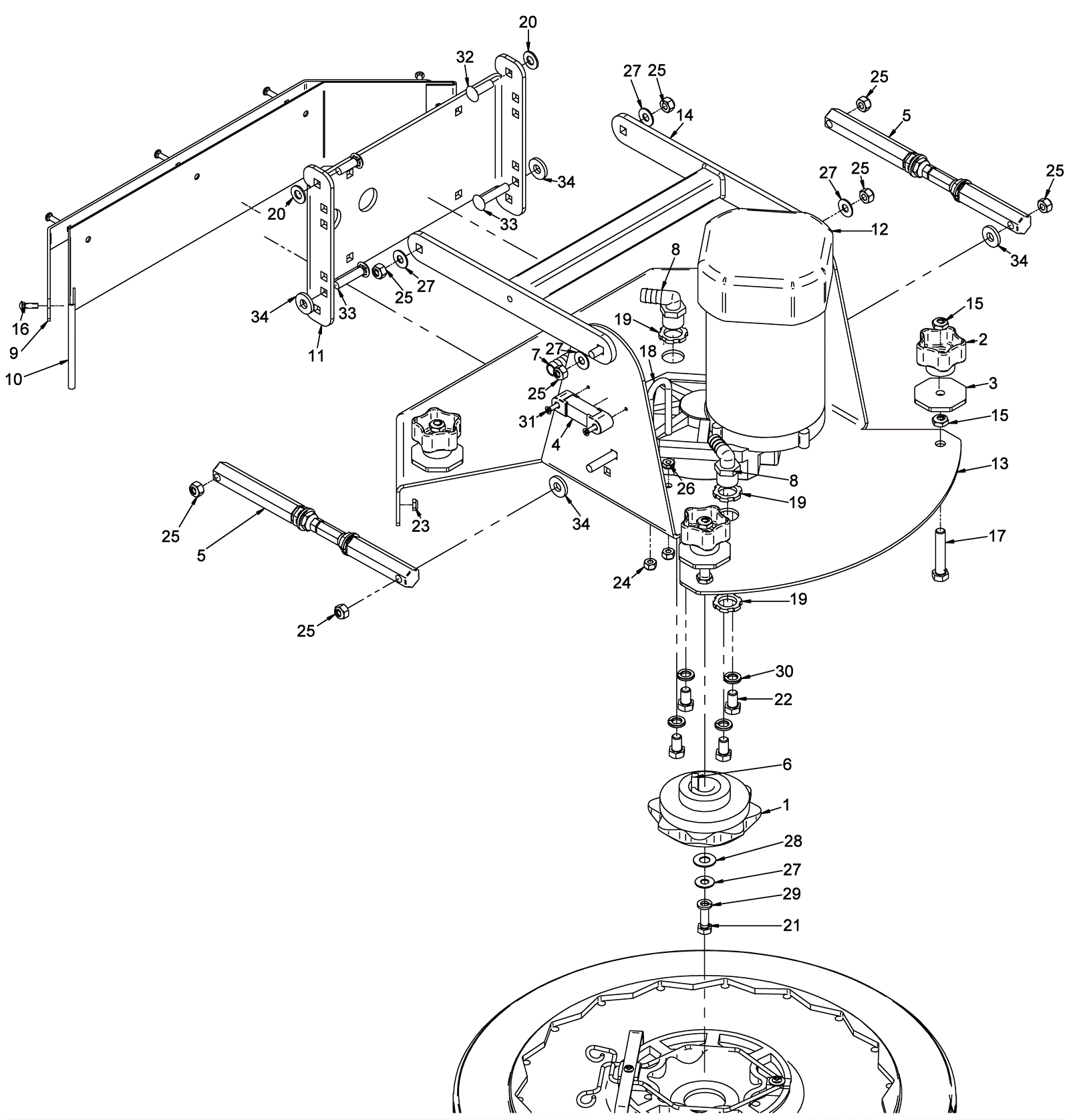

20 Inch Scrub Deck Assembly - Disk

#PartDescription ReqNotesAvailability
1 202-0330 Metal brush driver 1
2a 202-0809 Brass star knob 4
2b 991-2411 Brass star knob 4 (NON-OEM)
3 202-1946 Adjustment knob plate 4
4 202-5098 2 inch bolt on level 2
5 202-5099 Adjustable lateral arm assembly 2
6 202-0331 Brush driver key (pkg of 2) 1
7 202-0332 1/2 inch barbed tee 1
8 202-0333 Elbow barb 2
9 202-5576 20 inch front curtain band 1
10 202-5577 23 inch front deck curtain 1
11 202-5578 Scrub arm bracket 1
12 202-5579 36V motor 1
13 202-5580 20 inch scrub deck 1
14 202-5581 Lateral arm 1
15 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 8
16 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 5
17 999-1567 Screw 3/8-24 x 2 hex head stainless steel 4
18 N/A Not available 1 (Bolt)
19 999-0330 Nut 1/2-13 acorn brass 4
20 202-2210 Washer 3/8 x 3/4 flat nylon 4
21 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
22 999-1856 Screw 3/8-24 x 5/8 hex cap stainless steel 4
23 999-0086 Nut 10-32 nylon insert lock zinc plated 5
24 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
25 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
26 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
27 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 5
28 999-0617 Washer 3/8 x 1 flat stainless steel 1
29 999-0553 Washer 5/16 medium split lock stainless steel 1
30 999-0659 Washer 3/8 medium split lock stainless steel 4
31 999-1603 Screw 8-32 x 1 flat head phillips SS 4
32 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
33 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel 4
34 999-0120 Washer 3/8 SAE flat 4
