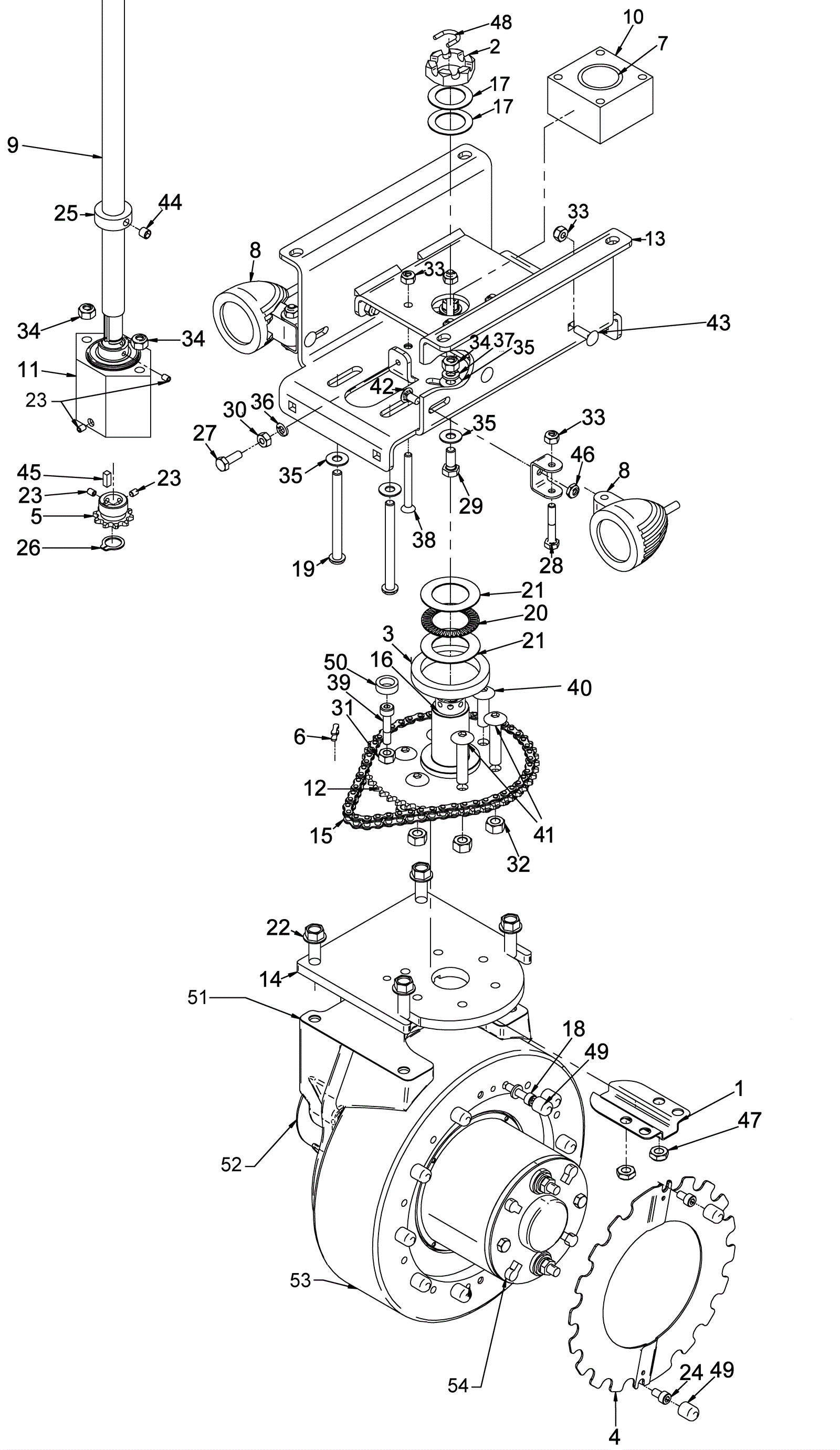

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2960
|
Wire guide |
1 |
|
|
2 |
202-1166
|
Slotted castle nut |
1 |
|
|
3 |
202-5068
|
Bearing seal |
1 |
|
|
4 |
202-5069
|
Drive guard |
2 |
|
|
5 |
202-0280
|
10 toothed sprocket |
1 |
|
|
6 |
202-0283
|
Master link |
1 |
|
|
7 |
202-5545
|
Flanged bearing 1 1/2 x 1 1/4 |
1 |
|
|
8 |
202-5546
|
9-60V LED head light |
2 |
(optional) |
|
9 |
202-5547
|
Lower steering shaft |
1 |
|
|
10 |
202-5548
|
Bearing block |
1 |
|
|
11 |
202-5549
|
Bearing housing assembly |
1 |
|
|
12 |
202-5550
|
48 tooth steering sprocket |
1 |
|
|
13 |
202-5551
|
10 inch drive drop plate |
1 |
|
|
14 |
202-5552
|
Pivot plate |
1 |
|
|
15 |
202-5553
|
Steering chain |
1 |
|
|
16 |
202-5554
|
Steering spindle |
1 |
|
|
17 |
202-1040
|
Washer |
2 |
|
|
18 |
999-1300
|
Screw M6-1 x 25mm socket head stainless steel |
10 |
|
|
19 |
999-1909
|
Screw 5/16-18 x 3 1/2 button socket cap SS |
2 |
|
|
20 |
202-5556
|
1 1/4 inch bearing |
1 |
|
|
21 |
202-5557
|
Washer 1 1/4 |
2 |
|
|
22 |
999-9136
|
Screw 1/4-20 x 2 3/4 pan head phillips stainless steel |
4 |
|
|
23 |
999-1635
|
Screw 10-32 x 1/4 socket set |
4 |
|
|
24 |
999-1908
|
Screw M6-1 x 10mm hex head stainless steel |
2 |
|
|
25 |
202-2216
|
Shaft collar with set screw |
1 |
|
|
26 |
202-0281
|
Snap ring |
1 |
|
|
27 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
|
28 |
999-1260
|
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
2 |
|
|
29 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
30 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
31 |
999-0593
|
Nut 5/16-18 hex stainless steel |
1 |
|
|
32 |
999-0635
|
Nut 3/8-16 hex stainless steel |
6 |
|
|
33 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
10 |
|
|
34 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
35 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
36 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
37 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
38 |
999-1910
|
Screw 1/4-20 x 2 1/4 phillips flat head SS |
4 |
|
|
39 |
999-1667
|
Screw 5/16-18 x 1 1/4 socket head stainless steel |
1 |
|
|
40 |
999-1911
|
Screw 3/8-16 x 1 1/4 button socket cap |
4 |
|
|
41 |
999-1912
|
Screw 3/8-16 x 1 3/4 button socket cap SS |
2 |
|
|
43 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
44 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
1 |
|
|
45 |
202-0278
|
Square keyway |
1 |
|
|
46 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
47 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
2 |
|
|
48 |
202-2967
|
S hook |
1 |
|
|
49 |
202-5558
|
1/2 inch vinyl cap |
12 |
|
|
50 |
202-3613
|
Tubing (clear) |
1 |
|
|
51 |
202-1893
|
Drive wheel assembly w/motor - includes brake |
1 |
|
|
52 |
202-5075
|
36V electric brake |
1 |
|
|
53a |
202-5039
|
10 inch tire and wheel (black) |
1 |
(standard) |
|
53b |
202-3385
|
Replacement tire ONLY |
1 |
(optional) |
|
53d |
202-5658
|
P-7 tire |
1 |
(optional) |
|
54a |
202-3524
|
Front wheel drive motor |
1 |
|
|
54b |
202-5072
|
36V brush motor kit with springs |
1 |
|
|
