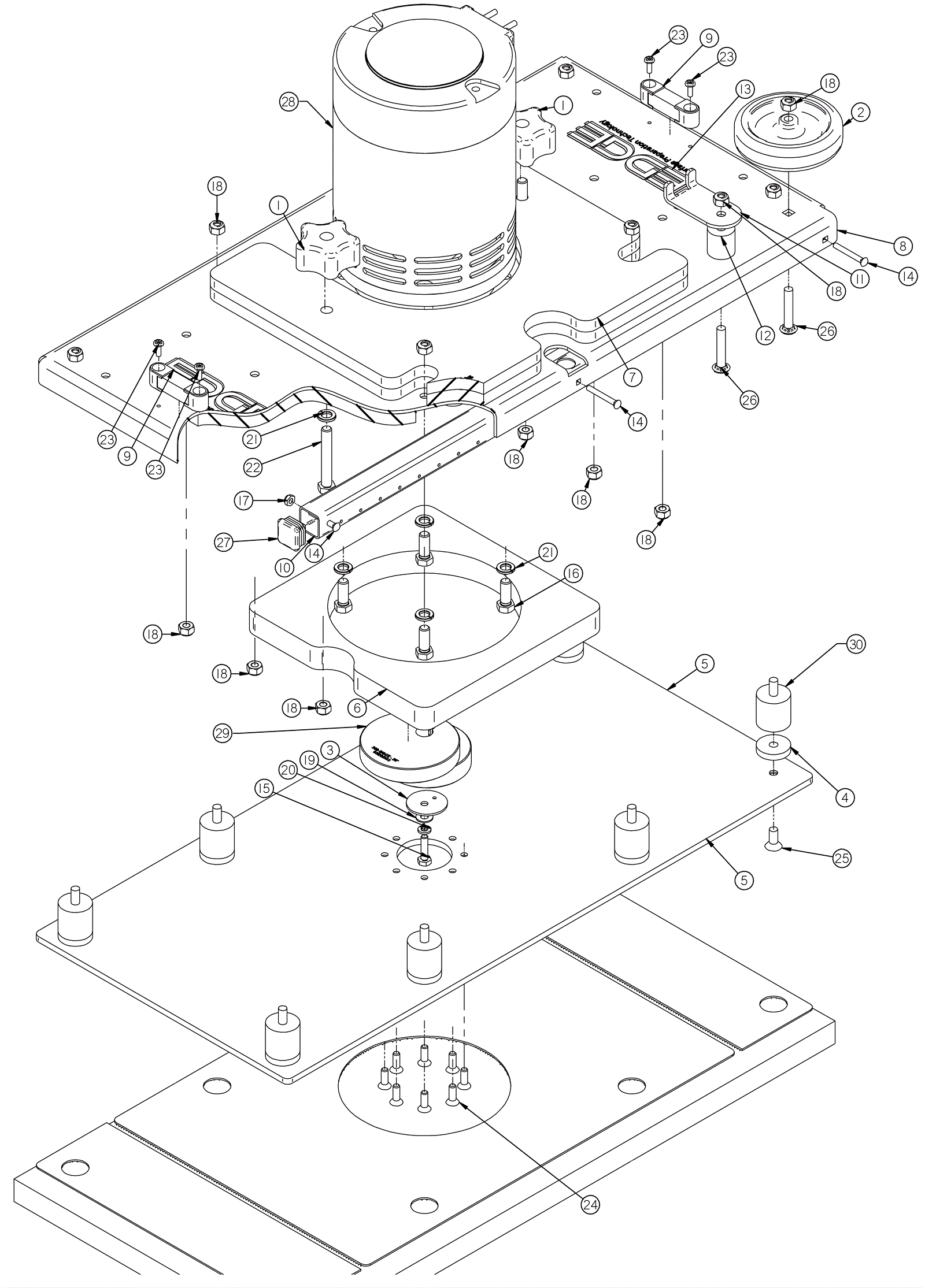

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5078
|
Star knob |
2 |
|
|
2 |
202-5079
|
4 inch wheel |
2 |
|
|
3 |
202-5084
|
Crush washer |
1 |
|
|
4 |
202-5085
|
20 and 28 inch spacer |
8 |
|
|
5 |
202-5087
|
28 inch aluminum pad driver |
1 |
|
|
6 |
202-5202
|
1 inch bearing gasket |
1 |
|
|
7 |
202-5095
|
15 pound top weight |
2 |
|
|
8 |
202-5096
|
28 inch square scrub deck |
1 |
|
|
9 |
202-5098
|
2 inch bolt on level |
2 |
|
|
10 |
202-5093
|
28 inch solution feed tube |
1 |
|
|
11 |
202-5203
|
Wheel bracket |
2 |
|
|
12 |
202-0582
|
Stand-off |
2 |
|
|
13 |
202-5204
|
5 inch EDGE decal |
3 |
|
|
14 |
202-5205
|
Bolt #10-32 x 1 1/2 inch carriage stainless steel |
3 |
|
|
15 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
|
16 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
|
17 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
3 |
|
|
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
18 |
|
|
19 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
20 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
21 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
22 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
2 |
|
|
23 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
24 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
|
|
25 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
8 |
|
|
26 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
4 |
|
|
27 |
202-5471
|
Square plug |
2 |
|
|
28a |
202-5531
|
24V 1 HP motor |
1 |
(standard) |
|
28b |
202-5354
|
24V 1.2 HP motor |
1 |
(optional) |
|
29 |
202-5109
|
28 inch eccentric assembly |
1 |
|
|
30 |
202-5107
|
28 inch isolator kit (pkg of 8) |
1 |
(includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal) |
|
N/S |
202-5089
|
Mighty-Lok II grip face pad holder set (brown) |
1 |
|
|
