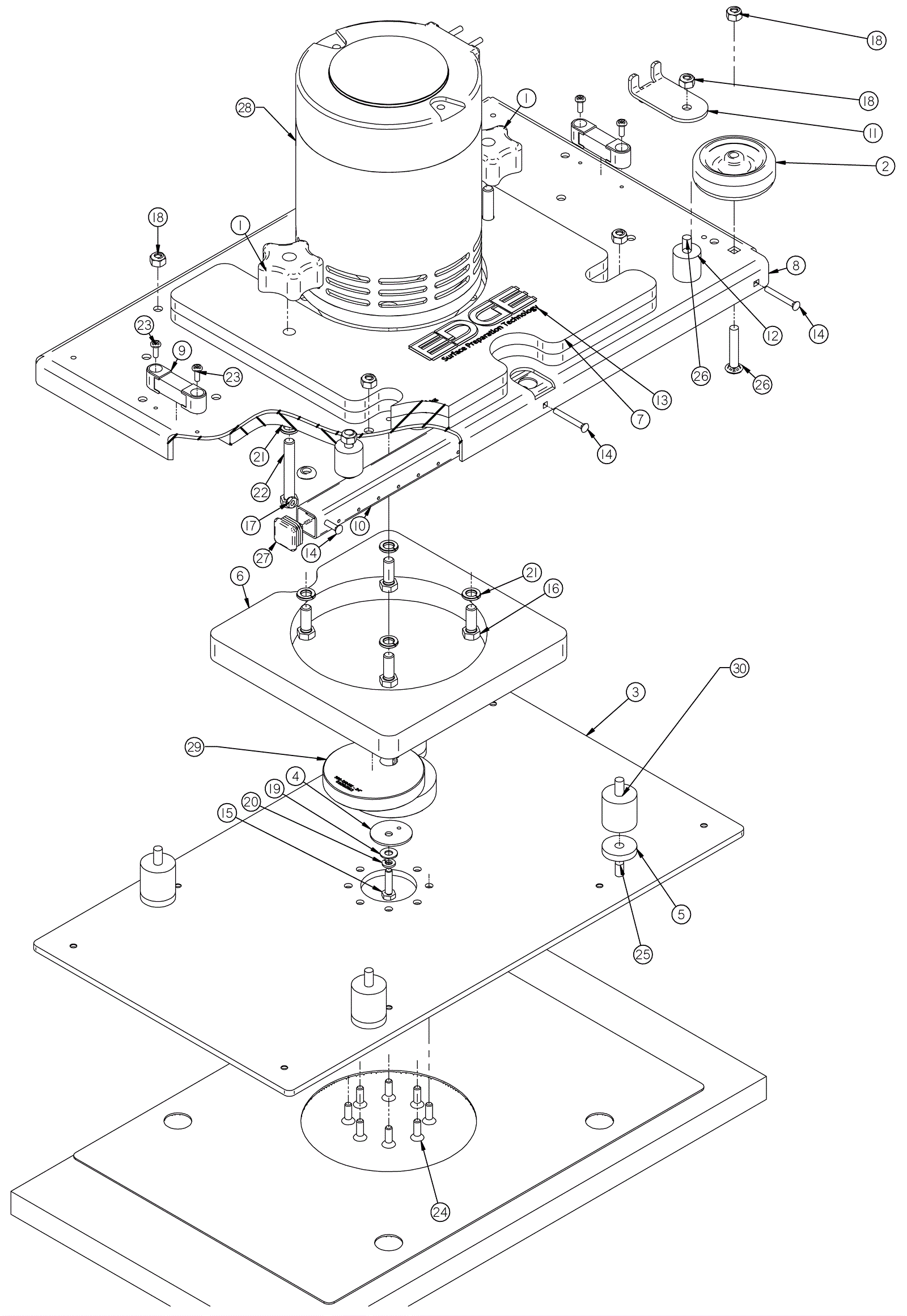

MINI MAG Scrub Deck Assembly - EDGE Orbital - 20 and 24 inch

#PartDescriptionPriceReqNotesAvailability
1 202-5078 Star knob $14.63 2 ships same day
2a 202-5079 4 inch wheel $9.79 2 (20 inch) usually ships 3-11 days
2b 202-5405 3 inch wheel $8.80 2 (24 inch) usually ships 3-11 days
3a 202-5194 20 inch aluminum pad driver $175.56 1 usually ships 3-11 days
3b 202-5528 24 inch aluminum pad driver $258.50 1 usually ships 3-11 days
4 202-5084 Crush washer $7.04 1 usually ships 3-11 days
5 202-5085 20 and 28 inch spacer $5.50 4 usually ships 3-11 days
6 202-5202 1 inch bearing gasket $41.14 1 usually ships 3-11 days
7 202-5095 15 pound top weight $343.16 2 usually ships 3-11 days
8a 202-5526 20 inch square deck $257.51 1 usually ships 1-5 days
8b 202-5529 24 inch square deck $856.46 1 usually ships 3-11 days
9 202-5098 2 inch bolt on level $5.50 2 usually ships 3-11 days
10a 202-5527 20 inch feed tube kit $79.09 1 usually ships 3-11 days
10b 202-5530 24 inch feed tube kit $101.42 1 usually ships 3-11 days
11 202-5203 Wheel bracket $12.54 2 usually ships 3-11 days
12 202-0582 Stand-off $11.88 2 (24 inch) usually ships 3-11 days
13 202-5204 5 inch EDGE decal $13.22 1 usually ships 3-11 days
14 202-5205 Bolt #10-32 x 1 1/2 inch carriage stainless steel $5.50 3 usually ships 3-11 days
15 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
16 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
17 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 8 ships same day
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
20 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
21 999-0659 Washer 3/8 medium split lock stainless steel $0.39 6 ships same day
23 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
24 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 8 ships same day
25 202-2831 Screw 5/16-18 x 3/4 flat head socket stainless steel $5.50 4 usually ships 3-11 days
26 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel $5.50 4 usually ships 3-11 days
27 202-5471 Square plug $5.50 2 usually ships 3-11 days
28a 202-5531 24V 1 HP motor $1,762.97 1 (standard) usually ships 3-11 days
28b 202-5354 24V 1.2 HP motor $1,923.79 1 (optional) usually ships 3-11 days
29 202-9586 Eccentric kit with hardware and loctite for scrubbers $274.78 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite) usually ships 3-11 days
30 202-5444 20 and 24 inch isolator kit (pkg of 4) $112.31 1 (includes 4 isolators, 1 hour meter, 4 bolts, 4 nuts, 1 gasket and 1 sticker seal) usually ships 3-11 days
N/S 202-5089 Mighty-Lok II grip face pad holder set (brown) $154.33 1 (24 inch) ships same day
N/S 202-5089 Mighty-Lok II grip face pad holder set (brown) $154.33 1 (20 inch) ships same day
