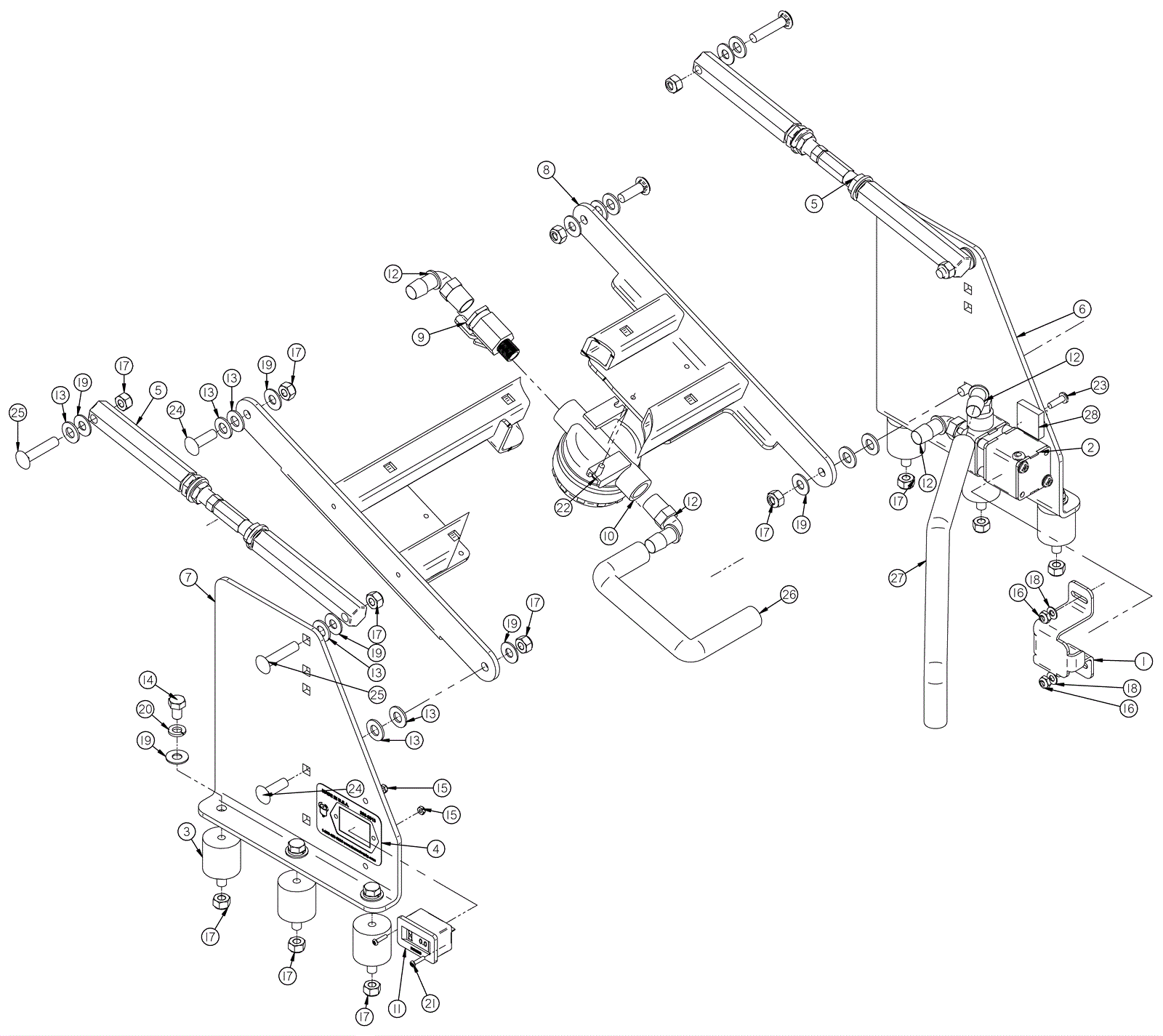

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3058
|
Valve bracket |
1 |
|
|
2 |
202-5200
|
24V solenoid |
1 |
|
|
3 |
202-5111
|
Isolator kit (pkg of 6) |
1 |
(includes 6 isolators, 6 bolts, 6 washers, 6 lock washers and 6 nylok nuts) |
|
4 |
202-5091
|
Isolator decal |
1 |
|
|
5 |
202-5099
|
Adjustable lateral arm assembly |
2 |
|
|
6 |
202-5100
|
Left side deck lifting bracket |
1 |
|
|
7 |
202-5101
|
Right side deck lifting bracket |
1 |
|
|
8 |
202-5102
|
Lateral arm |
1 |
|
|
9 |
202-3057
|
Ball valve |
1 |
|
|
10 |
202-3234
|
Inline filter |
1 |
|
|
11 |
202-0376
|
Hour meter |
1 |
|
|
12 |
202-3059
|
Elbow barb |
4 |
|
|
13 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
12 |
|
|
14 |
999-0547
|
Bolt 5/16-18 x 1/2 hex head stainless steel |
6 |
|
|
15 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
16 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
14 |
|
|
18 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
14 |
|
|
20 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
6 |
|
|
21 |
202-2370
|
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
|
22 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
2 |
|
|
23a |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
2 |
|
|
23b |
999-1487
|
Screw 10-32 x 5/8 pan head phillips stainless steel |
2 |
|
|
24 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
25 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
26 |
202-5206
|
Valve filter (OBSOLETE) |
1 |
|
|
27 |
202-5207
|
Hose |
1 |
|
|
28 |
202-5208
|
Valve pad |
1 |
|
|
