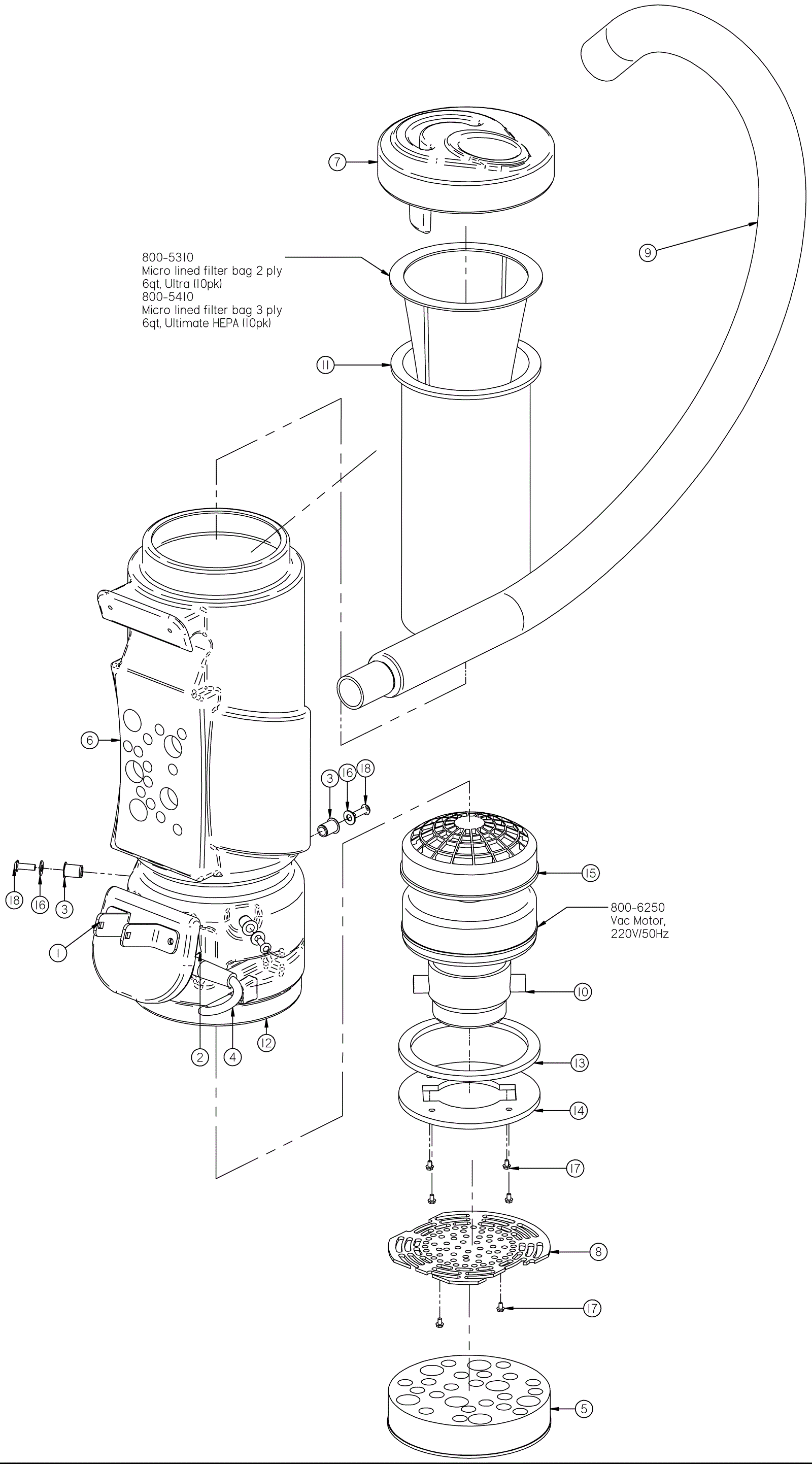

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5509
|
Vacuum bracket |
2 |
|
|
2 |
202-5510
|
On/off rocker switch |
1 |
|
|
3 |
202-5511
|
Well nut |
3 |
|
|
4 |
202-5512
|
17 inch pigtail power cord |
1 |
|
|
5 |
202-5513
|
6 quart dual cell noise filter |
1 |
|
|
6 |
202-5514
|
Backrest pad with 3M adhesive |
1 |
|
|
7 |
202-5515
|
6 quart inlet lid |
1 |
|
|
8 |
202-5516
|
Motor guard |
1 |
|
|
9 |
202-5517
|
4 foot vacuum hose |
1 |
|
|
10 |
202-5518
|
Vacuum motor |
1 |
|
|
11 |
202-5519
|
6 quart cloth bag |
1 |
|
|
12 |
202-5520
|
6 quart backpack housing |
1 |
|
|
13 |
202-5521
|
Gasket motor housing |
1 |
|
|
14 |
202-5522
|
Motor mounting ring |
1 |
|
|
15 |
202-5523
|
HEPA dome filter |
1 |
|
|
16 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
17 |
999-1882
|
Screw #6 x 1/2 inch pan head phillips stainless steel |
6 |
|
|
18 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
3 |
|
|
19 |
202-5524
|
6 quart 2 ply micro-lined filter bag (pkg of 10) |
1 |
|
|
