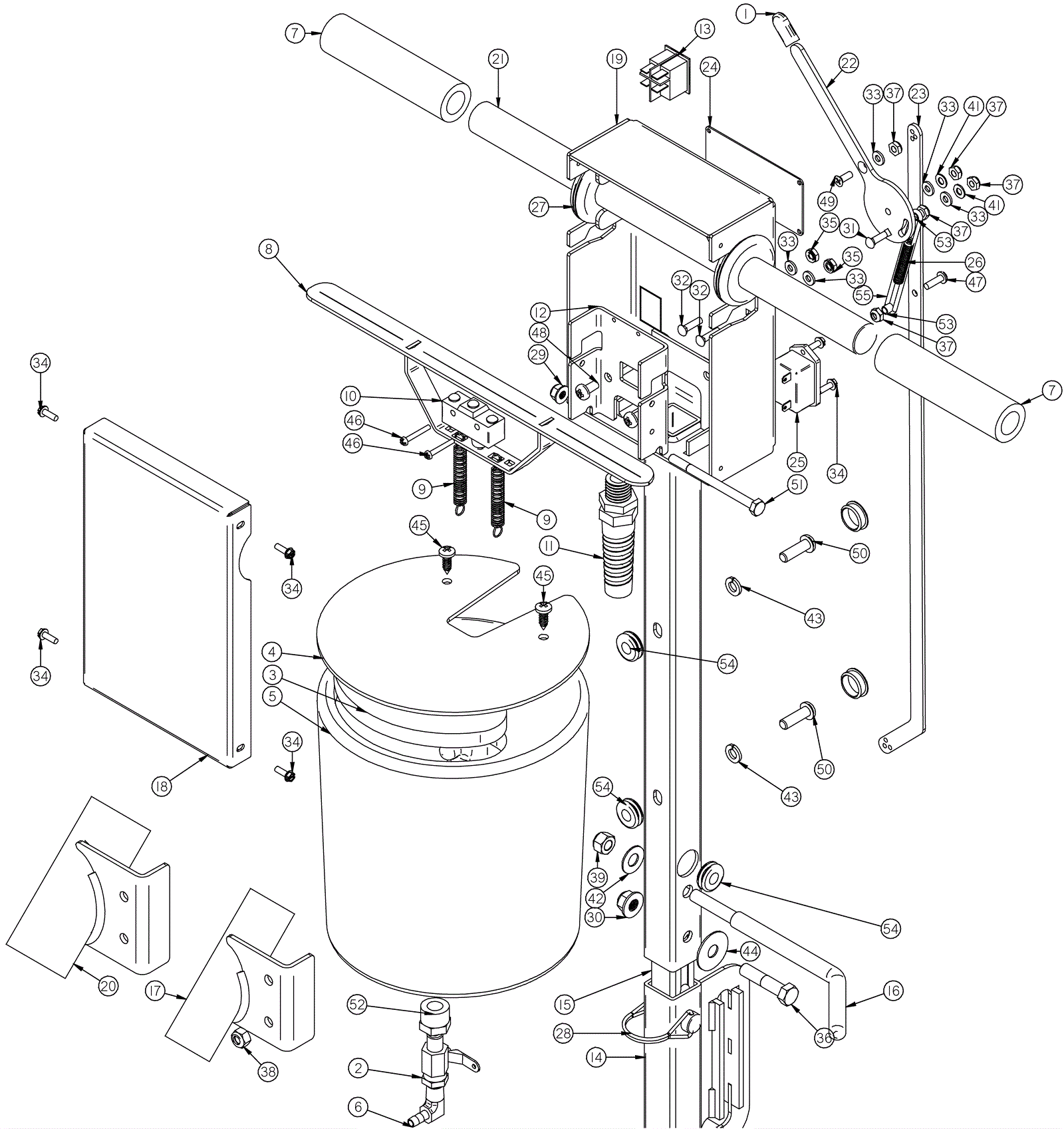

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5386
|
Handle grip (blue) |
1 |
|
|
2 |
202-5483
|
1/4 inch two way ball valve brass |
1 |
|
|
3 |
202-5484
|
Tank lid gasket |
1 |
|
|
4 |
202-5485
|
Tank lid |
1 |
|
|
5 |
202-5486
|
Solution tank |
1 |
|
|
6 |
202-0686
|
90 degree barb 1/4 x 1/4 |
1 |
|
|
7 |
202-5487
|
Hand grip |
2 |
|
|
8 |
202-5489
|
Switch bar |
1 |
|
|
9 |
202-5490
|
Switch spring |
2 |
|
|
10 |
202-5491
|
Micro switch |
1 |
|
|
11 |
202-5492
|
Cord strain relief |
1 |
|
|
12 |
202-5494
|
Switch actuator guide |
1 |
|
|
13 |
202-5502
|
On/off rocker switch |
1 |
|
|
14 |
202-5456
|
Lower handle bar |
1 |
|
|
15 |
202-5457
|
Handle bar coupler |
1 |
|
|
16 |
202-5495
|
Cord wrap |
1 |
|
|
17 |
202-5503
|
Vacuum hose coupler |
1 |
|
|
18 |
202-5504
|
Cover |
1 |
|
|
19 |
202-5505
|
Upper handle bar isolator |
1 |
|
|
20 |
202-5506
|
Vacuum hose coupler |
1 |
|
|
21 |
202-5507
|
Solid handle bar isolator |
1 |
|
|
22 |
202-5497
|
Valve lever |
1 |
|
|
23 |
202-5498
|
Pull rod |
1 |
|
|
24 |
202-0720
|
Serial number plate |
1 |
|
|
25 |
202-0376
|
Hour meter |
1 |
|
|
26 |
202-5499
|
Down pressure control spring |
1 |
|
|
27 |
N/A
|
Not available |
1 |
(Grommet) |
|
28 |
202-5458
|
Pin with wire |
1 |
|
|
29 |
202-5500
|
1/4-20 nylon lock flange |
1 |
|
|
30 |
202-5460
|
3/8-16 nylok flange |
1 |
|
|
31 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
|
32 |
999-1873
|
Bolt 10-32 x 3/4 carriage head stainless steel |
2 |
|
|
33 |
999-1874
|
Washer #10 nylon flat |
5 |
|
|
34 |
999-1875
|
Screw 8-32 x 1/2 hex washer head zinc |
6 |
|
|
35 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
36 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
1 |
|
|
37 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
5 |
|
|
38 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
39 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
40 |
202-2246
|
Hole plug 3/4 |
2 |
|
|
41 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
42 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
43 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
44 |
999-1868
|
Washer 3/8 x 1 1/4 flat stainless steel |
1 |
|
|
45 |
202-2918
|
Screw 1/4-20 x 3/4 self tapping |
2 |
|
|
46 |
999-0520
|
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
|
47a |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
1 |
|
|
47b |
999-1487
|
Screw 10-32 x 5/8 pan head phillips stainless steel |
1 |
|
|
48 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
|
49 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
1 |
|
|
50 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
|
51 |
999-1878
|
Screw 1/4-20 x 3.5 hex cap stainless steel |
1 |
|
|
52 |
202-5501
|
Bushing brass 1/4 x 1/2 inch |
1 |
|
|
53 |
202-5275
|
3/16 inch bushing |
2 |
|
|
54 |
202-3348
|
Rubber grommet |
3 |
|
|
55 |
202-5071
|
O-ring |
1 |
|
|
