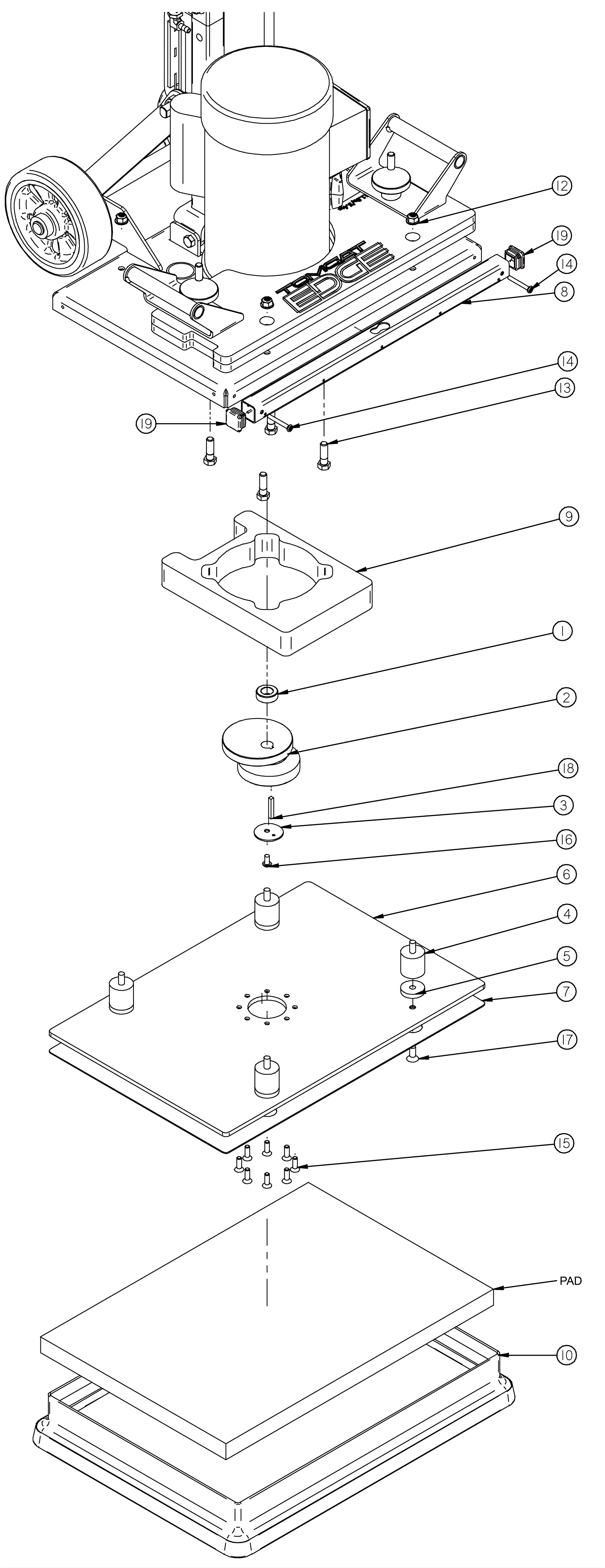

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5467
|
Motor shaft spacer |
1 |
|
|
2 |
202-9587
|
Eccentric kit with hardware and loctite for stick machines |
1 |
|
|
3 |
202-5084
|
Crush washer |
1 |
|
|
4 |
202-5213
|
20 inch isolator kit (pkg of 4) |
1 |
|
|
5 |
202-5085
|
20 and 28 inch spacer |
4 |
|
|
6 |
202-5194
|
20 inch aluminum pad driver |
1 |
|
|
7 |
202-5089
|
Mighty-Lok II grip face pad holder set (brown) |
1 |
|
|
8 |
202-5468
|
20 inch solution feed tube |
1 |
|
|
9 |
202-5469
|
1 1/2 bearing gasket |
1 |
|
|
10 |
202-5470
|
20 inch dust curtain |
1 |
|
|
12 |
202-5459
|
5/16-8 nylok flange |
4 |
|
|
13 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
4 |
|
|
14 |
999-1631
|
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
|
15 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
|
|
16 |
202-3109
|
Screw 1/4 x 5/8 button head socket stainless steel |
1 |
|
|
17 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
4 |
|
|
18 |
202-0140
|
Steering shaft key |
1 |
|
|
19 |
202-5471
|
Square plug |
2 |
|
|
