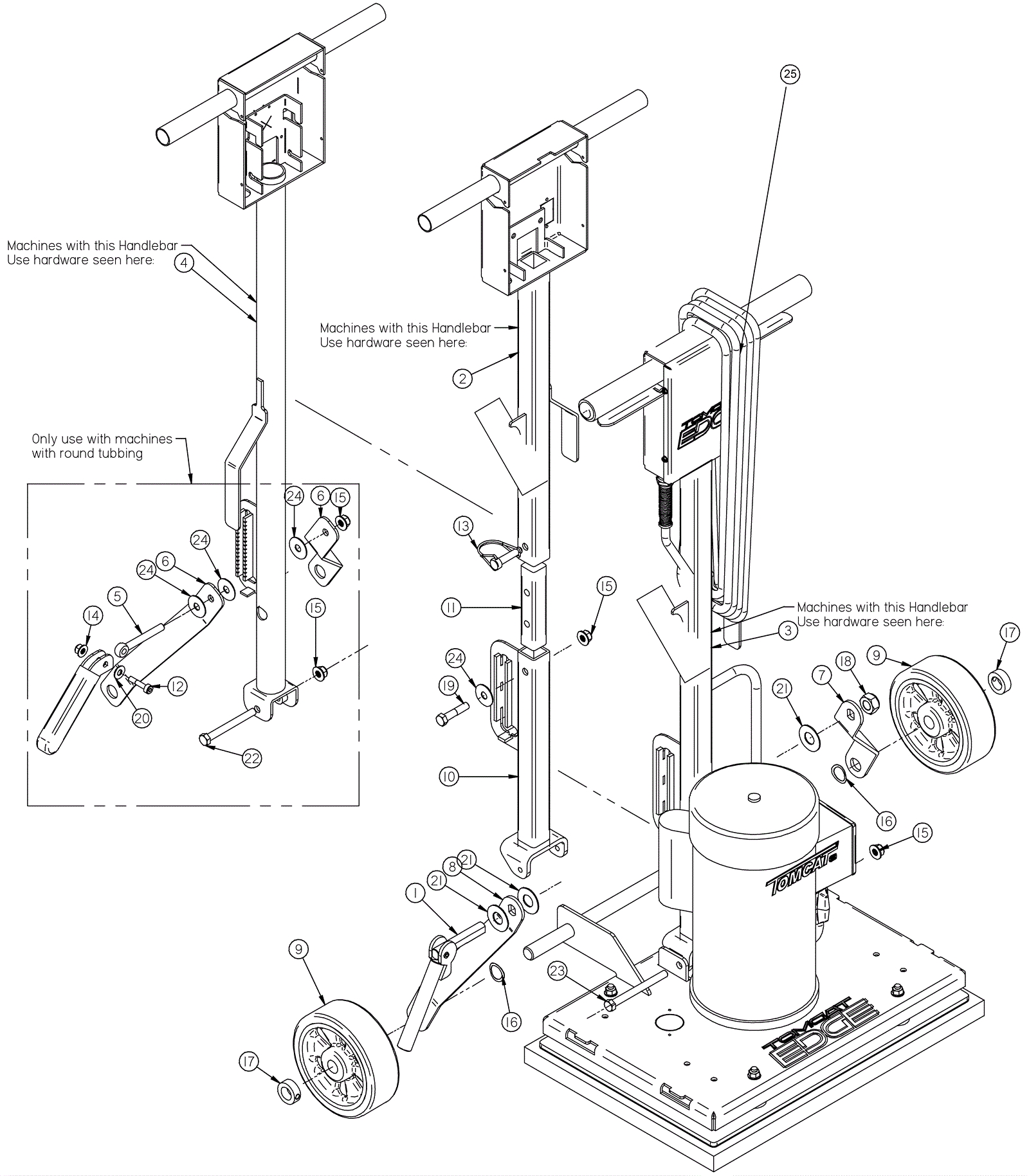

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5449
|
Handle bar clamp |
1 |
|
|
2 |
202-5450
|
Square handle bar (OBSOLETE) |
1 |
|
|
3 |
202-5450
|
Square handle bar (OBSOLETE) |
1 |
|
|
4 |
202-5450
|
Square handle bar (OBSOLETE) |
1 |
|
|
5 |
202-5451
|
Handle lock eye bolt |
1 |
|
|
6 |
202-5452
|
Handle lock stay |
2 |
|
|
7 |
202-5453
|
Left side handle lock stay |
1 |
|
|
8 |
202-5454
|
Right side handle lock stay |
1 |
|
|
9 |
202-5455
|
Wheel |
2 |
|
|
10 |
202-5456
|
Lower handle bar |
1 |
|
|
11 |
202-5457
|
Handle bar coupler |
1 |
|
|
12 |
999-1667
|
Screw 5/16-18 x 1 1/4 socket head stainless steel |
1 |
|
|
13 |
202-5458
|
Pin with wire |
1 |
|
|
14 |
202-5459
|
5/16-8 nylok flange |
1 |
|
|
15 |
202-5460
|
3/8-16 nylok flange |
4 |
|
|
16 |
202-5461
|
Washer 3/4 x 1 wave stainless steel |
2 |
|
|
17 |
202-2216
|
Shaft collar with set screw |
2 |
|
|
18 |
202-2524
|
Nylon 5/8 inch - 11 |
1 |
|
|
19 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
1 |
|
|
20 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
21 |
999-1844
|
Washer 5/8 OD flat stainless steel |
3 |
|
|
22 |
202-3194
|
Bolt 3/8-16 x 4 inch hex head stainless steel |
1 |
|
|
23 |
202-3194
|
Bolt 3/8-16 x 4 inch hex head stainless steel |
1 |
|
|
24 |
999-1868
|
Washer 3/8 x 1 1/4 flat stainless steel |
4 |
|
|
25 |
202-5462
|
50 foot power cord |
1 |
|
|
