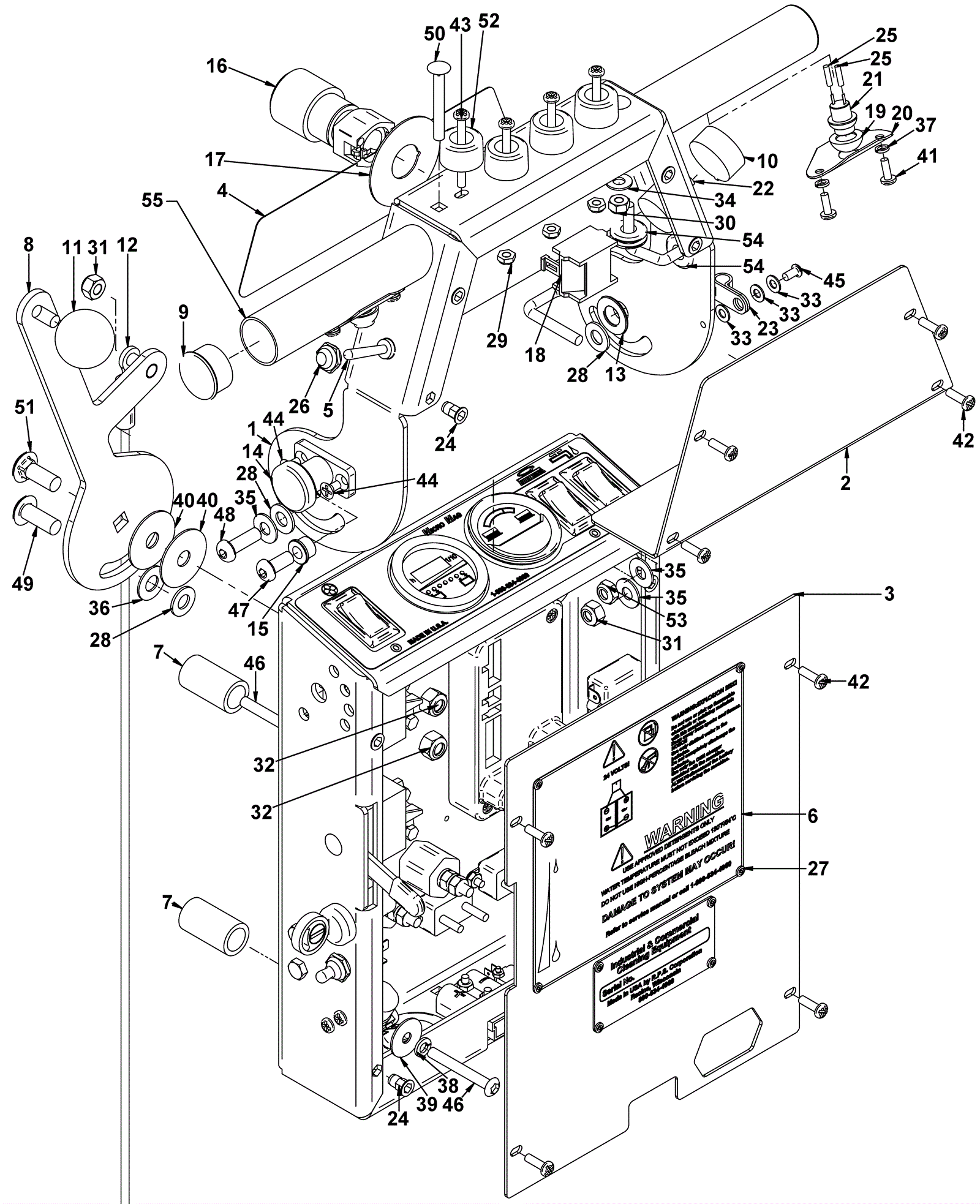

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5392
|
Adjustable handle bar holder |
1 |
|
|
2 |
202-5393
|
Handlebar cover |
1 |
|
|
3 |
202-5394
|
Control panel cover |
1 |
|
|
4 |
202-5395
|
Traction decal |
1 |
|
|
5 |
202-5396
|
Toggle switch |
1 |
|
|
6a |
202-5397
|
24V battery warning plate |
1 |
(The warning plate has changed - You now need to order this and 202-0675.) |
|
6b |
202-0675
|
Detergent warning plate |
1 |
|
|
7 |
202-3468
|
Spacer |
4 |
|
|
8 |
202-4164
|
Squeegee lifting lever |
1 |
|
|
9 |
202-2252
|
End cap |
1 |
|
|
10 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
11 |
202-0515
|
Solution flow control knob |
1 |
|
|
12 |
202-5398
|
Squeegee lift cable |
1 |
|
|
13 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
14 |
202-0719
|
Index plunger |
1 |
|
|
15 |
202-3312
|
Flanged bearing |
2 |
|
|
16 |
202-0826
|
Emergency shut-off switch |
1 |
|
|
17 |
202-0827
|
Emergency legend plate |
1 |
|
|
18 |
202-0825
|
Emergency contact |
1 |
|
|
19 |
202-3427
|
Button cover |
2 |
|
|
20 |
202-0869
|
Switch cover |
2 |
|
|
21 |
202-0879
|
Push button switch |
2 |
|
|
22 |
202-0535
|
Speed control potentiometer |
1 |
|
|
23 |
202-2431
|
P clamp |
1 |
|
|
24 |
202-2589
|
Nut 10-32 crimp hex |
8 |
|
|
25 |
202-2254
|
Heat shrink |
4 |
|
|
26 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
27 |
202-3315
|
Blind rivet |
8 |
|
|
28 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
5 |
|
|
29 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
30 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
31 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
32 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
33 |
999-0998
|
Washer #10 flat stainless steel |
3 |
|
|
34 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
35 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
36 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
37 |
999-0150
|
Washer #8 medium split lock |
4 |
|
|
38 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
39 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
1 |
|
|
40 |
999-1446
|
Washer 3/8 x 1 1/2 fender stainless steel |
2 |
|
|
41 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
42a |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
5 |
|
|
42b |
999-1487
|
Screw 10-32 x 5/8 pan head phillips stainless steel |
5 |
|
|
43 |
999-1818
|
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
|
44 |
999-1509
|
Screw 10-32 x 3/8 flat head phillips stainless steel |
2 |
|
|
45 |
202-3197
|
Screw 10-32 x 3/8 inch button head socket stainless steel |
1 |
|
|
46 |
999-1852
|
Screw 1/4-20 x 2 button head socket stainless steel |
4 |
|
|
47 |
202-2372
|
Bolt 5/16-18 x 3/4 inch button head socket cap |
2 |
|
|
48 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
|
49 |
999-1003
|
Bolt 3/8-16 x 1 button head socket cap stainless steel |
14 |
|
|
50 |
999-0605
|
Screw 1/4-20 x 2 carriage head stainless steel |
2 |
|
|
51 |
202-2832
|
Bolt 3/8 - 16 x 1 carriage head stainless steel |
1 |
|
|
52 |
202-3275
|
Rubber bumper |
4 |
|
|
53 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
2 |
|
|
54 |
202-3348
|
Rubber grommet |
2 |
|
|
55a |
202-5447
|
Dual button handle bar |
1 |
(traction driven) |
|
55b |
202-5997
|
Handlebar, Single Button |
1 |
(pad driven) |
|
